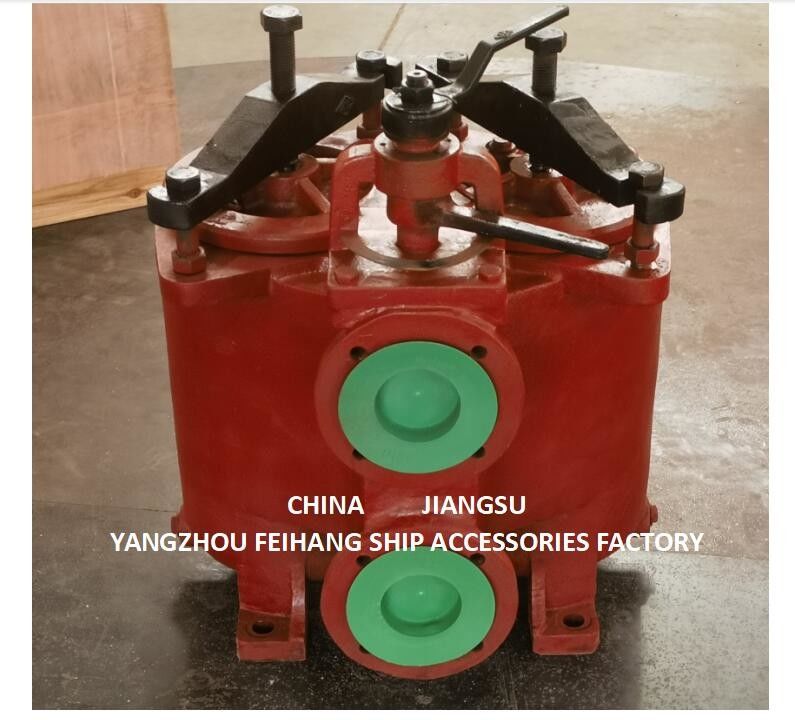

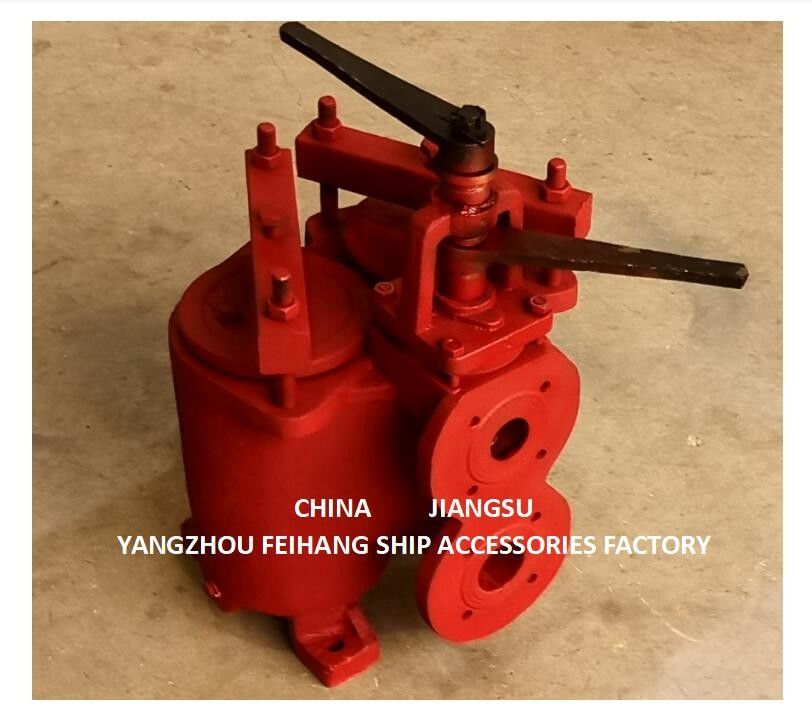

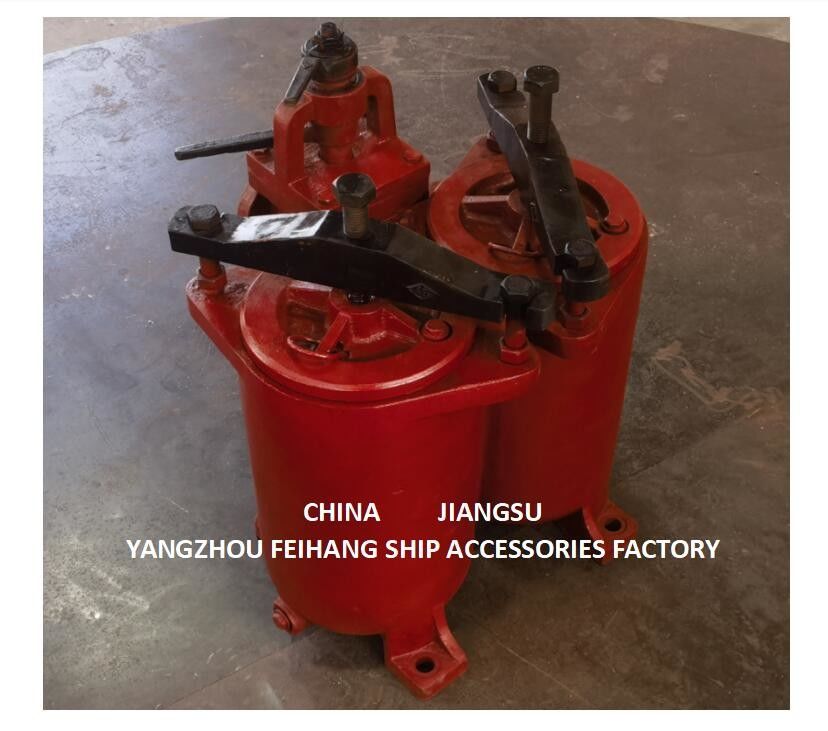

Product Description For Duplex Oil Strainer(U-TYPE) JIS 5K-25-100A:

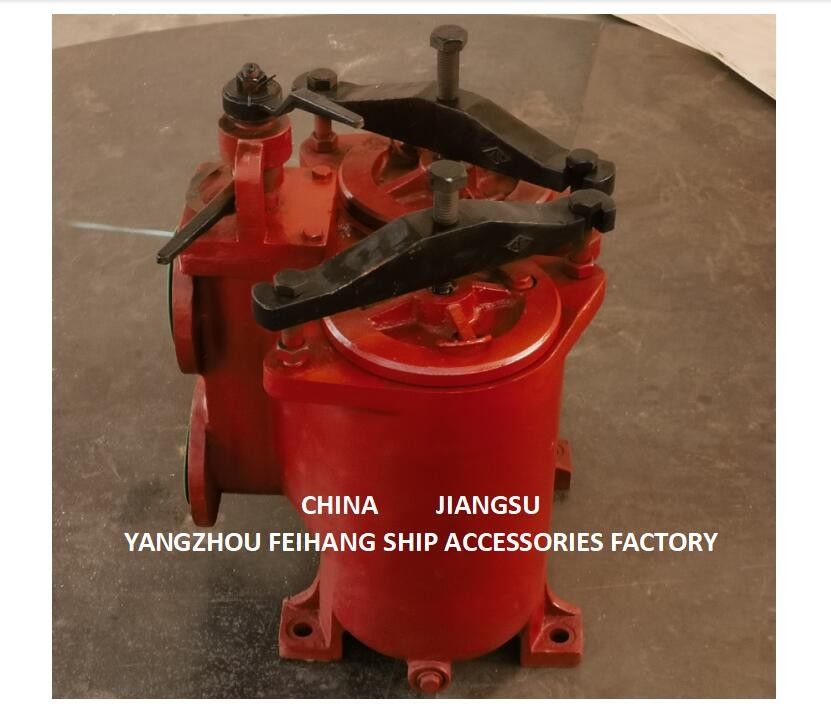

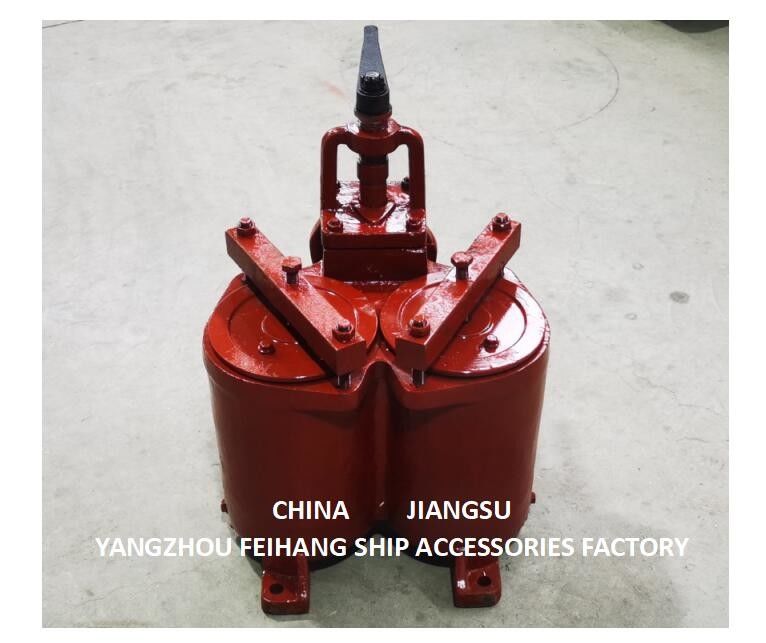

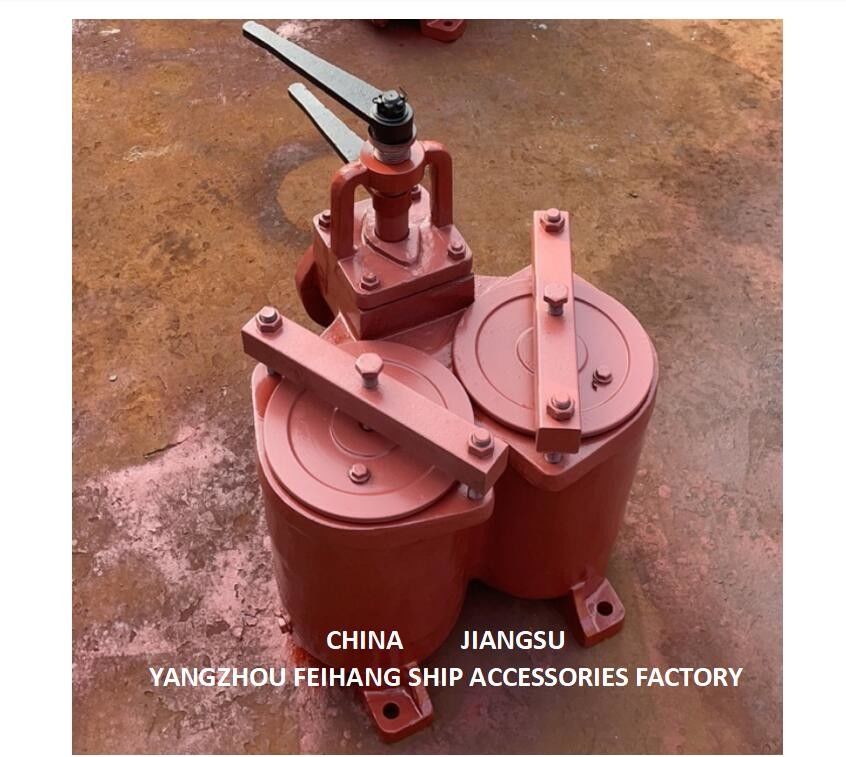

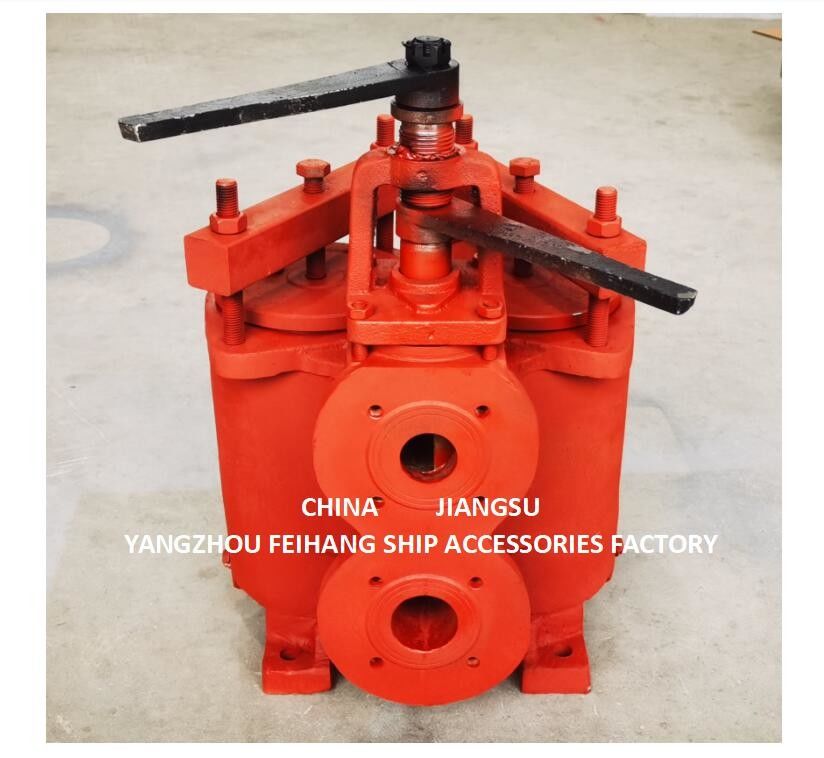

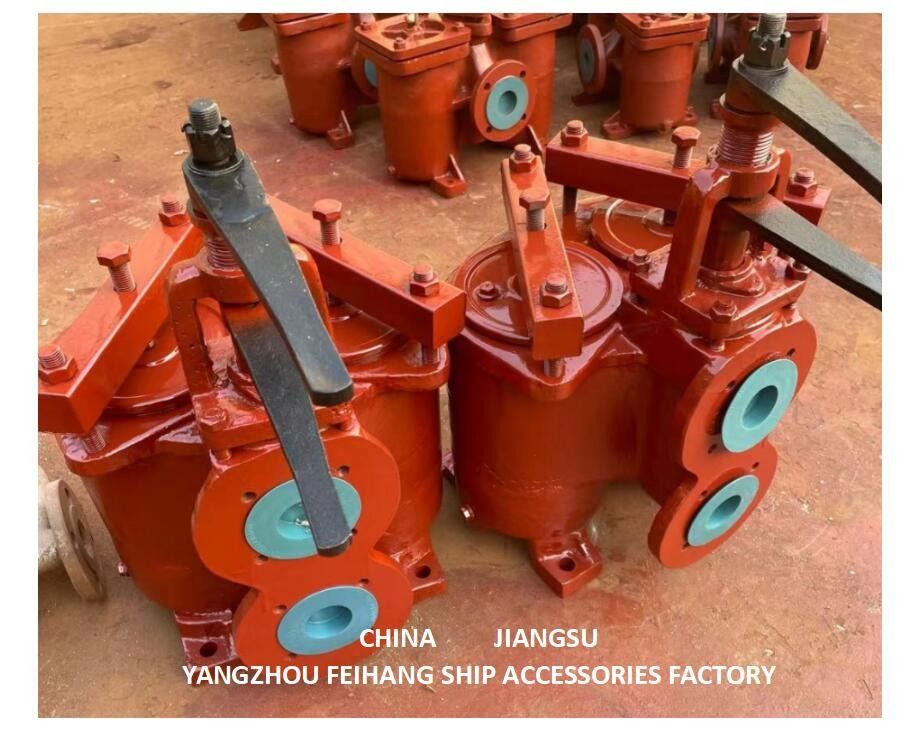

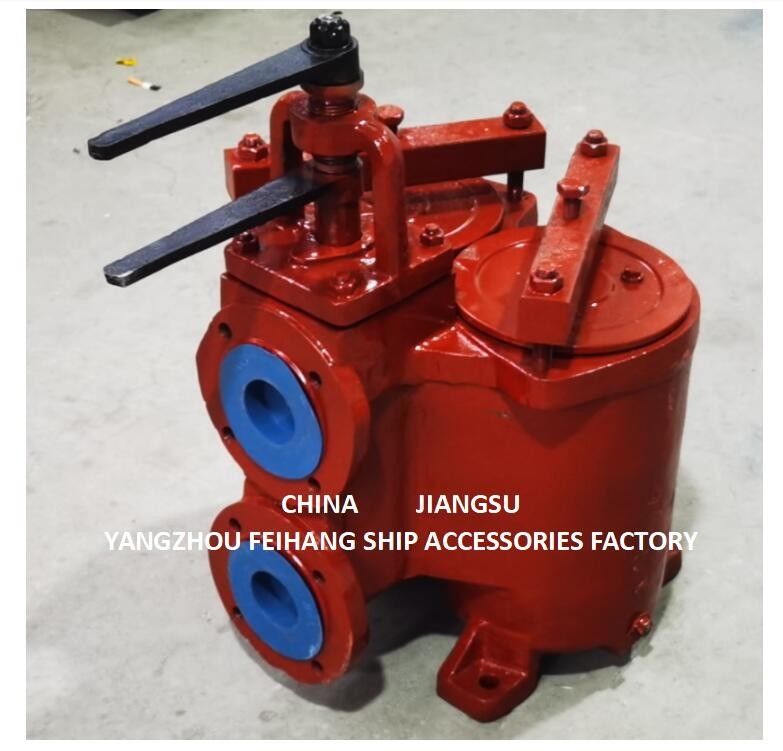

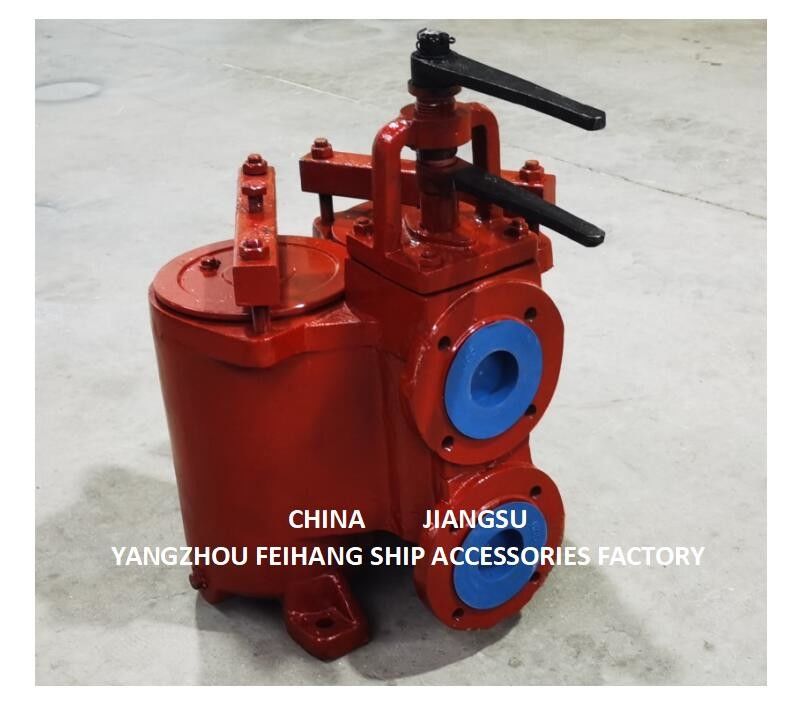

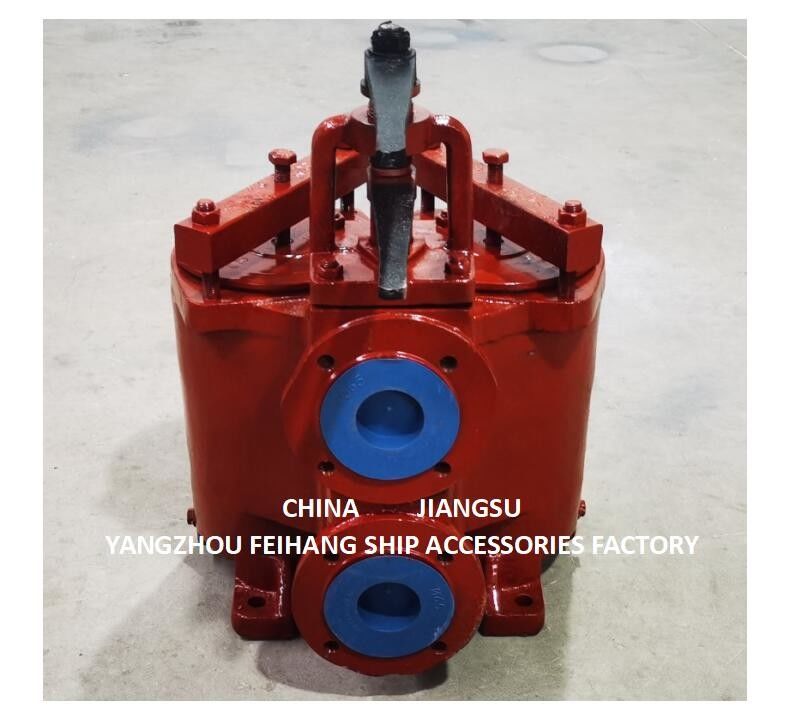

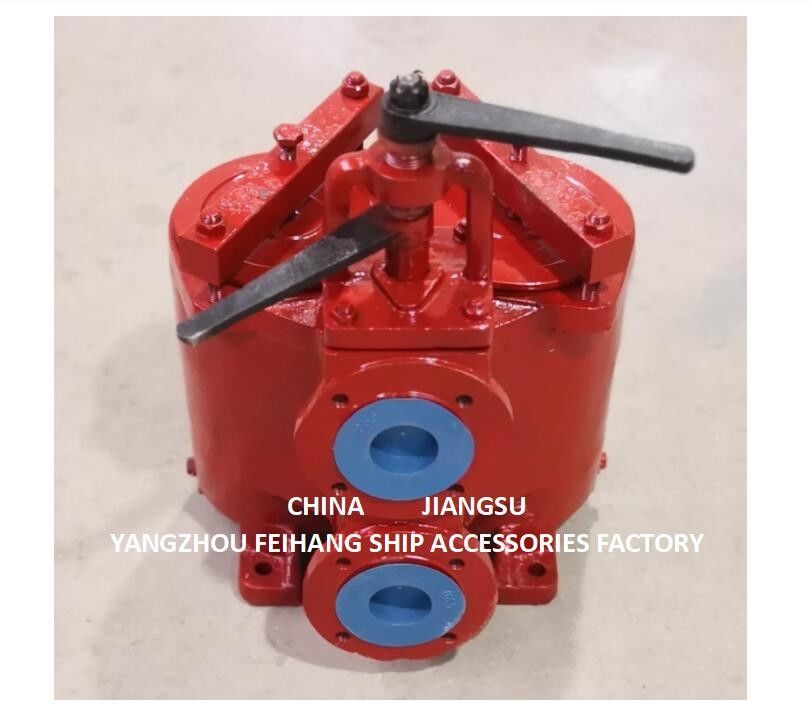

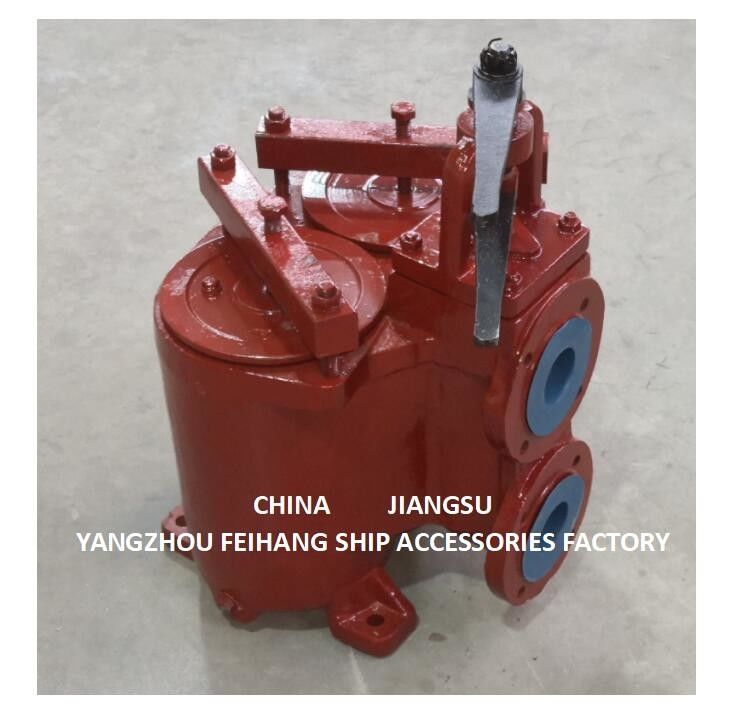

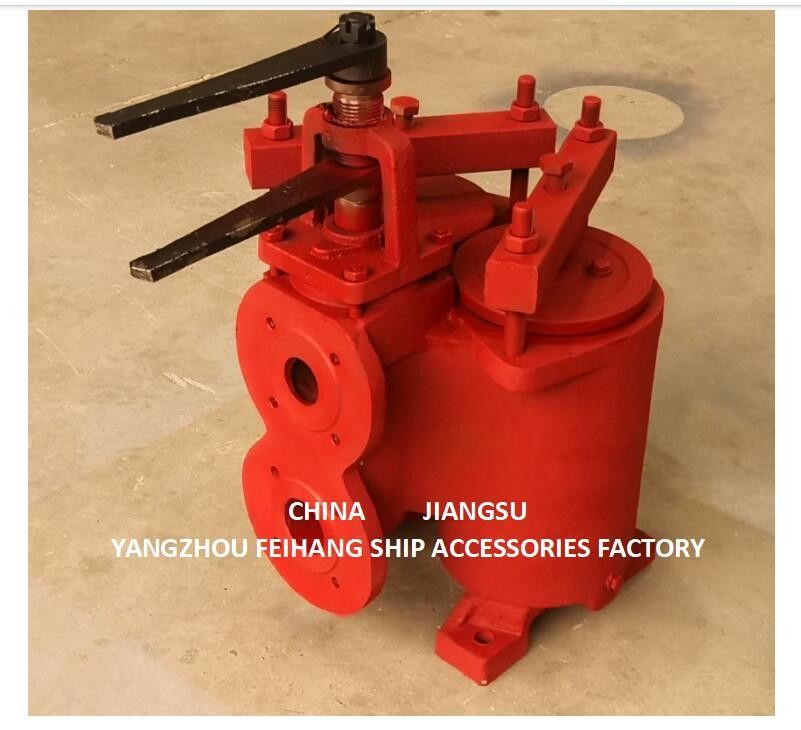

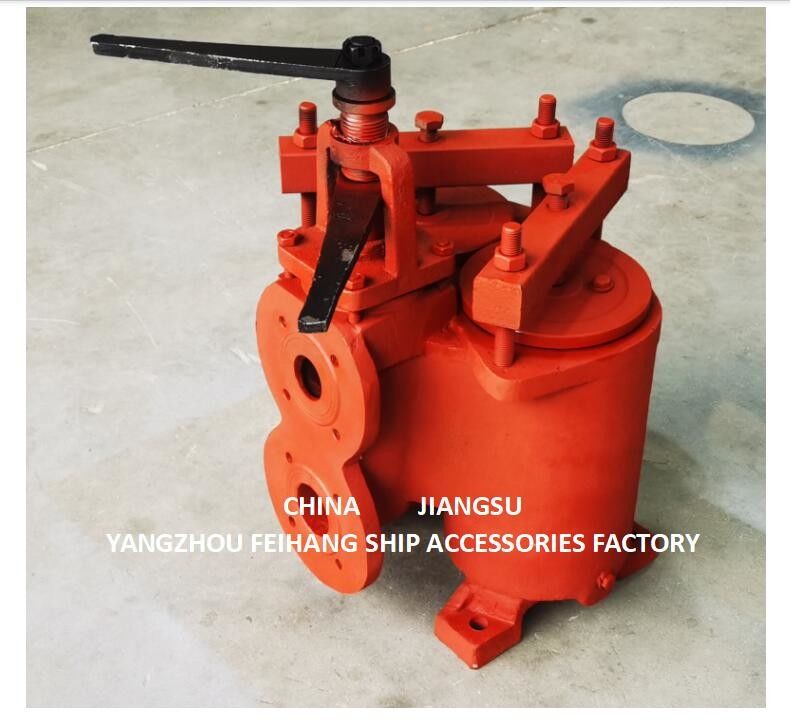

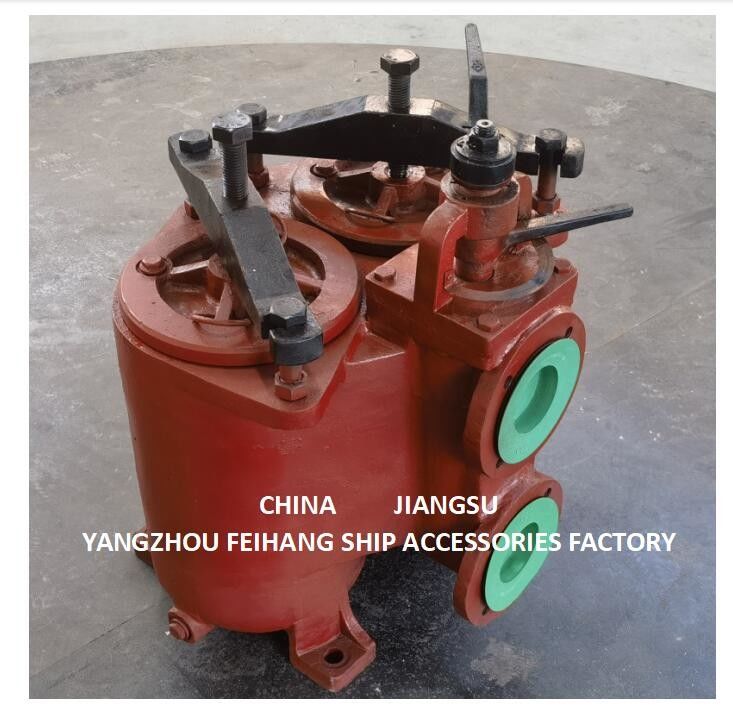

DUPLEX OIL STRAINER(U-TYPE) 5K-25-100A:
Duplex filters are a valuable solution for applications where continuous fluid filtration is essential, and uninterrupted operation is crucial. They provide a balance between efficient filtration and minimal downtime by allowing for on-the-fly switching between two filter housings. This design ensures that the system remains operational even during maintenance or replacement of filter elements.
Features For Duplex Oil Strainer(U-TYPE) JIS 5K-25-100A:
- Product Name: Duplex Oil Strainer
- Filter Material: Stainless Steel
- Pressure Range: 0.5MPa
- Temperature Range: ≤200℃

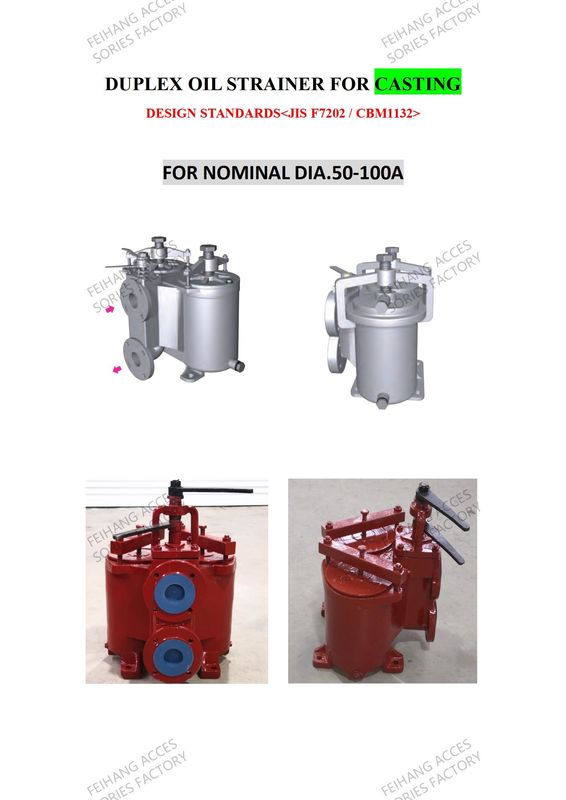

- Design Standards: JIS 7202 /CBM1132
- Connection Type: Flanged
Product Features:
- - DUPLEX OIL STRAINER ensures efficient and thorough filtering of oil.
- - Made with durable and high-quality STAINLESS STEEL material, ensuring long-lasting use.
- - Can withstand a HIGH PRESSURE RANGE of up to 0.5MPa.
- - Suitable for use in high temperature environments, with a maximum temperature range of ≤200℃.
- - Designed and manufactured according to JIS 7202 /CBM1132 standards, ensuring quality and reliability.
- - Features a FLANGE CONNECTION type, making it easy to install and remove.
- - Ideal for use as a DUAL FUEL FILTER, providing an extra layer of protection for your equipment.

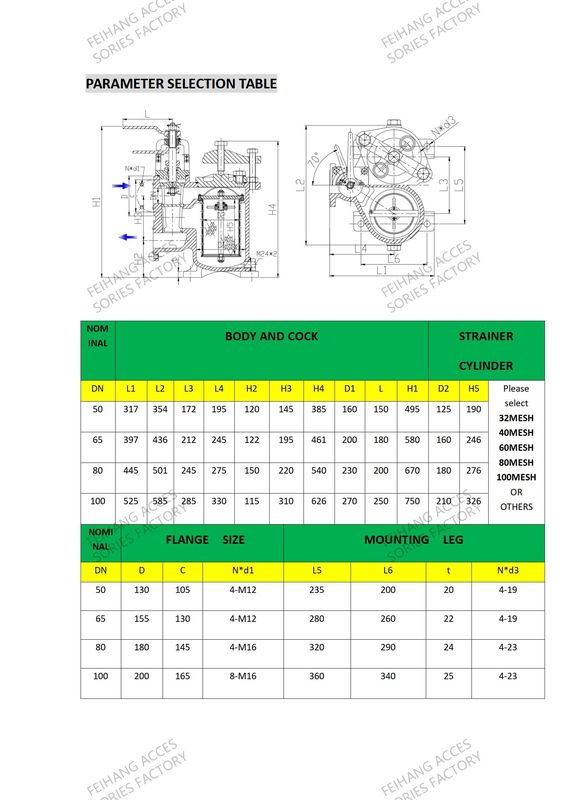

Technical Parameters For Duplex Oil Strainer(U-TYPE) JIS 5K-25-100A:
Technical Agreement for Small Dual Oil Filters
The following technical requirements must be met for small dual oil filters:
1. Filter Screen Area Ratio
The ratio of the through-hole area of the filter screen to the nominal cross-sectional area of the small dual oil filter shall not be less than 12.
2. Water Pressure Inspection
The water pressure inspection of small dual oil filters should meet the following requirements:
2.1 Strength and Material Tightness Test
The body and cover shall be subjected to a strength and material tightness test with a pressure of PS=7kgf/cm2 for a duration of 3 minutes. No leakage shall occur during the test. If the water pressure remains unchanged, the test shall be considered qualified.
2.2 Sealing Test
After the small dual oil filter is assembled, rotate the control plug to close the channel on either side of the body. Conduct a sealing test at Pm=4kgf/cm2. Check the sealing surface in contact with the plug core and the body for 1 minute. If the leakage amount is within the allowable range, the test is considered qualified (the leakage amount can be calculated as 6ml * nominal diameter/25). Then repeat the test on the other side of the body without installing a filter cartridge.
3. Flange Connection
The flange connection of the small dual oil filter shall comply with CBM1005-81.
4. Other Technical Requirements
Any other technical requirements for small dual oil filters must comply with GB600-82.
Applications For Duplex Oil Strainer(U-TYPE) JIS 5K-25-100A:
FEIHANG Duplex Oil Strainer FH-type
The FEIHANG Duplex Oil Strainer FH-type is a high-quality product designed and manufactured by FEIHANG, a renowned brand in the oil filtration industry. With its advanced technology and superior quality, this product is widely used in a variety of applications and scenarios.
Brand Name: FEIHANG
FEIHANG is a well-known brand in the oil filtration industry, trusted by customers worldwide for its high-quality products and excellent services.
Customization For Duplex Oil Strainer(U-TYPE) JIS 5K-25-100A:
Duplex Oil Strainer - Customized Service
Product Overview
Brand Name: FEIHANG
Model Number: FH-type
Place of Origin: Yangzhou, Jiangsu, China
Certification: Factory certificate, test report, material report
Minimum Order Quantity: 1pcs
Price: Discuss personally
Packaging Details: Export packaging
Delivery Time: 5days
Payment Terms: 100% prepaid
Supply Ability: 100pcs/days
Temperature Range: ≤200℃
Product Name: Duplex Oil Strainer
Product Description
The Duplex Oil Strainer is a high-quality filtration solution designed for industrial use. It is a dual filter system that can effectively remove impurities and contaminants from various types of oil, including crude oil, fuel oil, lubricating oil, and heavy oil.
The strainer is made of durable stainless steel and can withstand temperatures of up to 200℃. It is suitable for use in a wide range of industries such as petroleum, chemical, and power generation.
The dual filter design allows for continuous operation, as one filter can be cleaned or replaced while the other one is still functioning. This ensures minimal downtime and maximum efficiency.
Key Features
- Brand Name: FEIHANG
- Model Number: FH-type
- Place of Origin: Yangzhou, Jiangsu, China
- Certification: Factory certificate, test report, material report
- Minimum Order Quantity: 1pcs
- Price: Discuss personally
- Packaging Details: Export packaging
- Delivery Time: 5days
- Payment Terms: 100% prepaid
- Supply Ability: 100pcs/days
- Temperature Range: ≤200℃
- Pressure Range: 0.5MPa
- Mesh: According To Customer Requirements
- Filter Material: Stainless Steel
Customization Options
The Duplex Oil Strainer can be customized according to customer requirements, including the mesh size, pressure range, and filter material. This allows for a tailored solution that meets the specific needs of each client.
Benefits of Our Customized Service
- High-quality and durable product
- Flexible customization options
- Efficient and continuous operation
- Expert technical support
- Competitive pricing
Contact Us
For more information about our customized Duplex Oil Strainer, please feel free to contact us. Our team of experts will be happy to assist you with your filtration needs.

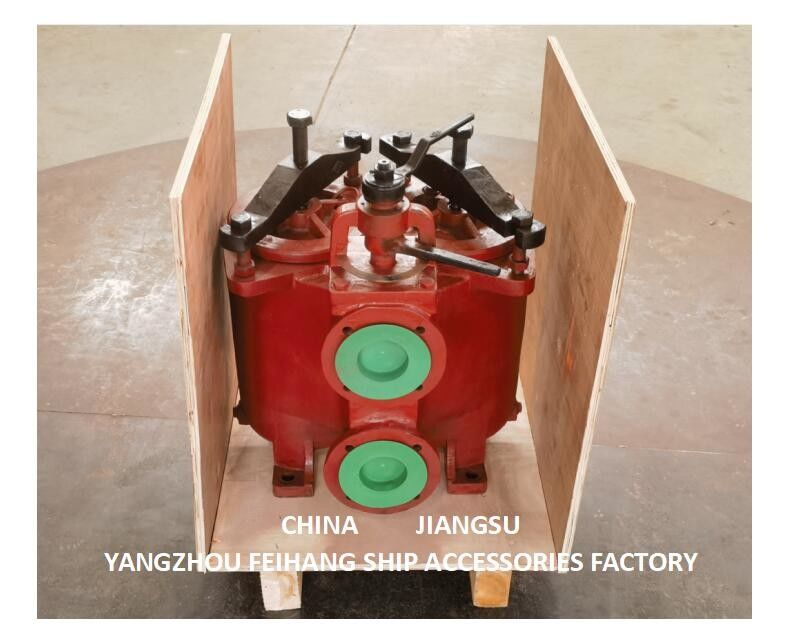

The Duplex Oil Strainer will be carefully packaged to ensure safe delivery to our customers. The packaging will consist of:
Once the order has been shipped, customers will receive a tracking number to track their package until it reaches its destination. Our company takes great care in packaging and shipping our products to ensure they arrive in perfect condition.
