Fuel Separator Outlet Low-Pressure Double Oil Filter AS4065-0.40/0.22 CB/T425-94 Duplex Oil Filters

Fuel Separator Outlet Low-Pressure Double Oil Filter AS4065-0.40/0.22 CB/T425-94 Duplex Oil Filters

Place of Origin:

Yangzhou, Jiangsu, China

Brand Name:

FEIHANG

Certification:

Factory certificate, test report, material report

Model Number:

A,AS-type

Contact Us

Request A Quote
Product Details
DESIGN STANDARDS:
CB/T425
Type:
A,AS-Straight Through Type
NOMINAL PRESSURE:
0.4Mpa
NOMINAL DIAMETER:
3"-DN65
Design Pressure:
0.75Mpa
Body Material:
Cast Iron
Filter Area:
0.2-2.5m2/h
Surface Treatment:
Paint
Filter Material:
SUS304/SUS316
Filtration:
20-200mesh
Filter Element:
Stainless Steel Wire Mesh
Connection Type:
Flanged
Style:
Twin Cylinder
Manipulation Method:
Handle
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Discuss personally
Packaging Details
Export packaging
Delivery Time
1-2days
Payment Terms
100% prepaid
Supply Ability
100pcs/days
Product Description

Low Pressure Crude Oil Filter, Dual Low Pressure Crude Oil Filter AS65-0.25/0.16 CB/T425-1994

Product Description For Duplex Oil Filter:

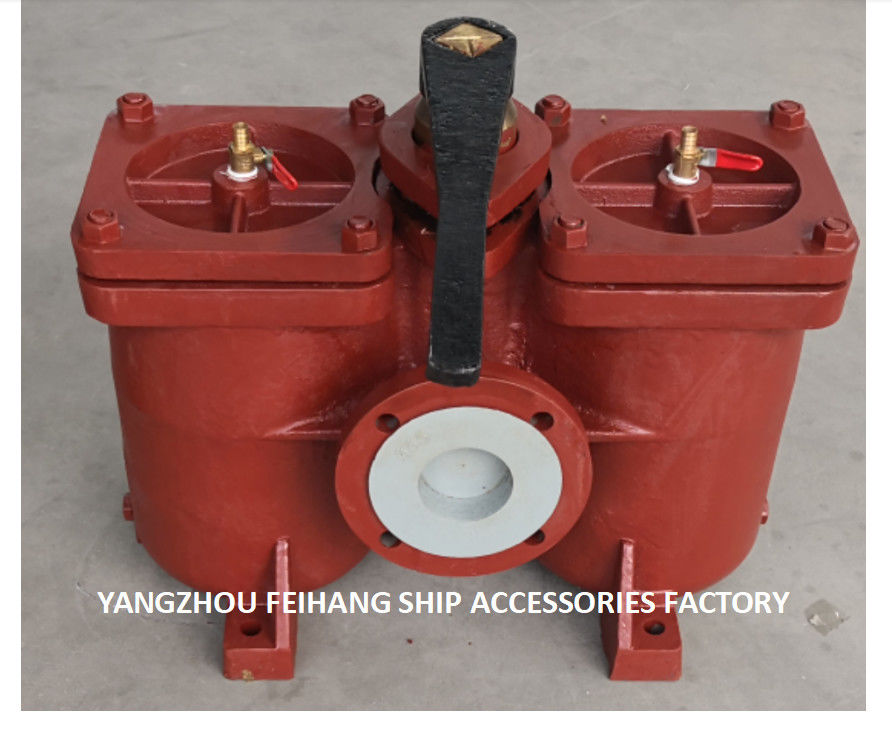

Fuel Separator Outlet Low-Pressure Double Oil Filter AS4065-0.40/0.22 CB/T425-94 Duplex Oil Filters 0



A dual low-pressure crude oil filter, also known as a dual switchable filter, is a kind of filter composed of two filter barrels which could be connected in parallel or in series. It is equipped with a valve core that could be controlled through a handle to realize two different modes of operation.

Firstly, two filter cartridges can be used interchangeably to replace filter element without stopping the machine. During the switch process, the other filter cartridge would still remain in operation. Secondly, both filter cartridges, depending on the operation demand, can work at the same time. This can provide continuous operation of the filter without the need to ever switch off, even for 24 hours.



Technical Parameters For Duplex Oil Filter:

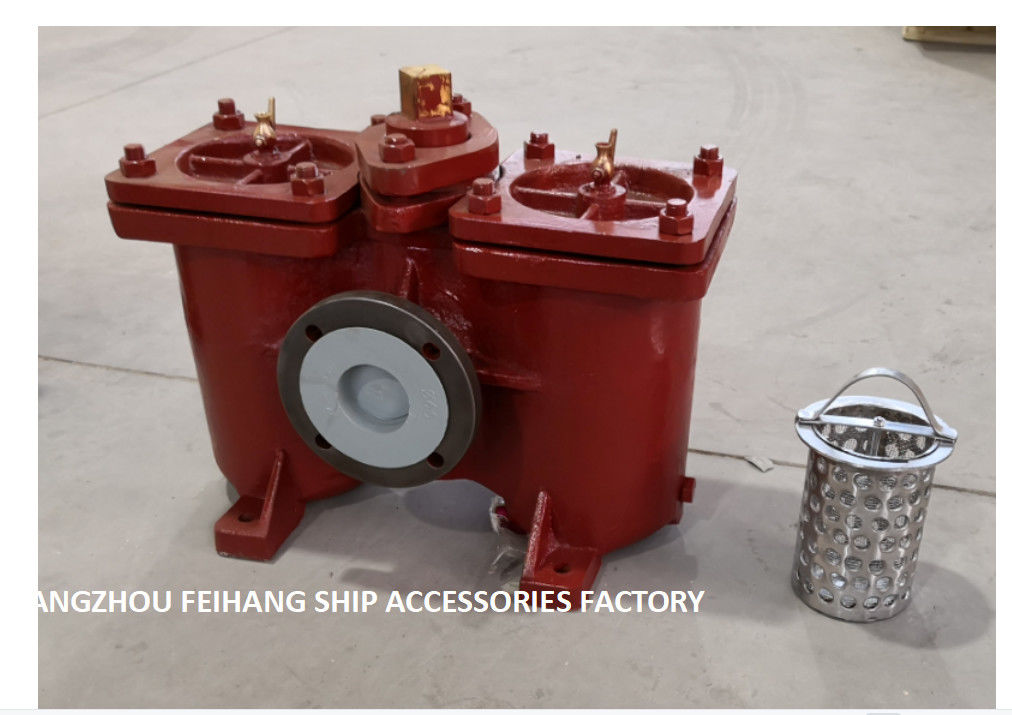

Fuel Separator Outlet Low-Pressure Double Oil Filter AS4065-0.40/0.22 CB/T425-94 Duplex Oil Filters 1

Parameter Value
Pressure Range 0.4MPa
Style Twin Cylinder
Connection Type Flanged
Sealing Material Silicone, Viton, PTFE
Surface Treatment Paint
Design Standards CB/T425-1994
Body Material Cast Iron, Carbon Steel, Stainless Steel
Size DN20-DN200
Filter Element Mesh 20-200mesh
Filter Element Stainless Steel Wire Mesh


Applications For Duplex Oil Strainer:

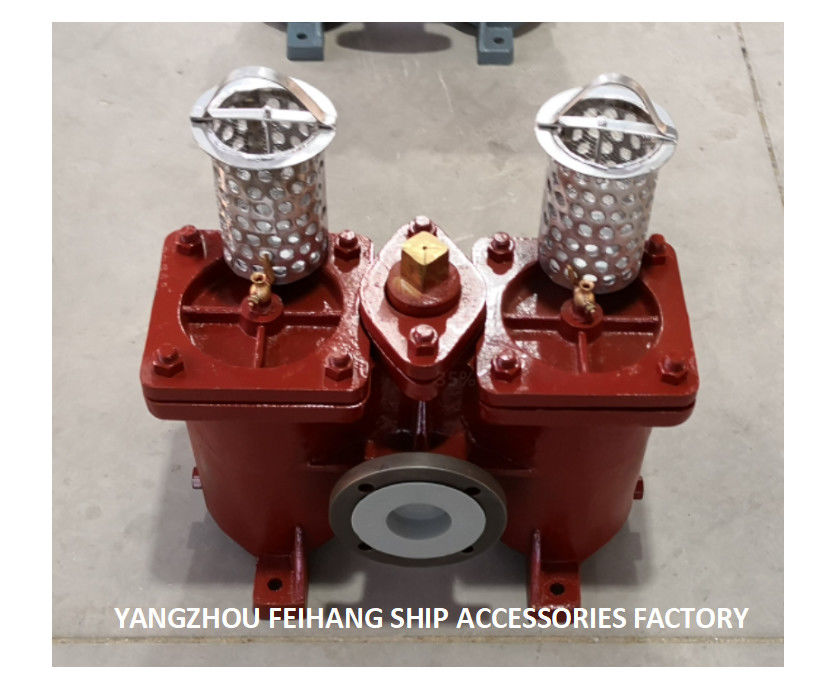

Fuel Separator Outlet Low-Pressure Double Oil Filter AS4065-0.40/0.22 CB/T425-94 Duplex Oil Filters 2

FEIHANG DOUBLE OIL STRAINER is a dual fuel filter, specifically designed for crude oil filtration. It is originated from Yangzhou, Jiangsu, China, and produced in a factory that is certified with a factory certificate, test report and material report. Its minimum order quantity is 1pcs, and the packaging is designed for export. The delivery time is 1-2 days, and the payment terms is 100% prepaid. The supply ability is 100pcs/days. This double oil strainer comes with a size range of DN20-DN200, with a flanged connection. The flow capacity is 1-1000m3/h, and the pressure range is 0.4MPa. The filter element mesh is 20-200mesh. The price is to be discussed personally.



Customization For Duplex Oil Strainer:

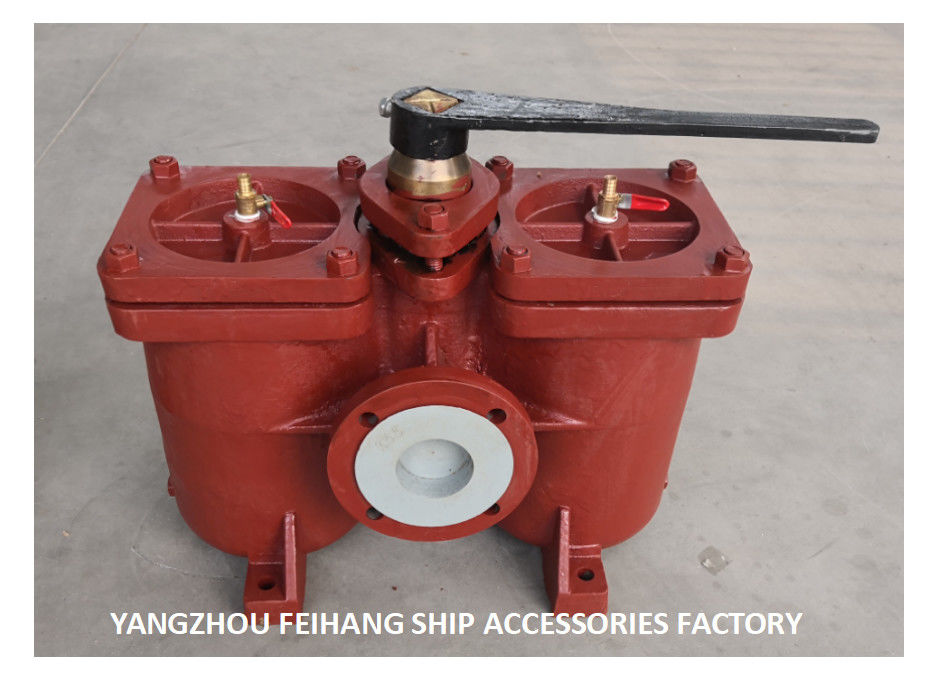

Fuel Separator Outlet Low-Pressure Double Oil Filter AS4065-0.40/0.22 CB/T425-94 Duplex Oil Filters 3

Duplex Oil Strainer

  • Brand Name: FEIHANG
  • Model Number: A,AS-type
  • Place of Origin: Yangzhou, Jiangsu, China
  • Certification: Factory certificate, test report, material report
  • Minimum Order Quantity: 1pcs
  • Price: Discuss personally
  • Packaging Details: Export packaging
  • Delivery Time: 1-2days
  • Payment Terms: 100% prepaid
  • Supply Ability: 100pcs/days
  • Body Material: Cast Iron, Carbon Steel,Stainless Steel
  • Flow Capacity: 1-1000m3/h
  • Design standards: CB/T425-1994
  • Size: DN20-DN200
  • Filter Area: 0.2-2.5m2/h
  • Keywords: Dual crude oil filter, Dual crude oil filter, DOUBLE OIL FILTERS, Dual oil filter, Dual oil filter, Dual crude oil filter








According to the ship standard CB/T425-1994, low-pressure crude oil filters

Fuel Separator Outlet Low-Pressure Double Oil Filter AS4065-0.40/0.22 CB/T425-94 Duplex Oil Filters 4

Type A indicates that the flange size of this dual fuel filter is in accordance with GB569

The AS type indicates that the flange size of this dual fuel filter is in accordance with GB2506



0.4-0.22 and 0.25-0.16 respectively represent their filtering accuracy

Fuel Separator Outlet Low-Pressure Double Oil Filter AS4065-0.40/0.22 CB/T425-94 Duplex Oil Filters 5



Except for the above two differences, the others are identical:

Flange to flange cross-sectional distance L-195mm for DN25 dual low-pressure crude oil filter

The Centre-to-centre distance of horizontal anchor installation is 165mm, and the Centre-to-centre distance of anchor installation is 145mm

According to the hole size, the anchor is 4 holes * 11mm.



Support and Services For Duplex Oil Strainer:



At Duplex Oil Strainer, we take technical support and service seriously. We strive to provide the highest level of technical assistance and service to our customers.

Our technical support team is available 24/7 to help answer any questions, troubleshoot any issues, and provide technical advice on the use of our products. We also offer a toll-free number to assist customers in the United States and Canada.

In addition, we offer a comprehensive warranty on our Duplex Oil Strainer products to ensure that our customers receive the highest quality product. Our warranty covers defects in materials and workmanship and covers parts and labor for the lifetime of the product.

If you have any questions or need assistance with your Duplex Oil Strainer product, please don’t hesitate to contact our technical support team.



Packing and Shipping For Duplex Oil Strainer:



Duplex Oil Strainer Packaging and Shipping

The product will be packaged in a box to ensure that it is safe during transport.

Shipping will be done via an insured air freight carrier with tracking capabilities. The carrier will be chosen based on the shipping destination and cost.

It is important to handle the product with care during transport, as the Duplex Oil Strainer is a delicate piece of equipment.



How To Order For Duplex Oil Strainers and Doublt Oil Filters

DOUBLE OIL STRAINERS.pdf

FAQ For Duplex Oil Strainer:



Q: What is the Brand Name of this Duplex Oil Strainer?
A: The Brand Name is FEIHANG.
Q: What is the Model Number of this Duplex Oil Strainer?
A: The Model Number is A,AS-type.
Q: Where is the Place of Origin of this Duplex Oil Strainer?
A: The Place of Origin is Yangzhou, Jiangsu, China.
Q: What Certifications does this Duplex Oil Strainer have?
A: This Duplex Oil Strainer has Factory certificate, test report, material report.
Q: What is the Minimum Order Quantity of this Duplex Oil Strainer?
A: The Minimum Order Quantity is 1pcs.
