Low Pressure Crude Oil Filter, Dual Low Pressure Crude Oil Filter AS25-0.25/0.16 CB/T425-1994
A dual low-pressure crude oil filter, also known as a dual switchable filter, is a kind of filter composed of two filter barrels which could be connected in parallel or in series. It is equipped with a valve core that could be controlled through a handle to realize two different modes of operation.
Firstly, two filter cartridges can be used interchangeably to replace filter element without stopping the machine. During the switch process, the other filter cartridge would still remain in operation. Secondly, both filter cartridges, depending on the operation demand, can work at the same time. This can provide continuous operation of the filter without the need to ever switch off, even for 24 hours.
Parameter | Value |
---|---|
Pressure Range | 0.4MPa |
Style | Twin Cylinder |
Connection Type | Flanged |
Sealing Material | Silicone, Viton, PTFE |
Surface Treatment | Paint |
Design Standards | CB/T425-1994 |
Body Material | Cast Iron, Carbon Steel, Stainless Steel |
Size | DN20-DN200 |
Filter Element Mesh | 20-200mesh |
Filter Element | Stainless Steel Wire Mesh |
FEIHANG DOUBLE OIL STRAINER is a dual fuel filter, specifically designed for crude oil filtration. It is originated from Yangzhou, Jiangsu, China, and produced in a factory that is certified with a factory certificate, test report and material report. Its minimum order quantity is 1pcs, and the packaging is designed for export. The delivery time is 1-2 days, and the payment terms is 100% prepaid. The supply ability is 100pcs/days. This double oil strainer comes with a size range of DN20-DN200, with a flanged connection. The flow capacity is 1-1000m3/h, and the pressure range is 0.4MPa. The filter element mesh is 20-200mesh. The price is to be discussed personally.
Type A indicates that the flange size of this dual fuel filter is in accordance with GB569
The AS type indicates that the flange size of this dual fuel filter is in accordance with GB2506

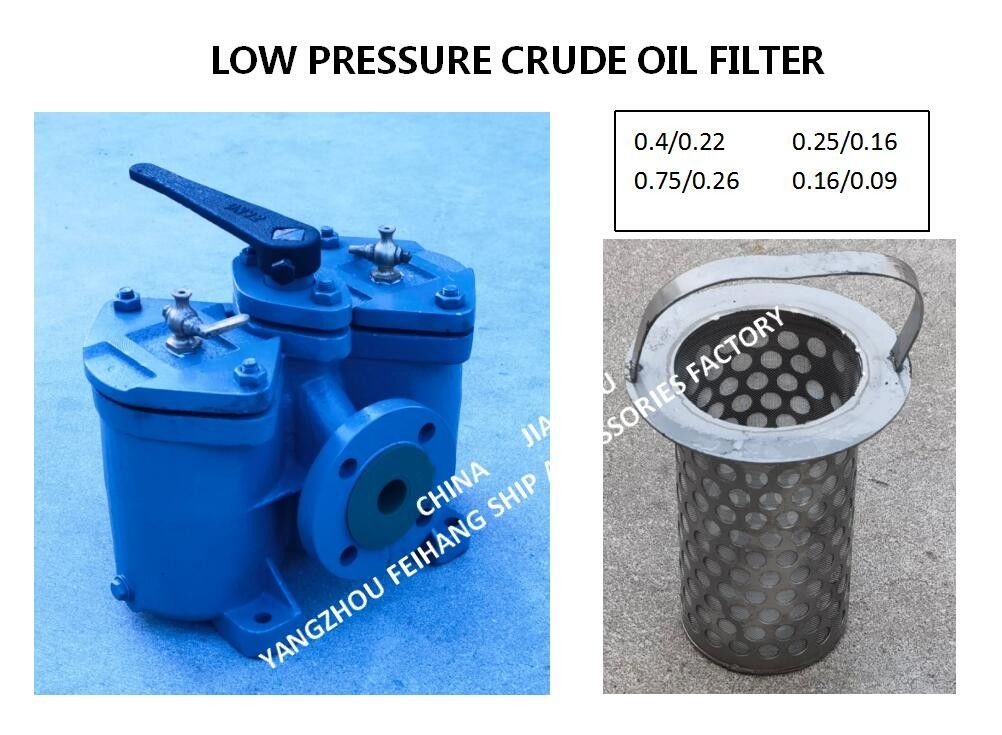

0.4-0.22 and 0.25-0.16 respectively represent their filtering accuracy
Except for the above two differences, the others are identical:
Flange to flange cross-sectional distance L-195mm for DN25 dual low-pressure crude oil filter
The Centre-to-centre distance of horizontal anchor installation is 165mm, and the Centre-to-centre distance of anchor installation is 145mm
According to the hole size, the anchor is 4 holes * 11mm.
At Duplex Oil Strainer, we take technical support and service seriously. We strive to provide the highest level of technical assistance and service to our customers.
Our technical support team is available 24/7 to help answer any questions, troubleshoot any issues, and provide technical advice on the use of our products. We also offer a toll-free number to assist customers in the United States and Canada.
In addition, we offer a comprehensive warranty on our Duplex Oil Strainer products to ensure that our customers receive the highest quality product. Our warranty covers defects in materials and workmanship and covers parts and labor for the lifetime of the product.
If you have any questions or need assistance with your Duplex Oil Strainer product, please don’t hesitate to contact our technical support team.
Duplex Oil Strainer Packaging and Shipping
The product will be packaged in a box to ensure that it is safe during transport.
Shipping will be done via an insured air freight carrier with tracking capabilities. The carrier will be chosen based on the shipping destination and cost.
It is important to handle the product with care during transport, as the Duplex Oil Strainer is a delicate piece of equipment.
