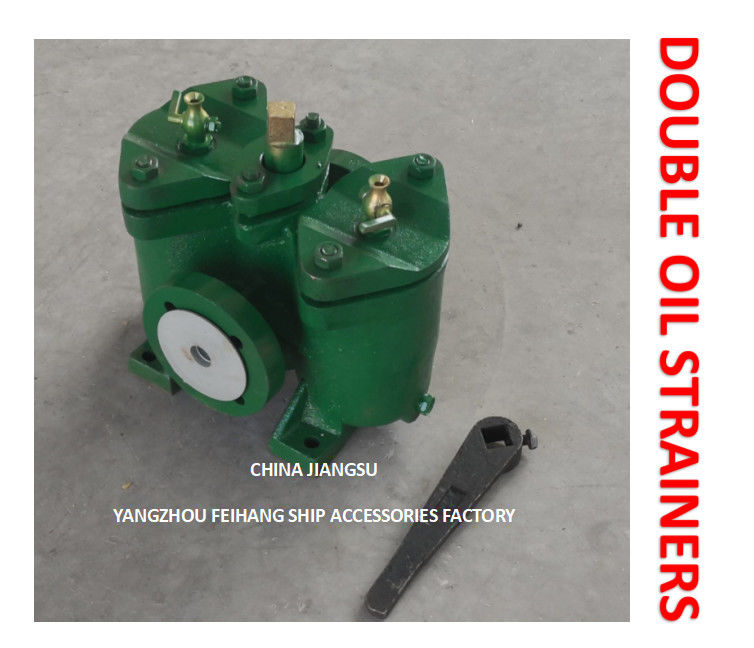

Flanged Duplex Oil Strainer For Industrial Marine Applications Model AS20 Cb/T425-94
Product Description:
The dual low-pressure crude oil filter, also known as a dual switchable filter, is composed of two filter barrels that allow for either parallel or series configuration. By using the handle, it allows for different modes of operation which include:
- Using the two filter cartridges alternately without stopping the machine.
- Both machines can work simultaneously for continuous operation without requiring a shutdown for up to 24 hours.
Technical Parameters:
| Property |
Value |
| Style |
Twin Cylinder |
| Sealing Material |
Silicone, Viton, PTFE |
| Pressure Range |
0.4MPa |
| Filter Area |
0.2-2.5m2/h |
| Flow Capacity |
1-1000m3/h |
| Connection Type |
Flanged |
| Product Name |
Duplex Oil Strainer |
| Filter Element |
Stainless Steel Wire Mesh |
| Design standards |
CB/T425-1994 |
| Surface treatment |
Paint |
Applications:
FEIHANG Duplex Oil Strainers, with model A and AS-type, are made of cast iron, carbon steel, and stainless steel, and are specifically designed to filter out pollutants and debris from oil and fuel. They are widely used in automotive, marine, and industrial applications, and are certified with factory certificate, test report, and material report. The surface of the filter is treated with a paint, and it is also equipped with a temperature range of -20℃-200℃. The filter element mesh varies from 20 to 200 mesh, and the sealing material includes silicone, viton, and PTFE. The minimum order quantity of the product is 1pcs, and the price is to be discussed personally. The delivery time is 1-2 days, and the payment terms are 100% prepaid. The supply ability of the product is up to 100pcs/days. With its excellent filtration performance, FEIHANG cast iron duplex strainers, duplex oil filters, and dual fuel filters are perfect for those who require great reliability and durability.
Customization:
Customized Duplex Oil Strainer
Brand Name: FEIHANG
Model Number: A,AS-type
Place of Origin: Yangzhou, Jiangsu, China
Certification: Factory certificate, test report, material report
Minimum Order Quantity: 1pcs
Price: Discuss personally
Packaging Details: Export packaging
Delivery Time: 1-2days
Payment Terms: 100% prepaid
Supply Ability: 100pcs/days
Surface treatment: Paint
Body Material: Cast Iron, Carbon Steel,Stainless Steel
Filter Element: Stainless Steel Wire Mesh
Product Name: Duplex Oil Strainer
Connection Type: Flanged
Features:
- Dual crude oil filter, DOUBLE OIL FILTERS
- CAST IRON DUPLEX STRAINERS
- High quality stainless steel filter element
- Easy to install and replace
- Low maintenance cost
Support and Services:
We provide technical support and service for our Duplex Oil Strainer. Our knowledgeable engineers are available to answer any questions you may have about the product and its use. We are committed to providing our customers with the best possible service and support.
We offer a wide range of services, including troubleshooting, installation, maintenance, repairs, upgrades and consulting. Our team is available to help with any technical issues you may have, and we are always happy to provide advice and guidance. We also offer a range of training courses to help you get the most out of your Duplex Oil Strainer.
If you need assistance or have any questions, please contact our technical support team. We are always available to help and will provide prompt and reliable service.
