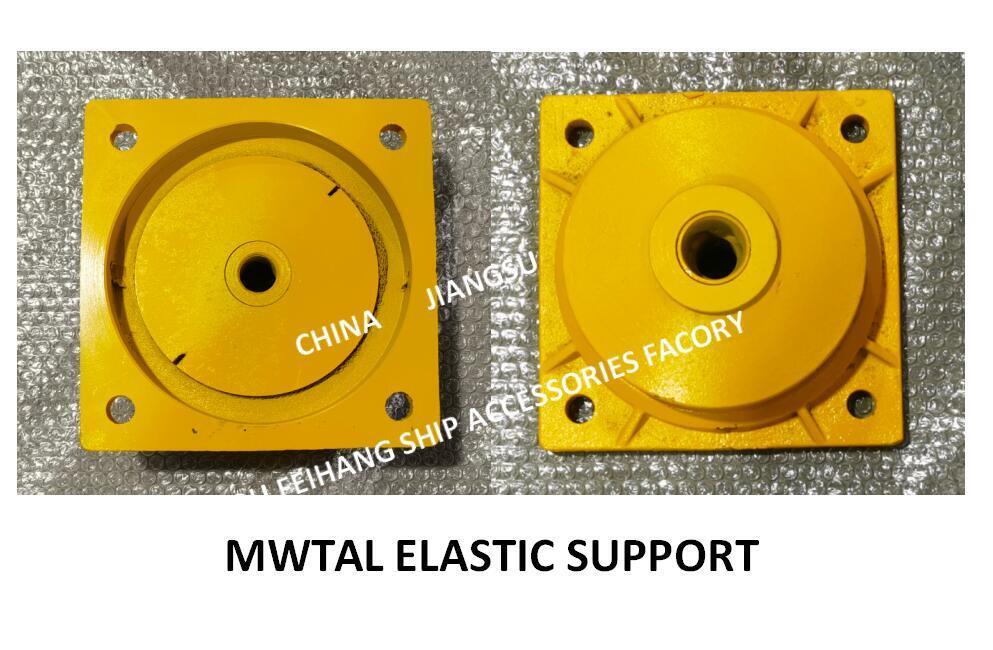

CB*3321-88 METAL ELASTIC SUPPORT & MARINE METAL ELASTIC SUPPORT- YANGZHOU FEIHANG SHIP ACCESSORIES FACTORY
Product Description Meatal Elastic Support CB*3321-88:
The METAL ELASTIC SUPPORT is primarily designed for the elastic installation of pipeline systems, including exhaust pipes and steam pipes commonly found in marine diesel engines. Additionally, it is suitable for use with the main and auxiliary engine foundations as well as deck structures on ships.
This support system is also ideal for providing elastic support to various types of land-based power machinery and vehicle-mounted equipment. Its main functions include vibration isolation and noise reduction, enhancing the operational stability and comfort of these machines.
When applied to pipeline systems, the metal elastic supports are often used together with pipeline spring hangers to ensure optimal elasticity and secure installation. This combination helps maintain the integrity and durability of the pipeline infrastructure under dynamic conditions.
Features Meatal Elastic Support CB*3321-88:
- Product Name: Metal Elastic Support
- Base Material: ZG35, ZG45
- Load Capacity: Pz Limit load ranging from 300 to 70000N
- Suitable for Marine Diesel Engine Exhaust Pipe and Steam Pipeline applications
- Deformation Value under Limit Load: 1.0 to 5.8MM
- Ideal for use with DECK SCUPPER PLUG and Marine deck drainage hole bolts
- Ensures reliable performance in marine deck drainage hole bolts systems
Technical Parameters Meatal Elastic Support CB*3321-88:
The deformation value of the elastic support under the P2 rated load must meet the requirements specified in Table 1. An allowable deviation of ± 0.75mm is permitted to ensure proper performance and reliability.
Prior to conducting the vibration test, it is essential to verify that the elastic mesh pad, metal components, and connectors are in good condition and free from any damage or wear. During the vibration testing process, both axial and radial tests should be performed on the test sample to comprehensively evaluate its durability.
When the elastic support is subjected to its rated load and an external impact acceleration of 7g, the acceleration transmitted to the equipment must remain below 7g. This ensures the protection of the equipment from excessive forces during impact events.
The elastic support must successfully endure the ultimate static load test. Following this test, the product should exhibit no mechanical damage and must continue to operate normally without performance degradation.
After assembling the product, it is required to apply a layer of oil film onto the inner surface of the connecting shaft. This oil film helps to reduce friction and enhance the longevity of the component.
Except for the elastic mesh pad, all other components of the product should be coated with an anti-corrosion protective paint. This coating protects the product from rust and extends its service life under various environmental conditions.
In cases where the ordering party has specific requirements beyond the standard provisions, these can be discussed and agreed upon separately with the manufacturer to accommodate customized needs.
Applications Meatal Elastic Support CB*3321-88:
Metal Elastic Support A10 CB * 3321-88 "A-type elastic support with rated load of 300-7000N"

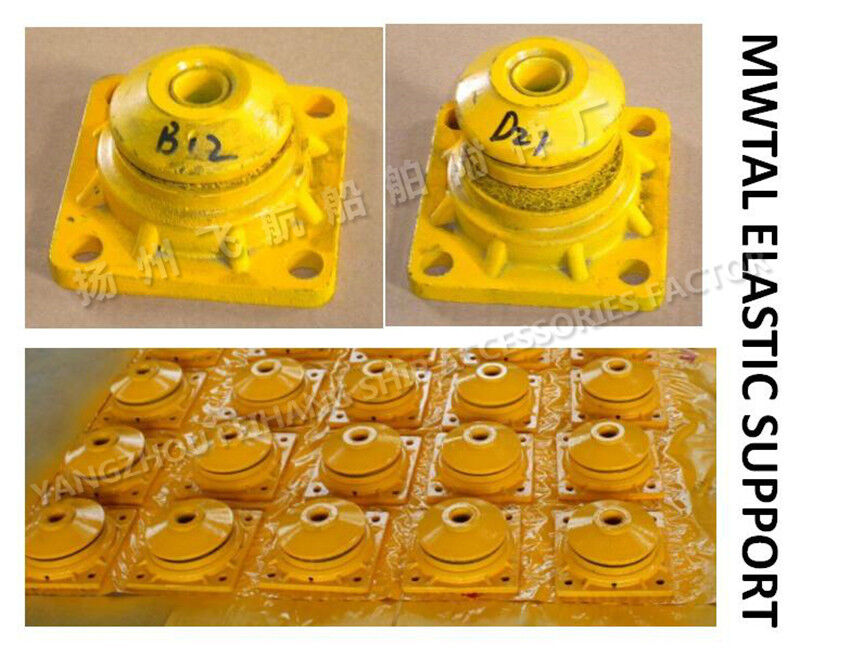

Metal Elastic Support B12 CB * 3321-88 "B-type elastic support with rated load of 500-9000N"
Metal Elastic Support B14 CB * 3321-88 "B-type elastic support with rated load of 2500-70000N"
The FEIHANG Marine Spare Part series, including models A110, B12, and B14, is specifically designed to meet the rigorous demands of marine applications. Originating from Yangzhou, Jiangsu, China, these high-quality components are manufactured under strict adherence to the CB*3321-88 design standards, ensuring durability and reliability in harsh marine environments. Certified with both Factory and Class Certificates, the FEIHANG spare parts guarantee exceptional performance and safety for various marine systems.
These marine spare parts are primarily used as GUTTER PLUG and DECK SCUPPER PLUG solutions, making them essential for maintaining the integrity of marine diesel engine exhaust pipes and steam pipelines. The base materials ZG35 and ZG45 provide robust mechanical strength, while the elastic mesh cushion made from SUS316L stainless steel ensures excellent corrosion resistance and flexibility, crucial for long-term marine use. With a Pz limit load ranging from 300 to 70000N, these components can withstand significant mechanical stresses, making them suitable for heavy-duty marine operations.
FEIHANG’s marine spare parts are widely applied in shipbuilding and repair, particularly in sealing and plugging applications to prevent water ingress through deck scuppers and gutters. Their usage is vital during maintenance and overhaul of marine diesel engines, where secure exhaust pipe connections are necessary to maintain engine efficiency and safety. Additionally, these parts are employed in steam pipeline systems on vessels, helping to maintain pressure integrity and prevent leaks.
Thanks to their export packaging and a supply ability of 100 pieces per day, these spare parts are readily available for shipping worldwide, with a delivery time of just 5 days. The minimum order quantity is 5 pieces, with pricing available upon personal discussion to accommodate various project scales. Payment terms require 100% prepaid, ensuring smooth and efficient transactions.
In summary, the FEIHANG Marine Spare Parts, including GUTTER PLUG and DECK SCUPPER PLUG models, are indispensable components designed for marine diesel engine exhaust pipes and steam pipelines. Their superior material composition, certified quality, and robust load-bearing capacity make them ideal for a wide range of marine vessel maintenance and construction scenarios.
Customization Meatal Elastic Support CB*3321-88:
FEIHANG offers high-quality Metal Elastic Support products, including models A110, B12, and B14, designed and manufactured in Yangzhou, Jiangsu, China. Our products are certified with Factory Certificate and Class Certificate, ensuring reliability and compliance with industry standards.
Our Metal Elastic Support features an elastic mesh cushion made from SUS316L material, providing excellent durability and performance. The design adheres to the CB*3321-88 standards, guaranteeing top-notch quality suitable for various marine applications.
This product is ideal for use as a DECK SCUPPER PLUG and GUTTER PLUG, effectively supporting and protecting deck drainage systems. With a Pz limit load range of 300-70000N, it offers robust support under demanding conditions.
We maintain a supply ability of 100pcs per day, with a minimum order quantity of 5pcs. Products are packaged with export packaging to ensure safe delivery. Our standard delivery time is 5 days, and payment terms require 100% prepaid.
For pricing details of our DECK SCUPPER PLUG and related marine spare parts, please discuss personally with our sales team. Choose FEIHANG Metal Elastic Support for dependable marine spare part customization services.
Packing and Shipping Meatal Elastic Support CB*3321-88:

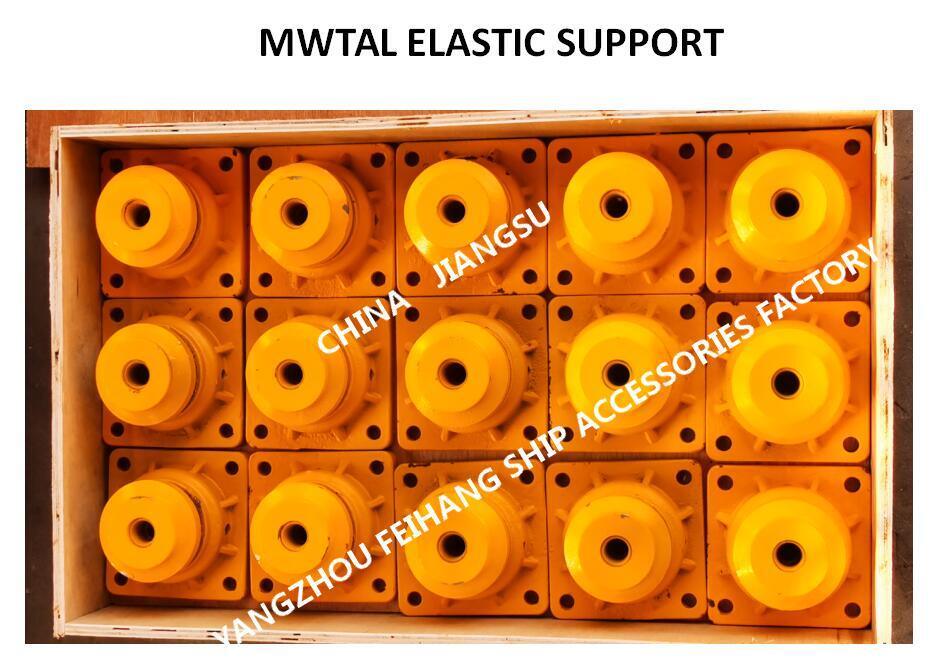

Our Marine Spare Parts are carefully packaged to ensure maximum protection during transit. Each part is securely wrapped using industrial-grade materials to prevent damage from moisture, dust, and impact. Fragile components are cushioned with foam inserts or bubble wrap, and all items are placed in sturdy, corrosion-resistant boxes designed for maritime environments.
For shipping, we partner with reliable carriers experienced in handling marine equipment. We offer various shipping options, including express and standard delivery, with full tracking capabilities. All shipments are labeled clearly with handling instructions to ensure safe and timely arrival at your destination.
Additionally, we provide customized packaging solutions for bulk orders or special requirements to meet specific client needs. Our goal is to deliver your marine spare parts in perfect condition, ready for immediate use.
