''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type

''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type

Cast Iron Hydraulic Control Valve Unit

Marine Hydraulic Control Valve Block

Place of Origin:

Yangzhou, Jiangsu, China

Brand Name:

FEIHANG

Certification:

Factory certificate, test report, material report

Model Number:

CSBF

Contact Us

Request A Quote
Product Details
MODEL:
CSBF-G25
Inlet/Outlet Port Size:
1"-DN20
Valve Body Material:
Cast Iron
NOMINAL Flow:
200l/min
Paint Color:
Green
Product Name:
Winch Control Valve
Valve Actuator:
Manual
NOMINAL PRESSURE:
21MPA
DESIGN STANDARDS:
CB
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Discuss personally
Packaging Details
Export packaging
Delivery Time
1-2days
Payment Terms
100% prepaid
Supply Ability
100pcs/days
Product Description

Pc Control Valves For Series Hydraulic Circuits-WINCH CONTROL VALVE

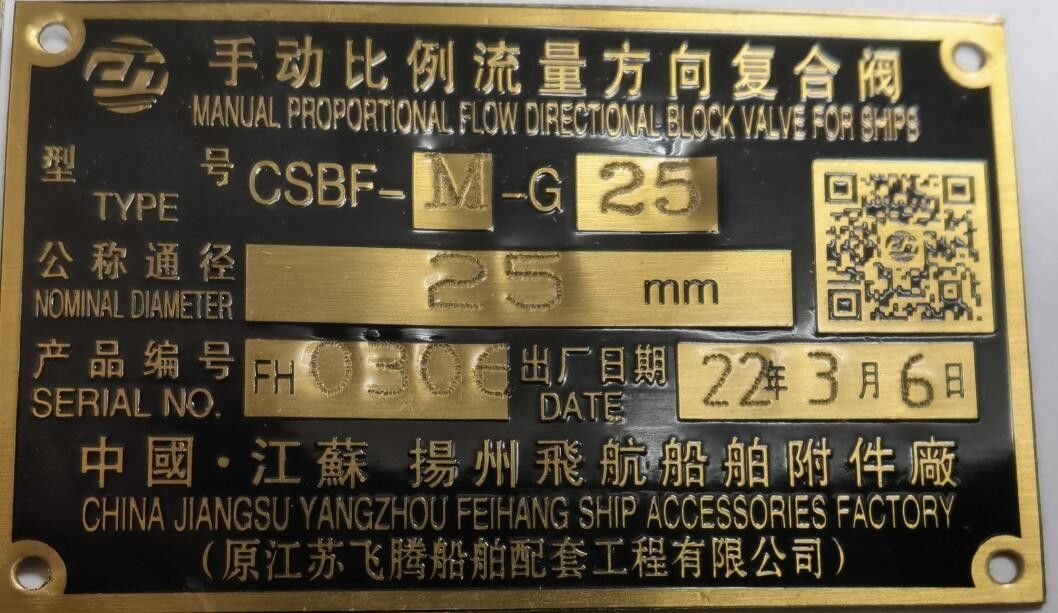

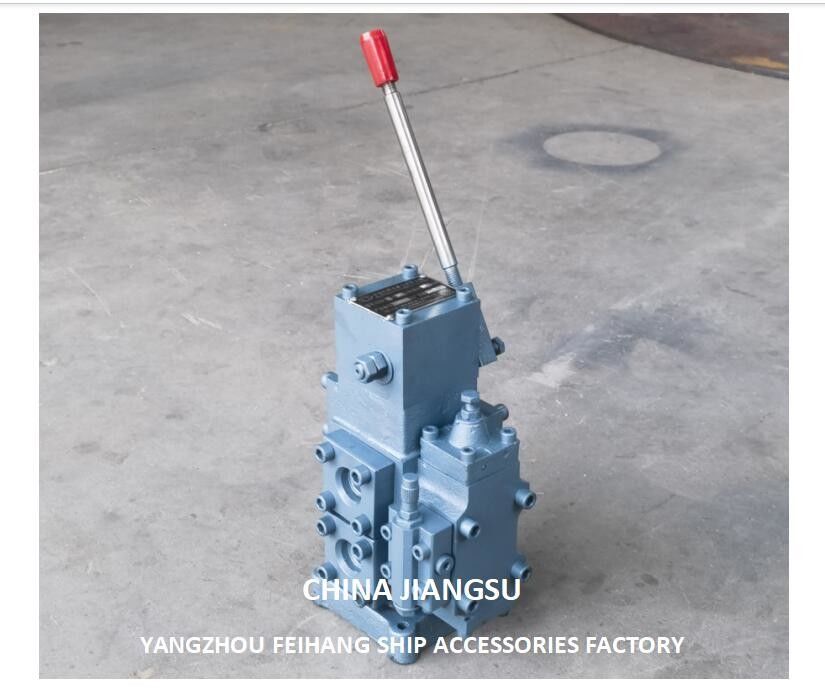

''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type 0

Product Description For Winch Control Valve And MANUAL PROPORTIONAL FLOW CONTROL VALVES:

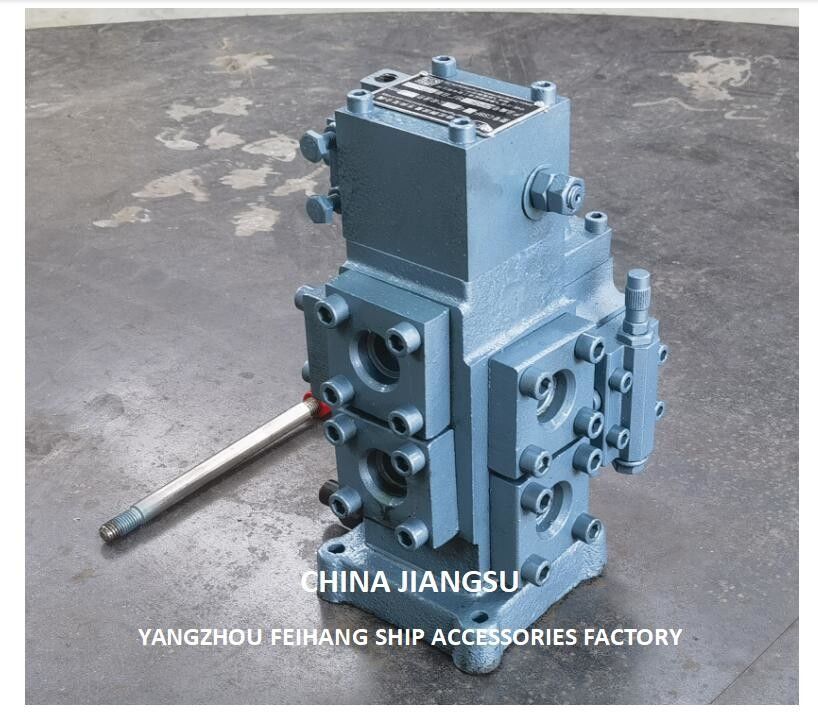

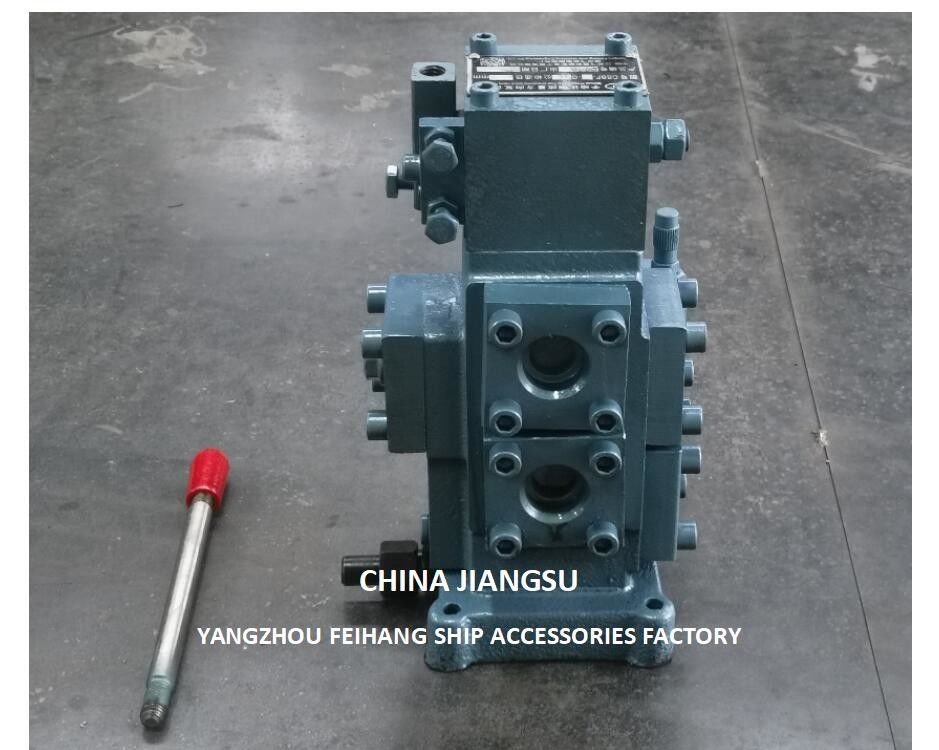

''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type 1

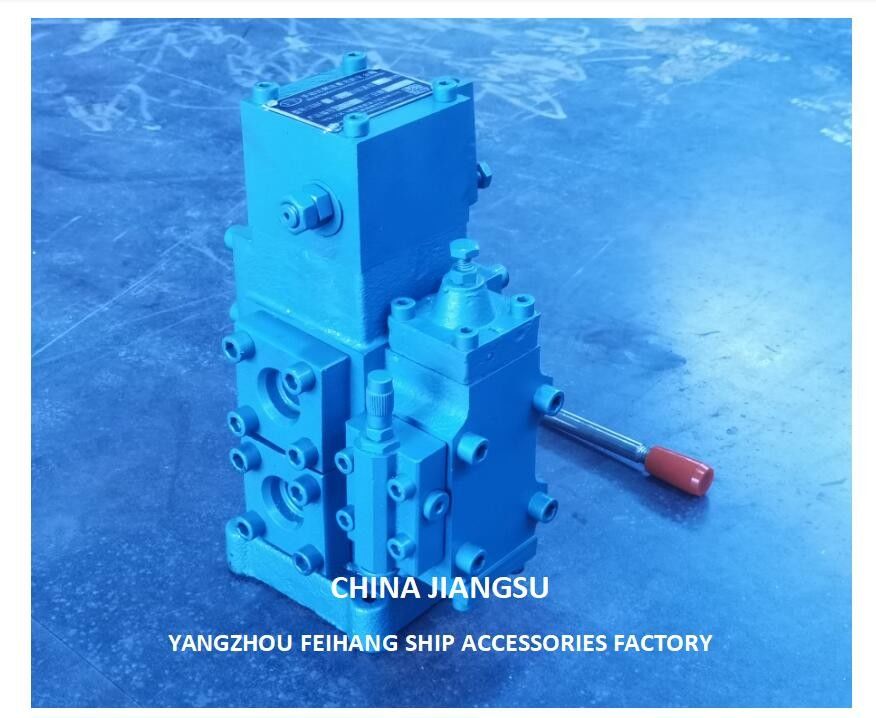

''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type 2

The CSBF TYPE marine manual proportional flow direction compound valve is an ideal valve for flow proportional control and safety protection. This three-position, four-way, valve is equipped with pressure compensation and reliable reversing speed adjustment, as well as enabling long-term use and effortless operation.

This valve is most commonly used in ship-based Hybrid Machinery hydraulic systems, but is versatile enough for a wide variety of machinery usages. Its compact dimensions and sturdy construction makes it ideal for tight spaces or harsh environments.

The CSBF TYPE marine manual proportional flow direction compound valve has proven to be reliable and boosts productivity with its efficient regulating capabilities. It is the ideal choice for a vast range of maritime and industry applications.



Features For Winch Control Valve And MANUAL PROPORTIONAL FLOW CONTROL VALVES:

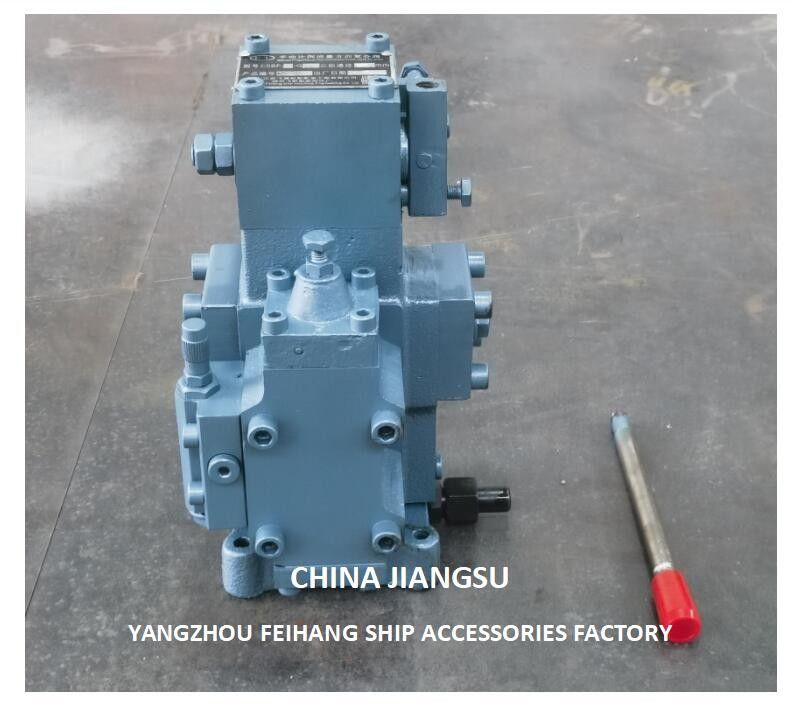

''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type 3

These manual control valves are most widely used for operating valves of winches with a pressure compensator for series hydraulic circuits. The turning angle of the lever is proportional to the flow passing through the valve, and is not affected by changes in load or varied input flow. This valve also has a stable flow rate (speed) control, and allows for adjustment of the maximum flow at A and B ports. The flange installation size is compliant with JIS B2291 and safety valve is built-in. The hand lever can be positioned at every 90 degrees, while P and T ports are specifically designed to be in parallel with the mounting surface–installation with JIS LSA type flanges enables a downwards piping arrangement for efficient use in limited spaces.

This multifunctional, compact control valve can be used along with a brake valve, a counter-balance valve, and other accessory devices. It features an easy port-changing capability between internal and external drain, with minimal shock and light force to move the lever. The fitting of pipes to the P and T ports is made easier with the addition of a manifold block. Furthermore, the main parts such as bolts are constructed out of stainless steel for durability.

Additional features include the option of manual, hydraulic or electrical operation, sensitive, load-independent control, a pressure relief valve for system protection, and important accessory parts such as setscrews which are stainless steel or coated with rust protection. Additionally, all mounting surfaces are coated with sealant for enhanced corrosion protection.



Technical Parameters For Winch Control Valve And MANUAL PROPORTIONAL FLOW CONTROL VALVES:

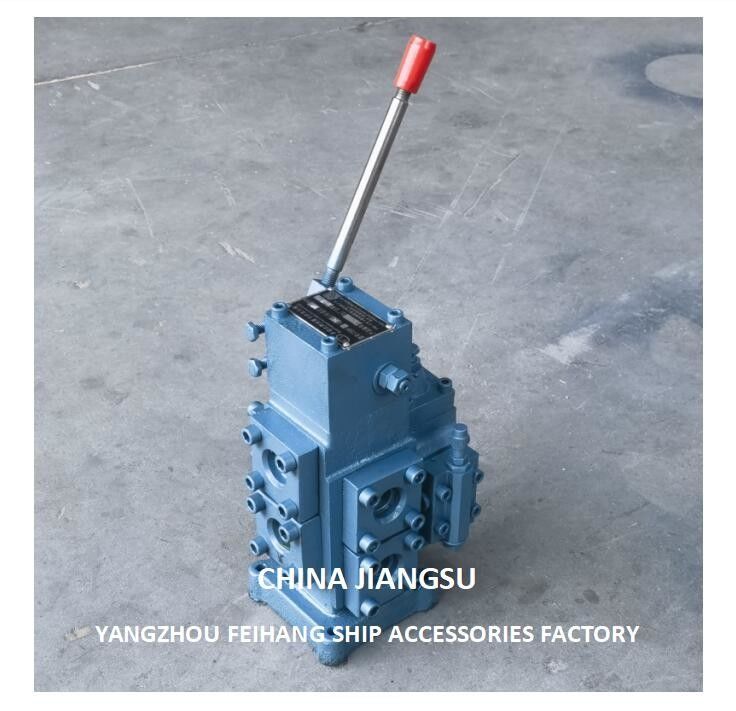

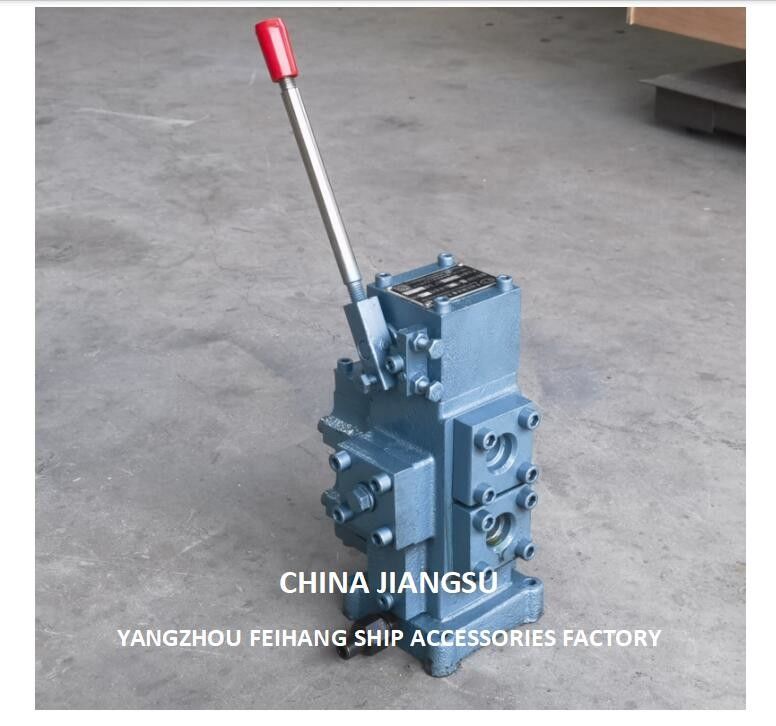

''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type 4''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type 5

Parameter Value
Inlet/Outlet Port Size 3/4"-DN20
Valve Actuator Manual
Valve Body Material Cast Iron
DESIGN STANDARDS CB
NOMINAL Flow 120l/min
Paint color Green
Product Name Winch Control Valve
Model CSBF-G20
NOMINAL PRESSURE 21MPA
Pressure regulation range of safety valve 5-25Mpa


Applications For Winch Control Valve And MANUAL PROPORTIONAL FLOW CONTROL VALVES:

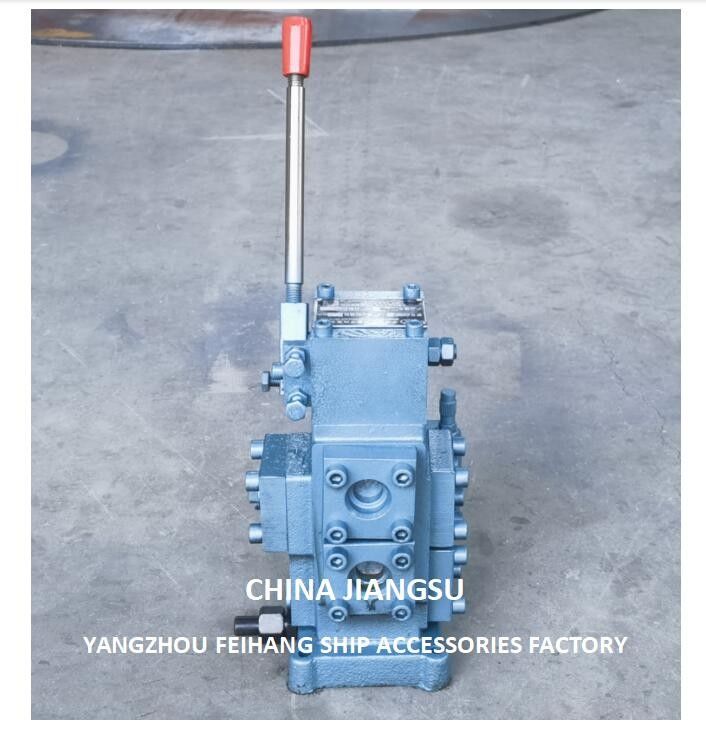

''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type 6

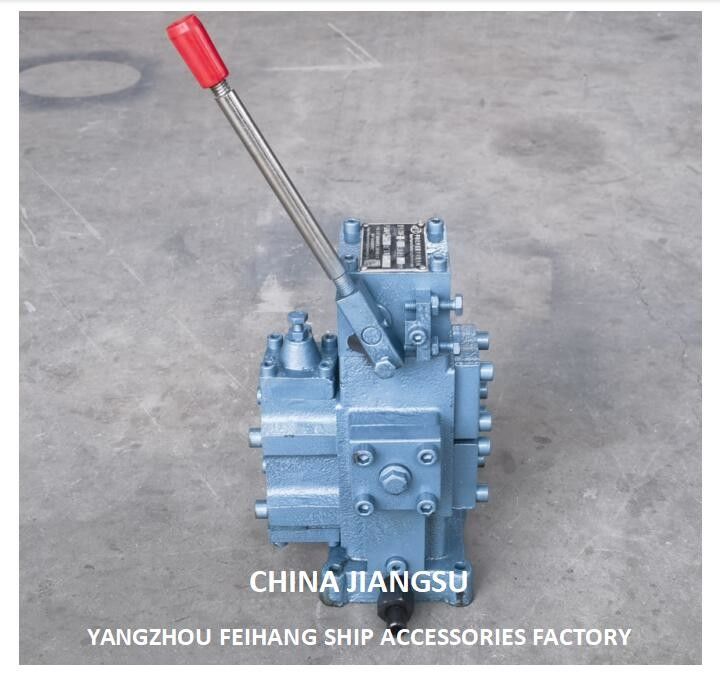

''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type 7

FEIHANG Winch Control Valve is a manual proportional composite valve used for windlass control. It is a type of HYDRAULICS CONTROL VALVES with amazing performance. The product is made from cast iron, and its paint color is green. It has Nominal Pressure of 21MPA and Inlet/Outlet Port Size of 3/4"-DN20. The product is certified with Factory certificate, test report, material report. It has minimum order quantity of 1pcs, and its price can be discussed personally. The product is packed in Export packaging and has delivery time of 1-2days. Payment Terms are 100% prepaid and Supply Ability is 100pcs/days. FEIHANG Winch Control Valve is the perfect choice for windlass control.



Customization For Winch Control Valve And MANUAL PROPORTIONAL FLOW CONTROL VALVES:

''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type 8

Winch Control Valve

Brand Name: FEIHANG
Model Number: CSBF
Place of Origin: Yangzhou, Jiangsu, China
Certification: Factory certificate, test report, material report
Minimum Order Quantity: 1pcs
Price: Discuss personally
Packaging Details: Export packaging
Delivery Time: 1-2days
Payment Terms: 100% prepaid
Supply Ability: 100pcs/days
Product Name: Winch Control Valve
DESIGN STANDARDS: CB
Valve Actuator: Manual
NOMINAL Flow: 120l/min
Model: CSBF-G20

FEIHANG Winch Control Valve is a manual proportional flow control block for ships, PC control valves for series hydraulic circuits. It is designed for winch applications and provides reliable and precise control. It is equipped with a pressure compensated flow control to ensure a constant flow of fluid. The valve is equipped with a manual override button for emergency stop. The valve is designed for easy installation and maintenance, and it is suitable for a wide range of applications. It is certified according to the latest standards and regulations.



Support and Services For Winch Control Valve And MANUAL PROPORTIONAL FLOW CONTROL VALVES:

''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type 9

Winch Control Valve Technical Support & Service

We offer a wide range of technical support and services for our Winch Control Valve products. Our technical support team is available 24/7 to provide assistance and answer any of your questions.

We provide a variety of services, including installation, troubleshooting, maintenance, and warranty services. We also offer training and education in the use and operation of the Winch Control Valve.

Our technical support staff are knowledgeable and experienced in the use of Winch Control Valve products and can provide you with the help and advice you need. They are available to answer any questions you may have, and to provide assistance in the installation, troubleshooting, and maintenance of your Winch Control Valve.

If you have any questions or need any assistance, please don't hesitate to contact us. Our team is here to help you get the most out of your Winch Control Valve.



Packing and Shipping For Winch Control Valve And MANUAL PROPORTIONAL FLOW CONTROL VALVES:

''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type 10''Control Valve Unit'' Block Of The Hydraulic System Model CSBF-G25 Median Function M-Type 11

We are a qualified manufacturer (WINCH CONTROL VALVE) in China, and our products have been exported to customers around the world, such as Singapore, Dubai, Hamburg, United Arab Emirates, Netherlands, South Korea, Mexico, Thailand, Indonesia, Vietnam, Philippines, United Kingdom, etc..

If you have any needs, please feel free to contact us at any time!



Packaging and Shipping for Winch Control Valve:

The Winch Control Valve is packaged in a cardboard box with a foam insert to protect the valve during shipping. The box is labeled with the product name, size, part number, and the shipping address. All orders are shipped via USPS, FedEx, or UPS, depending on the size and weight of the package.



FAQ For Winch Control Valve And MANUAL PROPORTIONAL FLOW CONTROL VALVES:

WINCH CONTROL VALVE.pdf

Q1: What is Winch Control Valve?
A1: Winch Control Valve is a type of valve designed to control the speed and direction of a winch. It is manufactured by FEIHANG, a company based in Yangzhou, Jiangsu, China.
Q2: What certifications do you have?
A2: We have Factory certificate, test report, material report.
Q3: How many pieces do I need to order?
A3: The minimum order quantity is 1pcs.
Q4: What is the price of Winch Control Valve?
A4: The price is negotiable, please contact us for further details.
Q5: How about the packaging and delivery?
A5: The product will be packaged in export packaging and delivered within 1-2 days after payment. Payment terms is 100% prepaid.
