Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012

Basket marine sea water strainer

Cooling System marine sea water strainer

Stainless Steel seawater strainer

Place of Origin:

Yangzhou, Jiangsu, China

Brand Name:

FEIHANG

Certification:

Factory certificate, test report, material report

Model Number:

AS150

Contact Us

Request A Quote
Product Details
Application:
Marine Sea Water
Body Material:
Stainless Steel
Design Standards:
CB/T497-2012
Median Function:
Sea Water
Connection Type:
Flanged
Filter Mesh:
4mm
SURFACE TREATMENT:
NATURAL COLOR OF STAINLESS STEEL
Filter Element:
Stainless Steel Mesh
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Discuss personally
Packaging Details
Export packaging
Delivery Time
3-5days
Payment Terms
100% prepaid
Supply Ability
100pcs/days
Product Description

Marine Stainless Steel Coarse Water Filter Stainless Steel Sea Water Filter Model FH-AS150s Cb/T497-2012

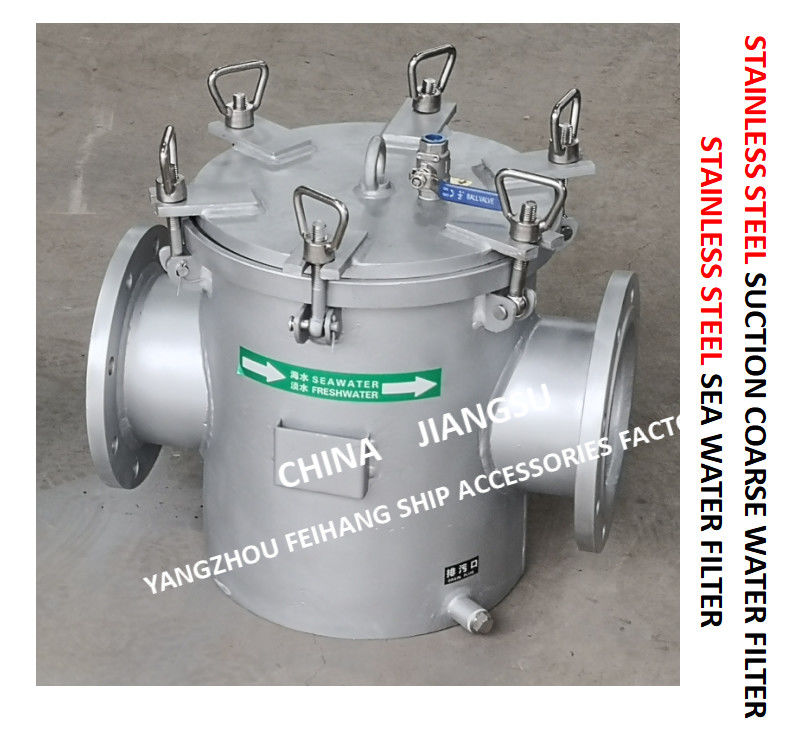

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 0



Product Description For Stainless Steel Sea Water Strainers:

The installation layout of this marine stainless steel coarse water filter and stainless steel seawater filter in the marine piping system (as shown in the schematic diagram of piping installation as shown below):

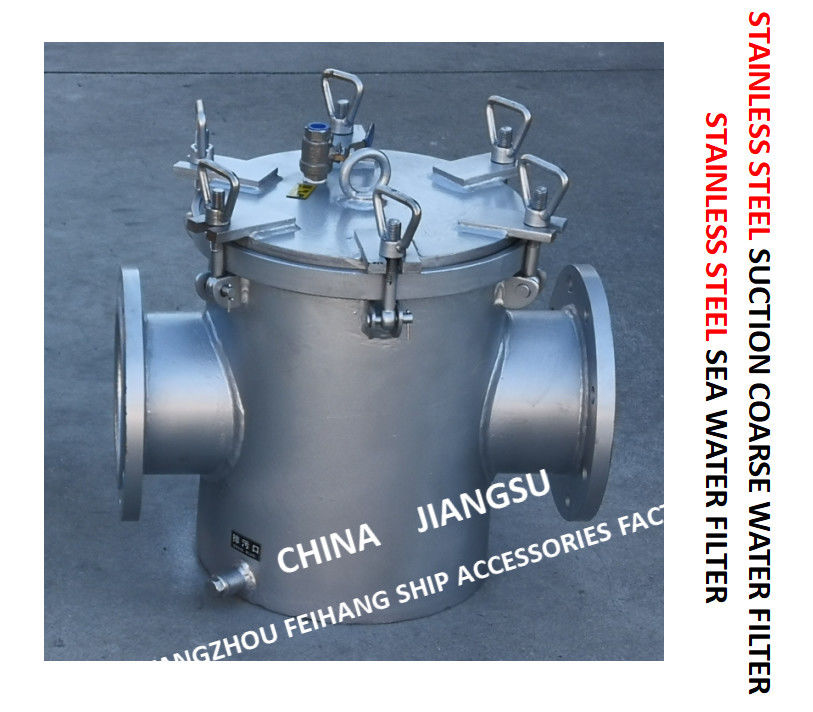

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 1



Features For Stainless Steel Sea Water Strainers:



Marine stainless steel suction coarse water filter-stainless steel sea water filter Instructions for use:

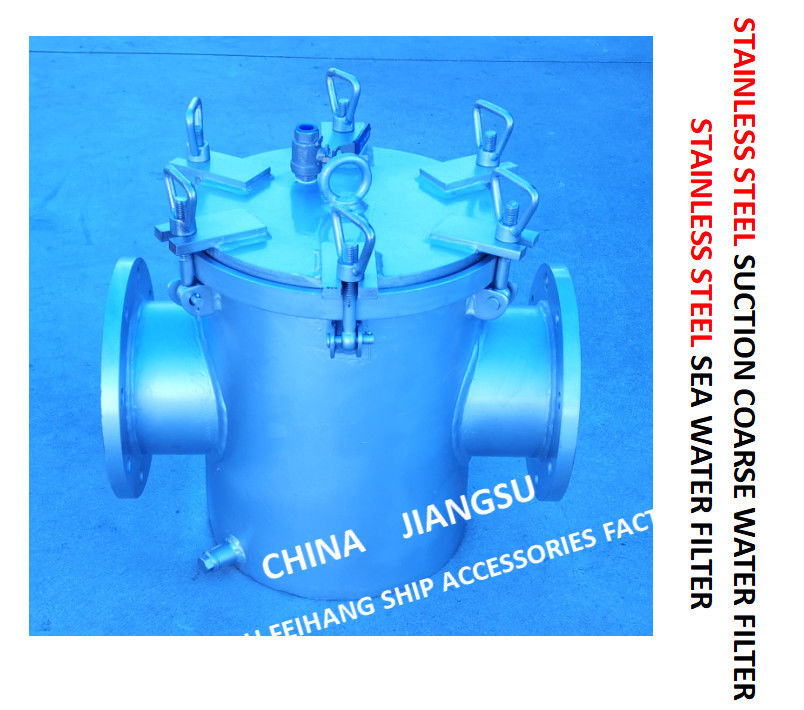

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 2

1. Before installing the stainless steel coarse water filter in the pipeline, please check the nameplate to confirm the maximum pressure and temperature of the filter, and whether they are consistent with your pipeline performance. Then adjust the installation method of the filter according to the direction of the water inlet and outlet of the pipeline.


After confirming the above consistency, before installation (stainless steel sea water filter, stainless steel coarse water filter) also confirm that the flange and the diameter of the flange must have sealing gaskets in order to achieve better sealing performance.

2. When the stainless steel coarse water filter and the stainless steel sea water filter are finished, it is necessary to open the sea water inlet valve at this time, and at the same time open the breather valve on the top of the (stainless steel sea water filter) (as shown in the figure below):

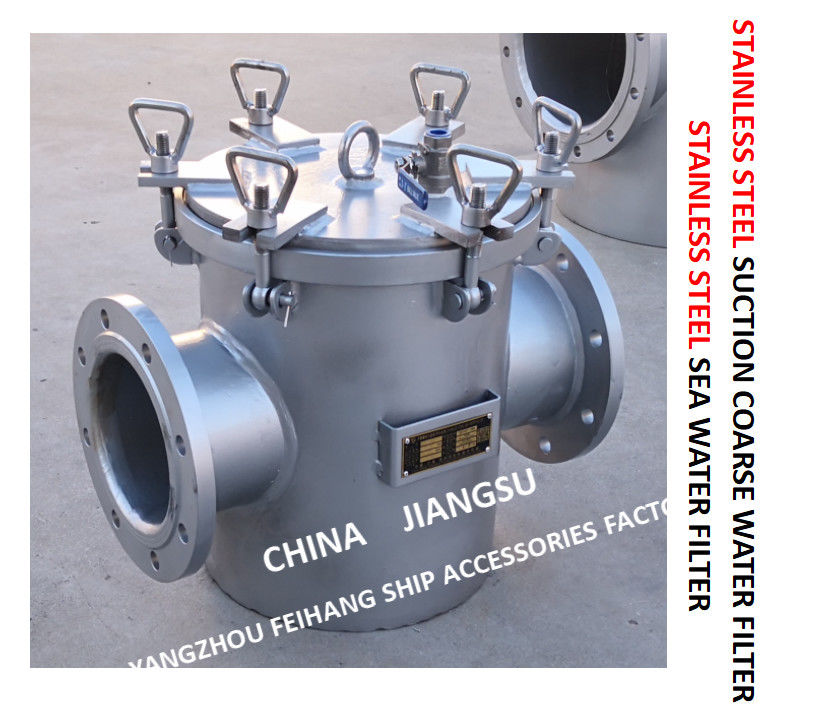

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 3

Let all the air in the marine stainless steel basket seawater filter be exhausted, and then close the breather valve when you see water coming out, which means that the air inside has been completely emptied.
Everyone here knows that it is very important to set the exhaust valve at the cover plate of the seawater filter.

 According to our experience and customer suggestions, we can set the exhaust valve of the seawater filter in the following styles:

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 4

Technical Parameters For Stainless Steel Sea Water Strainers:

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 5

Parameter Value
Filter Mesh 4mm
Surface Treatment NATURAL COLOR OF STAINLESS STEEL
Filter Element Stainless Steel Mesh
Connection Type Flanged
Nominal Diameter DN150
Application Marine Sea Water
Nominal Pressure 0.25-1.5Mpa
Body Material Stainless Steel
Median Function Sea Water
Design Standards CB/T497-2012
Keywords Stainless steel coarse water filter, Suction coarse water filter, Stainless steel sea water filter


Applications For Stainless Steel Sea Water Strainers:

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 6

FEIHANG Marine Sea Water Strainer is designed to filter out large particles and debris from sea water, and help protect engines from sand, mud and other impurities. This strainer is made of stainless steel mesh, with a nominal diameter of DN40-DN1000. It is made of carbon steel or stainless steel, which is strong and durable. The filter element can effectively filter out large particles from sea water and ensure the cleanliness of sea water. The median function of this strainer is to filter sea water. With its high-quality materials and reliable performance, it has been widely used in marine and other related industries.

FEIHANG Marine Sea Water Strainer is certified with factory certificate, test report, and material report. The minimum order quantity is 1pcs and the price is discussed personally. The delivery time is 3-5days and payment terms is 100% prepaid. The packaging details are export packaging and the supply ability is 100pcs/days. This strainer is perfect for sea water filtration and provides reliable performance.





Repair and maintenance of stainless steel marine seawater filter and stainless steel marine suction coarse water filter:



1. We all know that no matter what kind of filter it is, its core part is the filter element (that is, what we usually call the filter cartridge, filter screen). The filter barrel of the stainless steel seawater filter consists of a punching plate, a handle and a zinc block. Composition (as shown below):

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 7

2. After working for a period of time, the stainless steel seawater filter of the ship has certain impurities deposited in the filter cartridge. At this time, the pressure drop increases and the flow rate will decrease. It is necessary to remove the impurities of the stainless steel filter cartridge in time to ensure its use. Lifespan; The specific cleaning steps and methods are as follows:

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 8

First, you need to close the sea valve (or other valves connected to both sides of the sea water filter), and then open the breather valve of the stainless steel coarse water filter to check whether there is pressure (if there is pressure, the sea ​​valve has leaked, and when there is no pressure, open the sea water again. cover of the strainer; then begin cleaning the basket filter inside the strainer.
When the filter barrel of the seawater filter is taken out, we will see that there are a lot of sewage impurities in the shell of the stainless steel seawater filter. At this time, we need to open the sewage outlet at the bottom of the filter (as shown below)



Similarly, it is very important to set up the bottom sewage outlet when manufacturing stainless steel seawater filter and stainless steel coarse water filter. Through experience, we can set the sewage outlet in the following ways:

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 9

3. After cleaning the seawater filter, place the filter element according to the original method, and pay attention to two points when placing the filter element:


3-1. The opening direction of the filter cartridge of the stainless steel seawater filter should be aligned with the inlet connection of the filter housing (as shown in the figure below) to ensure that impurities will not be missed from the connection gap:

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 10

3-2. At the same time, when the pressure is high, the flow of seawater will increase, so that the filter cartridge will not slip in the water filter. When designing, we reinforced the filter cartridge and the body of the seawater filter. At this time, it is also necessary to Reinforced bolts are tightened (as shown below):

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 11

After the basket filter cartridge is installed correctly, we need to install the original method to cover the cover plate of the sea water filter. Here is a detail, everyone should pay attention to:



First of all, check the seal at the cover plate, if it is corroded, you need to replace it with a new one. When pressing the covers, please use the "opposite way and diagonal" way to distribute the pressure on all the covers. Do not use excessive force on the bolts and nuts as this can cause permanent deformation of the filter.

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 12
After all the above are installed, we need to test the pressure of this stainless steel seawater filter. At this time, we open the seawater inlet valve according to the previous method, and at the same time open the breather valve on the top to let all the air in the filter be exhausted. When you see water coming out, you can turn off the breather valve, which means that the air inside has been completely emptied.



3. When we clean the seawater filter, we should pay attention to the degree of corrosion of the eyeholes on the filter cartridge or filter element, otherwise the filter element with a large area of ​​​​damage will cause the purity of the filtered medium to fail to meet the design requirements, resulting in damage to the ship's pipes. Pumps, instruments and other equipment on the road system will be damaged. If the filter cartridge has reached the point where it cannot be used, we need to replace it at this time. The specific replacement measurement method is as follows:

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 13

Customization For Stainless Steel Sea Water Strainers:



Customize Marine Sea Water Strainer
  • Brand Name: FEIHANG
  • Model Number: AS
  • Place of Origin: Yangzhou, Jiangsu, China
  • Certification: Factory certificate, test report, material report
  • Minimum Order Quantity: 1pcs
  • Price: Discuss personally
  • Packaging Details: Export packaging
  • Delivery Time: 3-5days
  • Payment Terms: 100% prepaid
  • Supply Ability: 100pcs/days
  • NOMINAL DIAMETER: DN40-DN1000
  • Filter Mesh: 1-8mm
  • Filter Element: Stainless Steel Mesh
  • Median function: Sea Water
  • Design standards: CB/T497,CBM1061
Features:
  • Stainless steel coarse water filter
  • Suction coarse water filter
  • Coarse water filter
  • Marine Sea Water Strainer


Support and Services For Stainless Steel Sea Water Strainers:

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 14

Marine Sea Water Strainer Technical Support and Service

At [Company Name], we are proud to provide technical support and service for our Marine Sea Water Strainer. All of our products are backed by a satisfaction guarantee, and we are committed to providing top-notch customer service.

Technical Support

We offer technical support by phone or email for any issue that may arise with your Marine Sea Water Strainer. Our team of experienced professionals will help you troubleshoot any issues or answer any questions you may have. We also offer online tutorials and guides to help you get the most out of your product.

Service and Repairs

If your Marine Sea Water Strainer is in need of repairs, we offer a full-service repair facility. Our team of experts can diagnose and fix any problem quickly and efficiently. We also offer regular maintenance and cleaning services to ensure your Marine Sea Water Strainer is always running smoothly.

Replacement Parts

If you need to replace any parts of your Marine Sea Water Strainer, we offer a wide selection of original replacement parts. All of our parts are designed and manufactured to the highest standards to ensure a perfect fit and reliable performance.



Packing and Shipping For Stainless Steel Sea Water Strainers:

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 0

Packaging and Shipping for Marine Sea Water Strainer
  • The Marine Sea Water Strainer will be packaged in a cardboard box with protective materials.
  • The package will be shipped using a reliable and safe transportation service.
  • Careful handling and delivery will be ensured.
  • The products will be shipped with tracking numbers and insurance.


FAQ For Stainless Steel Sea Water Strainers:

Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 16Basket Stainless Steel Sea Water Straines For Seawater Cooling System Model AS150 Cb/T497-2012 17

Q: What is Marine Sea Water Strainer?

A: Marine Sea Water Strainer is a device used to filter out debris and other impurities from seawater, which is used in marine engines, marine air-conditioning systems, and other marine equipment.

Q: What Brand Name is Marine Sea Water Strainer?

A: Marine Sea Water Strainer is of FEIHANG Brand Name.

Q: What type of Marine Sea Water Strainer does FEIHANG Brand provide?

A: FEIHANG Brand provides A, AS, BL, BR-type of Marine Sea Water Strainer.

Q: Where is Marine Sea Water Strainer from?

A: Marine Sea Water Strainer is from Yangzhou, Jiangsu, China.

Q: What certifications does Marine Sea Water Strainer have?

A: Marine Sea Water Strainer has Factory certificate, test report, material report.
