Mwtal Elastic Support B12 CB*3321-88 Body Cast Steel Wire Mesh - Stainless Steel

Mwtal Elastic Support B12 CB*3321-88 Body Cast Steel Wire Mesh - Stainless Steel

Place of Origin:

Yangzhou, Jiangsu, China

Brand Name:

FEIHANG

Certification:

Factory certificate, test report, material report

Model Number:

FH-type

Contact Us

Request A Quote
Product Details
Design Standards:
CB*3321-88
Product Name:
MWTAL ELASTIC SUPPORT
Working Pressure:
1.0-1.5Mpa
Application:
Marine
Base Material:
Cast Steel
Elastic Mesh:
Cold Drawn Stainless Steel Acid Resistant Wire
Rated Vertical Load N(kgf):
2500-70000 (250-7000)
Model:
A10,B12,B14
Deformation UnderRated Vertical Load N(mm):
2.5-5.8
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Discuss personally
Packaging Details
Export packaging
Delivery Time
1-2days
Payment Terms
100% prepaid
Supply Ability
100pcs/days
Product Description

Product Description For  MWTAL ELASTIC SUPPORT:

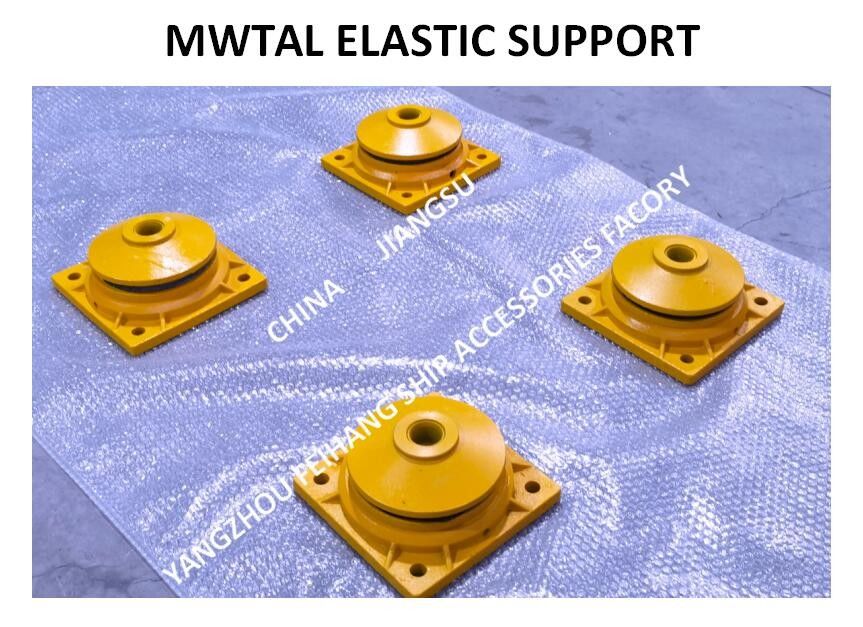

Mwtal Elastic Support B12 CB*3321-88 Body Cast Steel Wire Mesh - Stainless Steel 0

Marine Metal Elastic Support B14 CB * 3321-88

Product Overview:

CB * 3321-88 Marine metal elastic support is a new type of vibration isolator series product that utilizes stainless steel wire as the elastic body. This product is mainly suitable for the elastic installation of ship diesel engine pipeline systems and auxiliary engine base deck structures.

In addition, this marine metal elastic support can also be widely used for various industrial pipeline installations, vibration isolation and impact prevention of power machinery, on-board equipment, instruments and meters, etc. Notably, it is particularly suitable for accommodating variable load and broadband random vibration isolation.

Often, when metal elastic supports are used in pipeline systems, they are usually used together with elastic hangers.



Features For MWTAL ELASTIC SUPPORT:

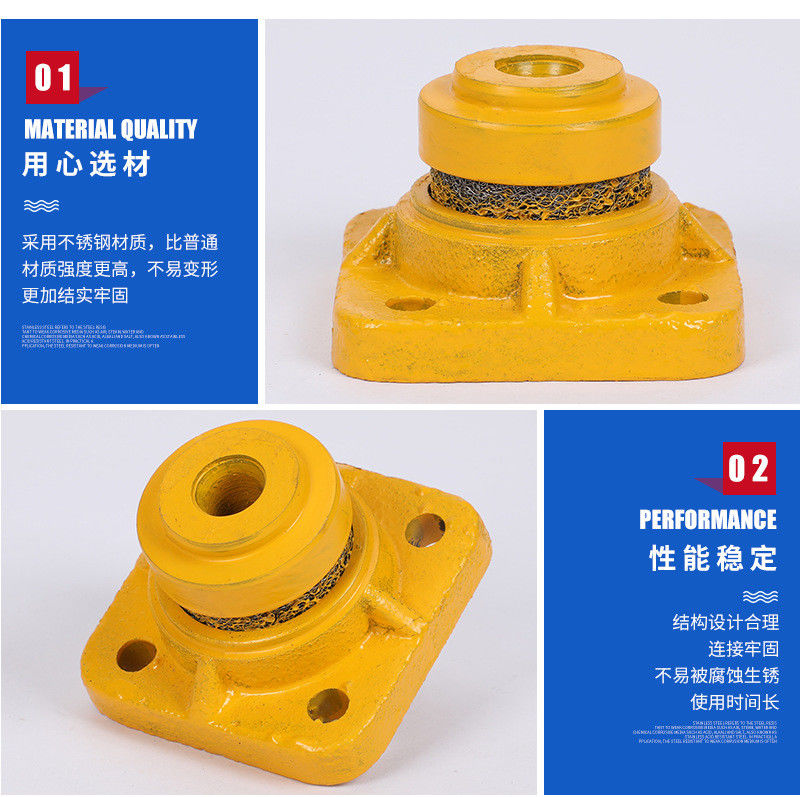

Mwtal Elastic Support B12 CB*3321-88 Body Cast Steel Wire Mesh - Stainless Steel 1

Marine metal elastic support B14 CB * 3321-88 is a strong support solution with many benefits for marine vessels. It has high hardness and friction damping, making it ideal for vibration isolation applications. This type of support also has a wide range of bearing capacity and works efficiently under variable load conditions.

This product is made up of all metal materials and a durable construction. It has been specifically designed to be resistant against fatigue, corrosion, radiation and temperature. A great advantage of this type of support is its bidirectional vibration isolation and impact resistance. Negative pressure is also no issue with this product which can work continuously in such condition.

The vibration isolation system composed of metal elastic supports for ships has successfully passed the MIL-STD-167 “Mechanical Vibration of Ship Equipment” assessment without any issue. The vibration isolation system is reliable, showing no abnormalities within two-hour testing period with natural frequency.



Technical Parameters For MWTAL ELASTIC SUPPORT:

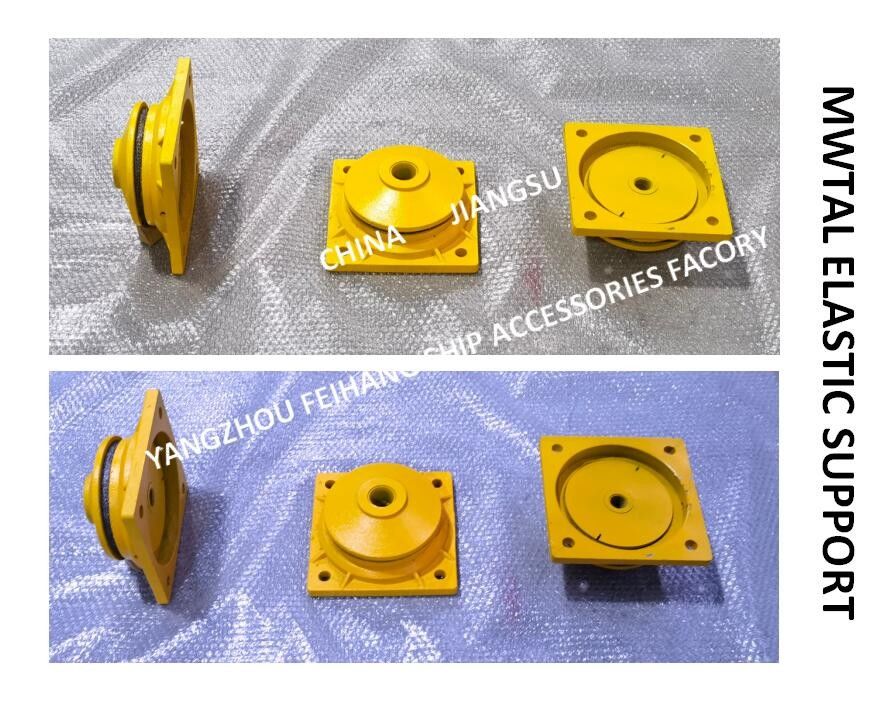

Mwtal Elastic Support B12 CB*3321-88 Body Cast Steel Wire Mesh - Stainless Steel 2

Parameter Value
Product Name MWTAL ELASTIC SUPPORT
Working pressure 1.0-1.5Mpa
Rated Vertical Load N(kgf) 2500-70000 (250-7000)
Model A10,B12,B14
Material Stainless Steel, Cast Steel
Application Marine
Design standards CB*3321-88
Keywords Marine deck drainage hole bolts, GUTTER PLUGS


Applications For MWTAL ELASTIC SUPPORT:

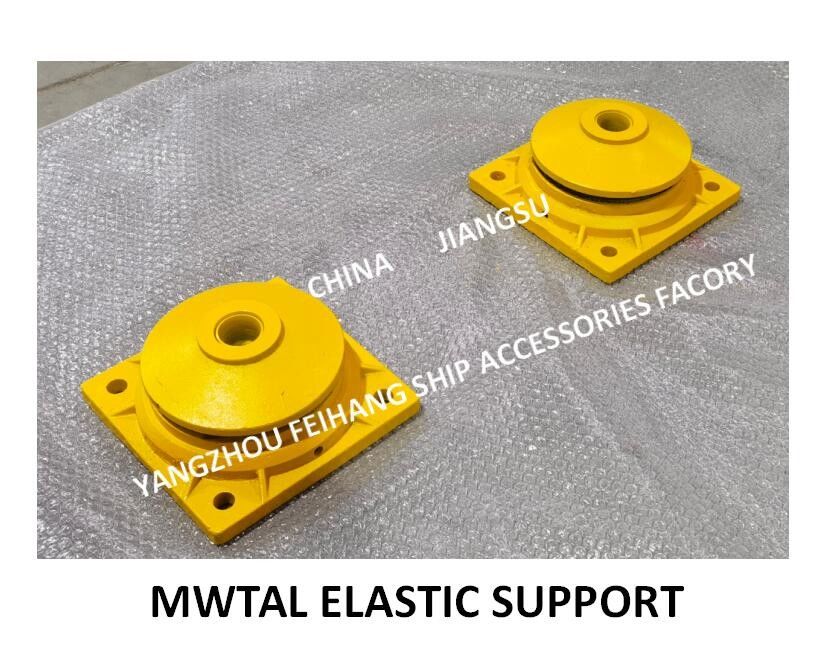

Mwtal Elastic Support B12 CB*3321-88 Body Cast Steel Wire Mesh - Stainless Steel 3

Installation Instructions for Marine Metal Elastic Support CB*3321-88
When using the metal elastic support, it is recommended to select the middle rated load for the elastic support based on the weight of the isolated object. This will help to better provide vibration isolation and impact resistance for the tunnel. Additionally, series supports should be used in order to reduce the stiffness and natural frequency of the system.
When installing each support point, it should correspond to the center of gravity of the isolated object, making sure that the force on each elastic support is uniform. The base surface should have a concave surface with two small holes (d3) on the support body. With this setup, a screwdriver can be used to facilitate bolt locking during installation. (As shown in the figure below)
Due to high requirements, the level should be adjusted a few weeks after installation. In addition, for vibration isolation of ship piping systems, please refer to the following schematic diagram - typical installation schematic diagram of elastic supports (various arrangements and sliding installations such as vertical pipelines and equipment elastic supports)


Customization For MWTAL ELASTIC SUPPORT:

Mwtal Elastic Support B12 CB*3321-88 Body Cast Steel Wire Mesh - Stainless Steel 4

We offer customized Marine Spare Parts for all your needs. Our brand name is FEIHANG and our model number is FH-type. Our products are made in Yangzhou, Jiangsu, China and come with a Factory Certificate, Test Report, and Material Report. Our minimum order quantity is 1pcs and the price is to be discussed personally. We offer export packaging and a delivery time of 1-2 days. We accept 100% prepaid payment and have the ability to supply up to 100pcs/days. Our Marine Spare Parts are made of Stainless Steel and Cast Steel and have a rated vertical load of 2500-70000(250-7000) N(kgf). The working pressure is 1.0-1.5Mpa. Our products include Marine deck drainage hole bolts, DECK SCUPPER PLUG, GUTTER PLUG, MWTAL ELASTIC SUPPORT with models A10, B12, and B14.



Support and Services For MWTAL ELASTIC SUPPORT:

Mwtal Elastic Support B12 CB*3321-88 Body Cast Steel Wire Mesh - Stainless Steel 5

We provide technical support and services for Marine Spare Parts. Our team of experienced professionals can help you with any inquiries or technical issues you may have. We offer phone, email, and live chat support to help you get the answers you need quickly. Our service team is available 24/7 to assist you with any questions or concerns you may have. We also offer a wide range of spare parts and accessories to help you keep your marine vessels in top condition. We provide high quality products at competitive prices, so you can be sure that you are getting the best value for your money.



Packing and Shipping For MWTAL ELASTIC SUPPORT:

Mwtal Elastic Support B12 CB*3321-88 Body Cast Steel Wire Mesh - Stainless Steel 6Mwtal Elastic Support B12 CB*3321-88 Body Cast Steel Wire Mesh - Stainless Steel 7

Marine spare parts should be packaged in a manner that protects them from moisture, dirt, dust, and other potentially damaging elements. Parts should be wrapped in a water-resistant material, such as plastic wrap or wax paper, before being placed in a box. If the parts are fragile, they should be surrounded with a cushioning material like foam or bubble wrap. The box should be clearly labeled with the part number and the destination address.

Shipping of marine spare parts should be done using a reliable and secure shipping service. Air and ground delivery services are available, and the choice of which to use should take into account the size and weight of the parts and the distance of the shipment. The package should be properly labeled and tracked to ensure it reaches its destination safely and on time.



FAQ For MWTAL ELASTIC SUPPORT:

Mwtal Elastic Support B12 CB*3321-88 Body Cast Steel Wire Mesh - Stainless Steel 8

Q1: What is the Brand Name of the Marine Spare Part?

A1: The Brand Name of the Marine Spare Part is FEIHANG.

Q2: What is the Model Number of the Marine Spare Part?

A2: The Model Number of the Marine Spare Part is FH-type.

Q3: Where is the Place of Origin of the Marine Spare Part?

A3: The Place of Origin of the Marine Spare Part is Yangzhou, Jiangsu, China.

Q4: What Certifications are available for the Marine Spare Part?

A4: The Certifications available for the Marine Spare Part are Factory certificate, test report, material report.

Q5: What is the Minimum Order Quantity for the Marine Spare Part?

A5: The Minimum Order Quantity for the Marine Spare Part is 1pcs.
