FH2701 CB693-75 Deck controller with universal joint/deck controller with universal joint

FH2701 CB693-75 Deck controller with universal joint/deck controller with universal joint

Place of Origin:

Yangzhou, Jiangsu, China

Brand Name:

FEIHANG

Certification:

Factory certificate, test report, material report

Model Number:

FH-type

Contact Us

Request A Quote
Product Details
Product Name:
MARINE OIL TANK DECK CONTROL DEVICE
Design Standards:
CB693-75
Material:
Stainless Steel, Cast Steel
Size:
So-24/So-27/So-32
Working Pressure:
1.0-1.5Mpa
Application:
Marine
Manipulating Objects:
Gate Valve
Model:
FH
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Discuss personally
Packaging Details
Export packaging
Delivery Time
1-2days
Payment Terms
100% prepaid
Supply Ability
100pcs/days
Product Description

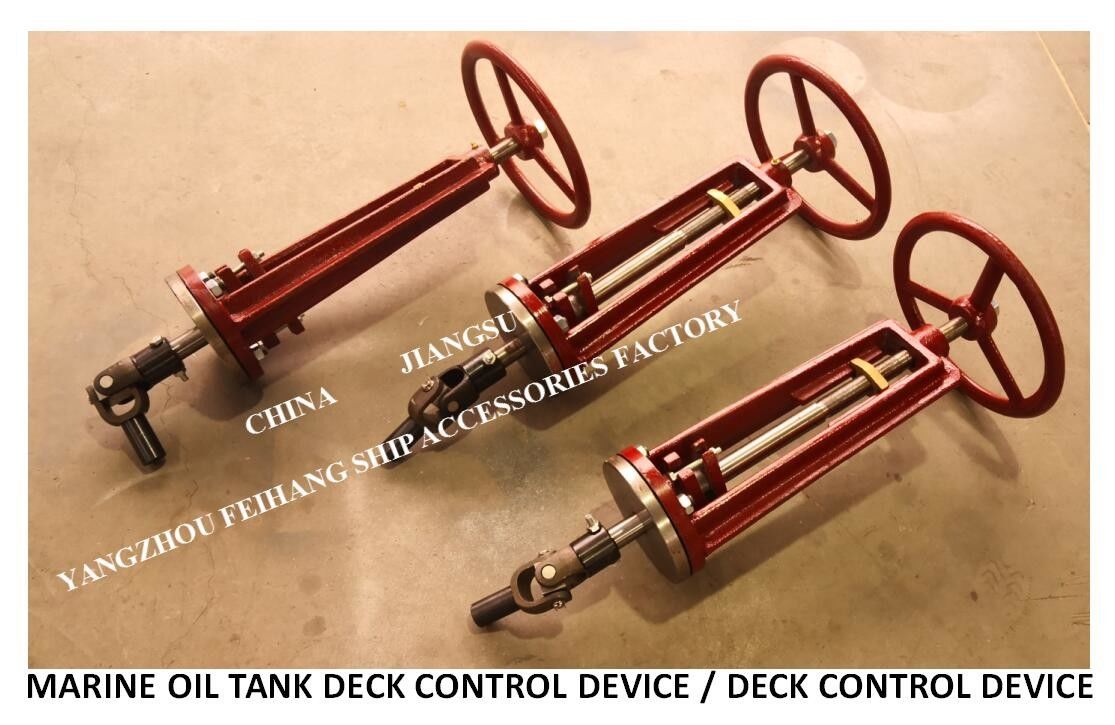

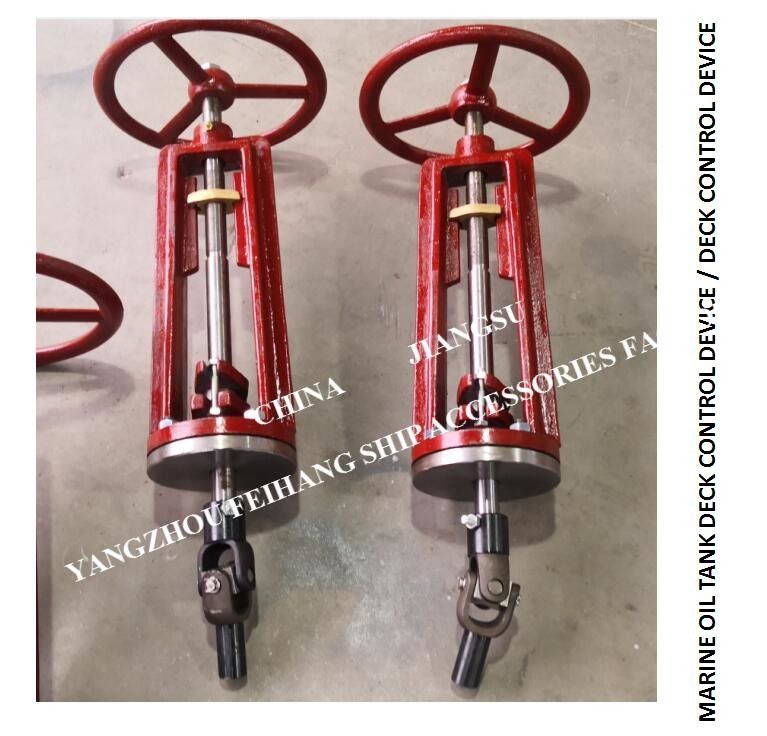

CB/T693-75 Marine Oil Tank Deck Control Device / Deck Control Device Material - Cast Steel

FH2701 CB693-75 Deck controller with universal joint/deck controller with universal joint 0

Product Description For Marine Oil Tank Deck Control Device:

FH2701 CB693-75 Deck controller with universal joint/deck controller with universal joint 1



The CB693-75 Marine Oil Tank Deck Control Device/Deck Control Device is designed for use with DN150-DN350 oil tanker flange cast steel gate valves. It has been approved according to the Shipbuilding Rules of CB/T693-75 “Ship Non-Return Valve for Oil Tank, guaranteeing that it is fit for purpose.

The Device has been engineered with an indicator device/an indicator device to show the open/close status of the valve, as well as a safety interlock/ a safety interlock device that helps to prevent accidental openings caused by the pressure. This offers an increased level of protection as well as peace of mind.



Features For Marine Oil Tank Deck Control Device:

FH2701 CB693-75 Deck controller with universal joint/deck controller with universal joint 2

The CB693-75 Oil Tank Deck Control Device/Deck Control Head Technical Agreement specifies the basic materials and parts required for its construction, as shown in the figure below. This includes the bracket and handwheel, which can be replaced with cast steel ZG25; also the bushing of the operator, filler seat, and intermediate bracket are allowed to be switched for nylon MC. It is specified that there should be no burrs on the surface of the bracket and handwheel.

Also, the travel indicator of the deck operator should be adjusted according to the actual situation after on-site installation, and the position mark of the indicator needle should be painted with dark paint. Afterwards, the deck control device should be inspected and accepted by the inspection department of the manufacturer, and a certificate of conformity should be issued. Finally, the deck control device must be accurately marked with a number 5 character on the seat frame, as well as the manufacturer, product model, and production year.



Technical Parameters For Marine Oil Tank Deck Control Device:

FH2701 CB693-75 Deck controller with universal joint/deck controller with universal joint 3

Parameter Value
Design standards CB693-75
Working pressure 1.0-1.5Mpa
Product Name MARINE OIL TANK DECK CONTROL DEVICE
Application Marine
Size So-24/So-27/So-32
Model FH
Manipulating Objects Gate Valve
Material Stainless Steel, Cast Steel



Applications For Marine Oil Tank Deck Control Device:

FH2701 CB693-75 Deck controller with universal joint/deck controller with universal joint 4

The CB693-75 is a marine oil tank deck control device with universal joint. It is mainly used for deck vessels. According to the square head side length of the vessel, it has three types:

  • For So=24mm, it is marked as FH2401 CB693-75
  • For So=27mm, it is marked as FH2701 CB693-75
  • For So=32mm, it is marked as FH3201 CB693-75


Customization For Marine Oil Tank Deck Control Device:

FH2701 CB693-75 Deck controller with universal joint/deck controller with universal joint 5

Marine Spare Part Customized Service

We offer customized service for Marine Spare Part, Brand Name: FEIHANG, Model Number: FH-type. This product is from Yangzhou, Jiangsu, China, comes with Factory certificate, test report, material report. Minimum Order Quantity is 1pcs, the price should be discussed personally. The packaging is export packaging, delivery time is 1-2days. Payment Terms is 100% prepaid, Supply Ability is 100pcs/days. Design standards is CB693-75, material is Stainless Steel, Cast Steel, application range is Marine, manipulating objects is Gate Valve. The product name is MARINE OIL TANK DECK CONTROL DEVICE. Especially, we emphasize the key words: GUTTER PLUG, Marine deck drainage hole plug, Marine deck drainage hole bolts.



Support and Services For Marine Oil Tank Deck Control Device:

FH2701 CB693-75 Deck controller with universal joint/deck controller with universal joint 6

Marine Spare Part Technical Support and Service

We provide technical support and service for Marine Spare Parts. Our service includes:

  • Troubleshooting of Marine Spare Parts
  • Repair of Marine Spare Parts
  • Replacement of Marine Spare Parts
  • Installation of Marine Spare Parts
  • Maintenance of Marine Spare Parts

We are committed to providing reliable and timely service to our customers. If you have any questions or need assistance with Marine Spare Parts, please contact us.

Packing and Shipping:

Marine Spare Part Packaging and Shipping:

Packaging: Marine spare parts are placed in sealed plastic bags or boxes, and then put into cartons for protection.

Shipping: The marine spare parts are shipped in a timely manner using reliable express services that provide tracking information.



FAQ:



Q1: What is the Brand Name of Marine Spare Part?
A1: The Brand Name of Marine Spare Part is FEIHANG.
Q2: What is the Model Number of Marine Spare Part?
A2: The Model Number of Marine Spare Part is FH-type.
Q3: Where is the Place of Origin for Marine Spare Part?
A3: The Place of Origin for Marine Spare Part is Yangzhou, Jiangsu, China.
Q4: What Certifications can you offer for Marine Spare Part?
A4: We provide Factory Certificate, Test Report, Material Report for Marine Spare Part.
Q5: What is the Minimum Order Quantity of Marine Spare Part?
A5: The Minimum Order Quantity of Marine Spare Part is 1pcs.
