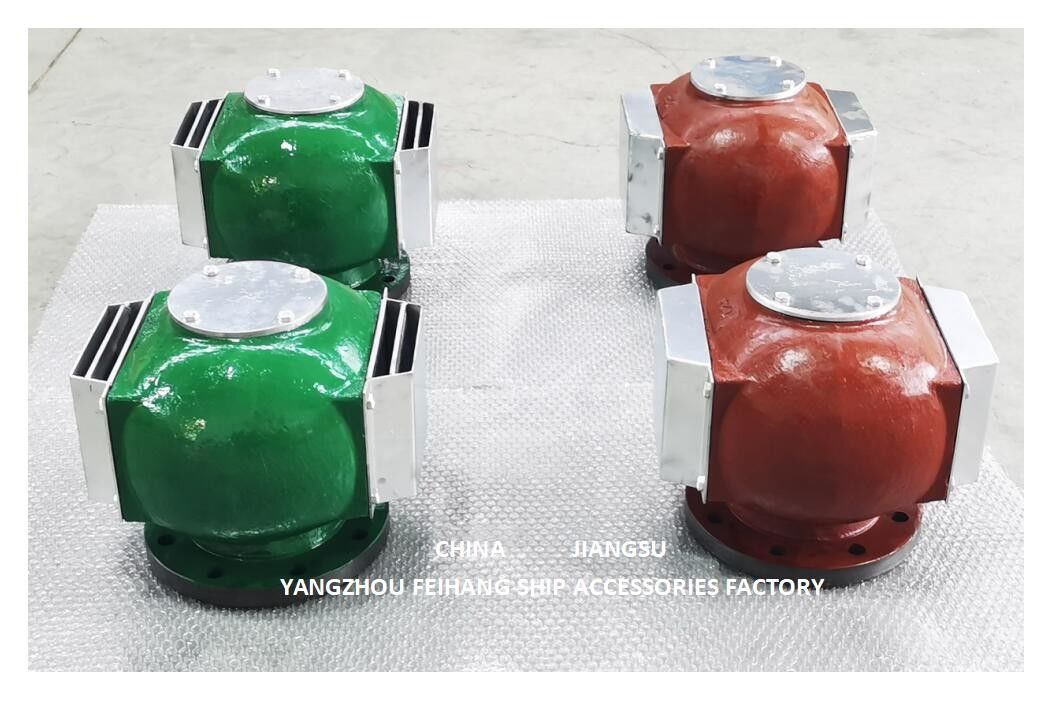

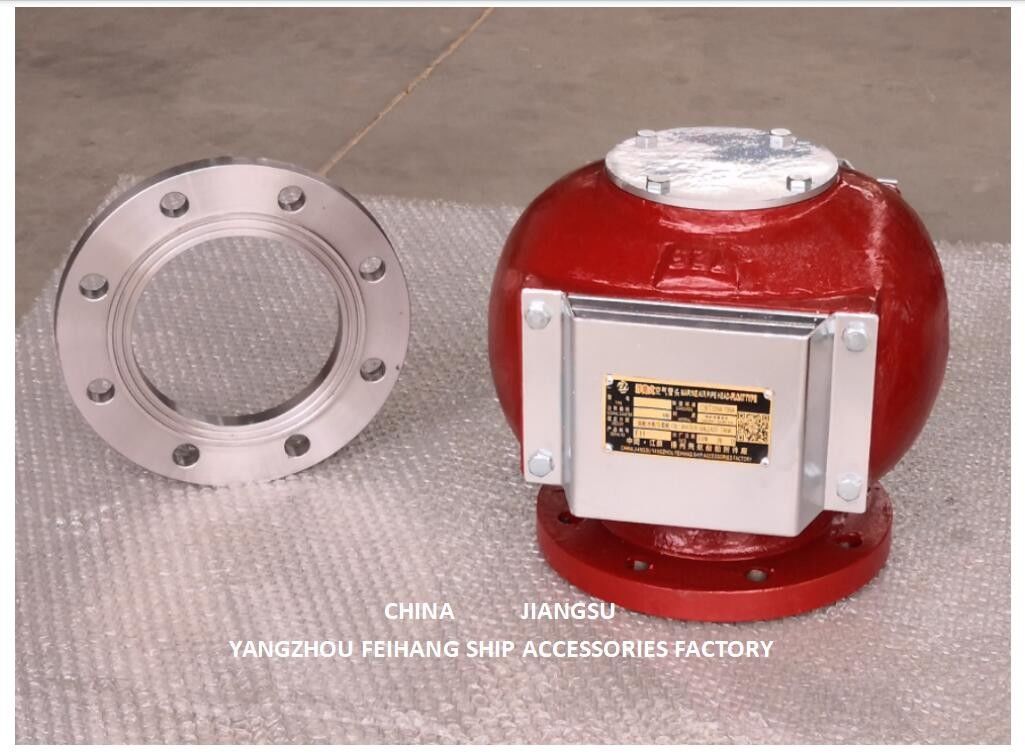

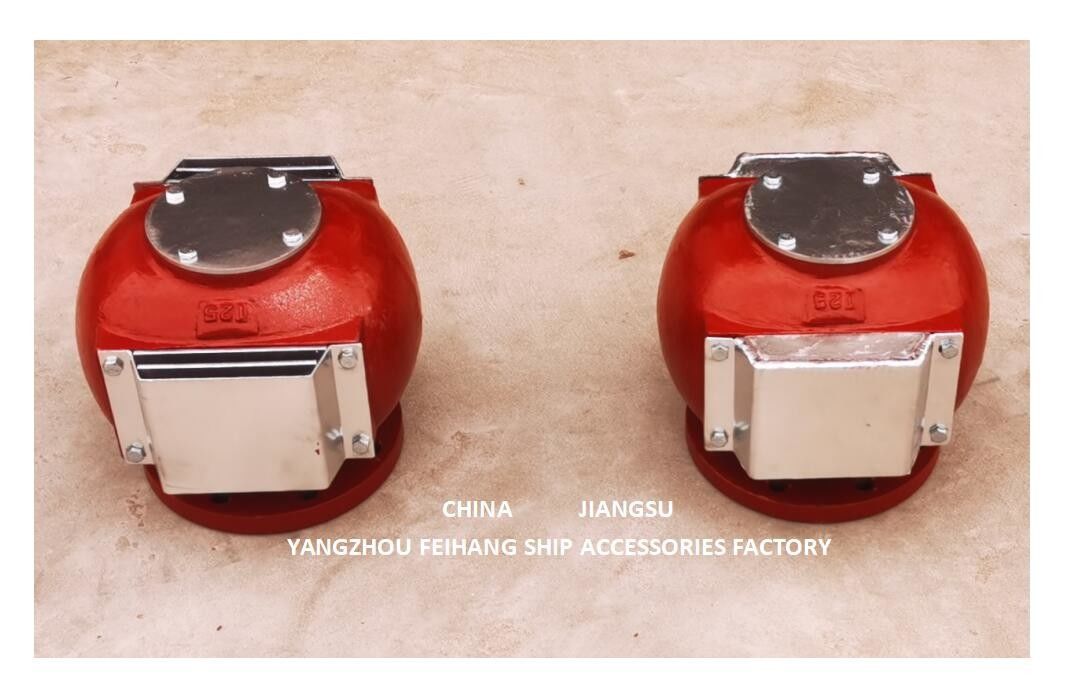

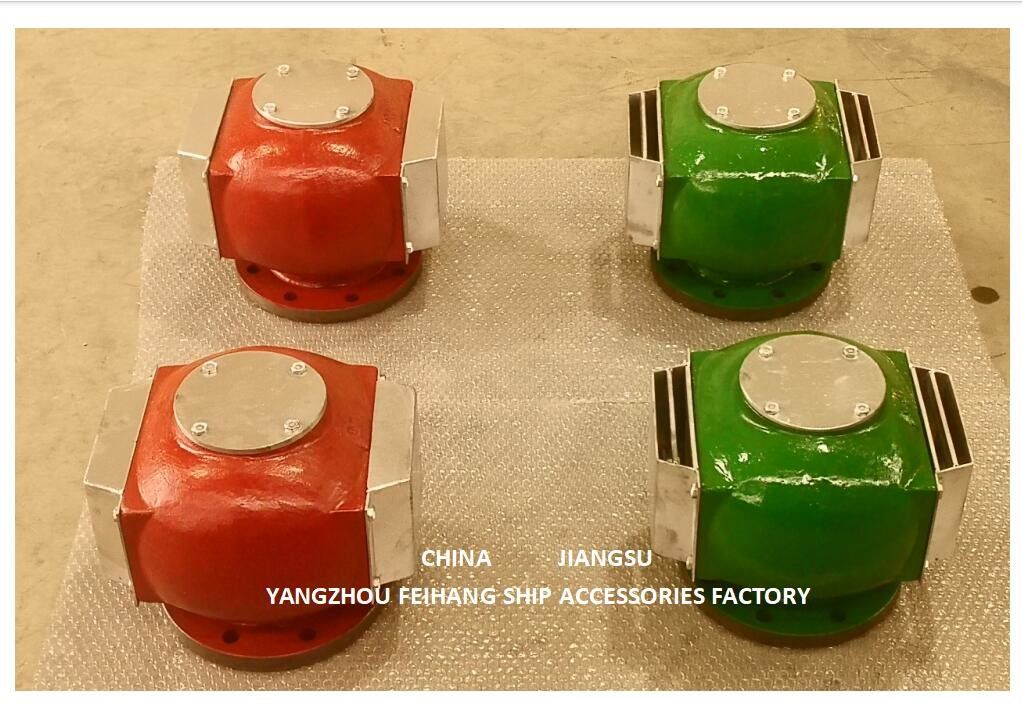

Float type air pipe head for F.O. settling tank Model:DS125HT CB/T3594-1994
Product Description For Air Vent Head / Air Pipe Head:
Marine air pipe head (with insect net) comes in two types: cylindrical and buoy type.
The cylindrical type consists of a marine water tank air pipe head (with insect net) and a marine water tank breathable cap (with insect net), which are both designed with an insect net.
The buoy type air pipe head (with insect proof net) consists of a marine water tank buoy type air pipe head (with insect proof net) and a marine water tank buoy type breathable cap (with insect proof net). Both of these items are designed with an insect proof net.
Additionally, a marine water tank air cap (with insect net) provides additional protection from insects.
Features For Air Vent Head / Air Pipe Head:
The Benefits of CB/T3594-1994 Marine Float Type Oil Tank Air Pipe Head
The CB/T3594-1994 Marine Float Type Oil Tank Air Pipe Head/Float Type Oil Tank Breathable Cap is very beneficial. It helps to maintain air pressure inside the tank close to atmospheric pressure through inhalation and respiration, keeping it within its design pressure. Not only that, it also helps to keep seawater, rainwater, and sparks from entering the tank. As well as the waves and debris from entering the breathable pipe into the tank.
The main components of this marine float type oil tank air pipehead are stainless steel floats and stainless steel floating discs, which contribute to its efficacy.
Technical Parameters For Air Vent Head / Air Pipe Head:
Technical Parameters For Air Vent Head / Air Pipe Head:
| DESIGN STANDARDS |
CB/T3594-1994
|
| TYPE |
FLOAT- TYPE
|
| NOMINAL DIAMETER |
5“-DN125
|
| NOMINAL PRESSURE |
0.3MPA
|
| BODY MATERIAL |
CAST IRON
|
| FLOATER MATERIAL |
SUS304/SUS316L
|
| SIDE COVER MATERIAL |
SUS304/SUS316L
|
| TOP COVER MATERIAL |
SUS304/SUS316L
|
| CONNECTION TYPE |
FLANGE TYPE
|
Marine Air Vent Head/Marine Air Pipe Head
This product meets the design standards: CB/T3594-1994. It is a float-type with nominal diameter ranging from 50A to 500A, and nominal pressure of 0.3MPA. The body material of this vent head is available in cast iron, ductile iron, SUS304 and SUS316L. In addition, its floater, side cover, and top cover are made of SUS304 and SUS316L respectively. Connection type is flange type and the flange standard could be GB/JIS/DIN/ANSI. Lastly, it is treated with epoxy paint as surface treatment.
This Marine Air Vent Head/Marine Air Pipe Head is applicable to various cabins of the ship with small water volume.
Applications For Air Vent Head / Air Pipe Head:
The FH-125A QT CB/T3594-94 is a kind of oil tank ventilation cap. It is equipped with a fire screen and is suitable for both engine oil tank and diesel cabin marine float type. In addition, this float type air pipe head can be used for fuel daily use cabinet, fuel settling tank and fuel overflow tank. It is made of stainless steel and is also equipped with a fireproof mesh.
Therefore, the ES80QT CB/T3594-94 is a versatile ventilation cap that is applicable to situations where the self-closing is needed. This special air pipe head also has a unique advantage in that it come with a float type breathable hat, providing fire prevention and specific venting.
Customization For Air Vent Head / Air Pipe Head:
Marine Air Vent Head
- Brand Name: FEIHANG
- Model Number: FH
- Place of Origin: Yangzhou, Jiangsu, China
- Certification: Factory certificate, test report, material report
- Minimum Order Quantity: 1pcs
- Price: Discuss personally
- Packaging Details: Export packaging
- Delivery Time: 1-2days
- Payment Terms: 100% prepaid
- Supply Ability: 100pcs/days
- Pressure: 0.3Mpa
- Product Name: Marine Air Vent Head
- Type: FLOAT TYPE OR FLOATBALL TYPE
- Application: Marine
- Working Temperature: -20℃~+120℃
FEIHANG Marine Air Pipe Head, Marine Breathable cap, AIR PIPE HEAD, is designed for marine use, with high pressure, 0.3Mpa, and temperature resistance, -20℃~+120℃. It has the certification of factory certificate, test report, material report. Minimum order quantity is 1pcs, and the price can be discussed personally. It can be supplied in 100pcs/days, and the export packaging ensures the delivery time of 1-2 days, with 100% prepaid payment terms.
HOW TO ORDER FOR THE
Support and Services For Air Vent Head / Air Pipe Head:
Marine Air Vent Head offers technical support and services for our customers. Our team of experienced technicians is available to help answer any questions you may have about our products. We provide comprehensive and accurate technical information about our products and will work to ensure you are satisfied with your purchase.
We provide on-site installation and maintenance services for our Marine Air Vent Heads. Our technicians are knowledgeable and experienced in working with marine air systems and will provide you with the best possible service. We also provide technical support over the phone, so you can get the answers you need quickly and easily.
In addition to our technical support and service, we also offer a warranty on our Marine Air Vent Heads. We stand behind our products and are committed to providing the highest quality products and services.
Packing and Shipping For Air Vent Head / Air Pipe Head:
Packaging and Shipping
The Marine Air Vent Head is securely packaged in a corrugated cardboard box and shipped by a reputable carrier.
To ensure its safe delivery, this product is wrapped with protective bubble wrap and then placed in a box. The box is labeled with the product name and address of the sender.
The box is sealed with a heavy-duty tape to ensure that the product remains secure during transit.
HOW TO ORER FOR THE Marine air pipe head (with insect net) - Marine water tank air pipe head (with insect net) CB/T3594-1994
AIR VENT HEAD-D-DS-E-ES.pdf
FAQ For Air Vent Head / Air Pipe Head:
Q1: What is the brand name of this Marine Air Vent Head?
A1: The brand name of this Marine Air Vent Head is FEIHANG.
Q2: What's the model number of this Marine Air Vent Head?
A2: The model number of this Marine Air Vent Head is FH.
Q3: Where is this Marine Air Vent Head made?
A3: This Marine Air Vent Head is made in Yangzhou, Jiangsu, China.
Q4: What certifications does this Marine Air Vent Head have?
A4: This Marine Air Vent Head has Factory certificate, test report, material report.
Q5: What is the minimum order quantity of this Marine Air Vent Head?
A5: The minimum order quantity of this Marine Air Vent Head is 1pcs.
CHINA JIANGSU YANGZHOU FEIHANG SHIP ACCESSORIES FACTORY
COMPETITIVE ADVANTAGE
1. Factory direct sale, competitive price.
2. Customized Service: We can customize, to customers drawings for processing. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: Our Product are strictly complied with China Compulsory Certification. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Delivery Time: after receiving the payment within 24-72 hours to Timely arrange raw materials, processing, production, and timely delivery.
Advantages:
1. Excellent and high quality control
2. Fast delivery
3. Competitive price
4. Small order accepted
5. Customers' drawing or samples accepted
6.Assembly line production process, assembly line depth sounding equipment
Delivery time is approx:
1. We will test them strictly before shipping.
2. We will ship it in 1-3 working days after your paying.as to the shipping time,it usually will be 6- 12 days,which will be different for different countries.
3.You can choose DHL, UPS, TNT and other international express for delivery. At the same time, it can also be sent to the freight forwarder designated by the customer (anywhere in China)
FAQ:
1. How about your price?
We specialize in customized high-quality promotional items for you and can help you meet any requirement with the most reasonable price
2. Can you produce the product as our sample or design?
Yes,we can.OEM&ODM are welcome. As long as you give us the detailed specific requirement,we can absolutely make the same samples and send to you for approval.
3. Could you send me all your catalogues and price list?
We have over thousands of products. it is really too hard for us to send you all our
catalogue and price list for you, please let us know the items, size details which you
are interested in, so we can offer you the price list for you reference.
