Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head

Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head

Place of Origin:

Yangzhou, Jiangsu, China

Brand Name:

FEIHANG

Certification:

Factory certificate, test report, material report

Model Number:

FH

Contact Us

Request A Quote
Product Details
PRODUCT NAME::
MARINE AIR VENT HEAD/MARINE AIR PIPE HEAD
DESIGN STANDARDS:
CB/T3594-1994
TYPE:
FLOAT- TYPE
NOMINAL DIAMETER:
3"-80A
NOMINAL PRESSURE:
0.3MPA
BODY MATERIAL:
CAST IRON OR QT400
Working Temperature:
-20℃~+120℃
FLOATER MATERIAL:
SUS304/SUS316L
SIDE COVER MATERIAL:
SUS304/SUS316L
TOP COVER MATERIAL:
SUS304/SUS316L
CONNECTION TYPE:
FLANGE TYPE
FLANGE STANDARD:
GB/JIS/DIN/ANSI
SURFACE TREATMENT:
EPOXY PAINT
BE APPLICABLE:
VARIOUS CABINS OF THE SHIP
MODEL1:
D,DS-Oil Tank
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Discuss personally
Packaging Details
Export packaging
Delivery Time
1-2days
Payment Terms
100% prepaid
Supply Ability
100pcs/days
Product Description

Ballast Tank Breather Cap-Float Type Ballast Tank Air Pipe Head (With Fire Net) ES80QT CB/T3594-1994

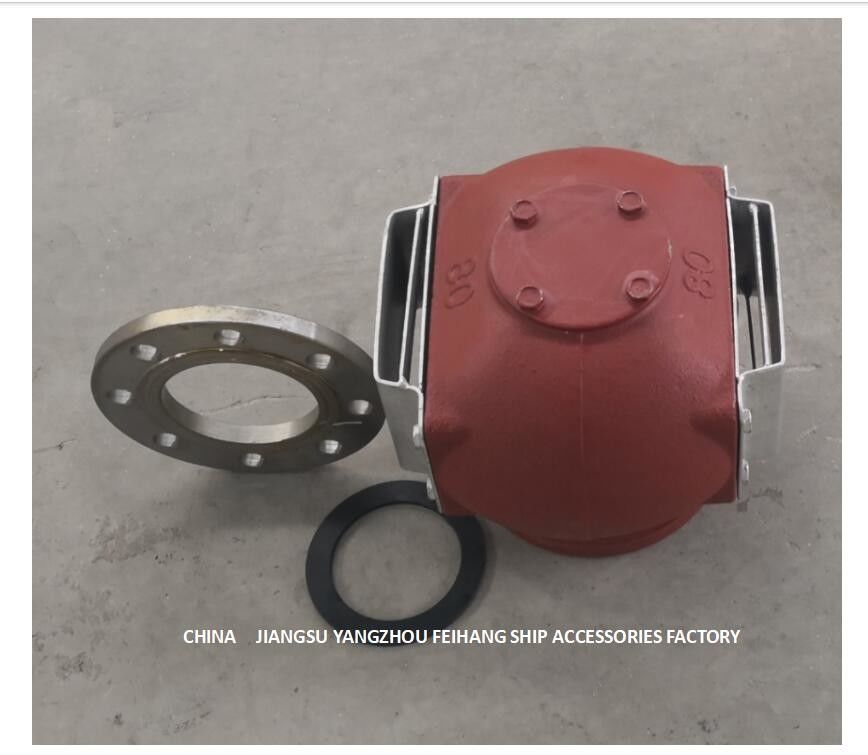

Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 0



Product Description  For Air Vent Head / Air Pipe Head:

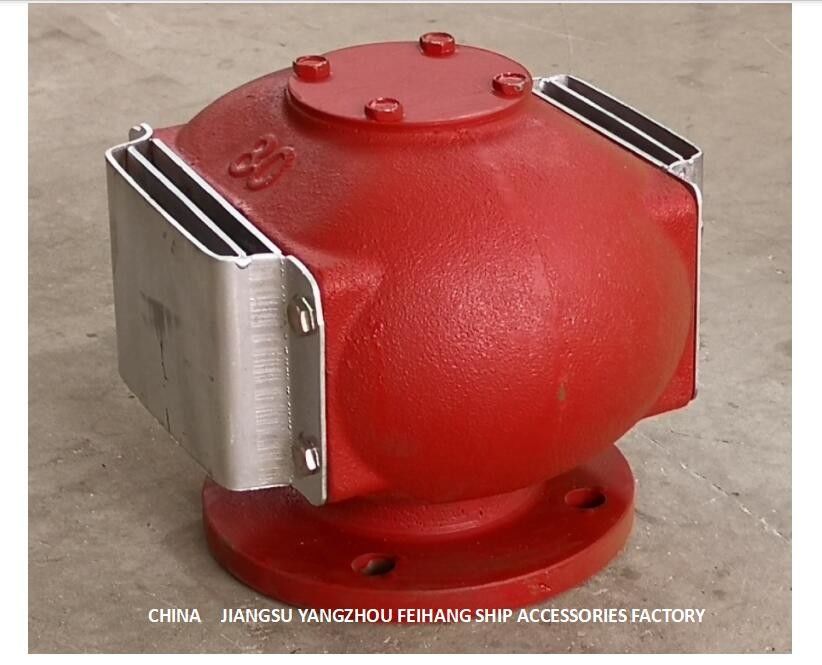

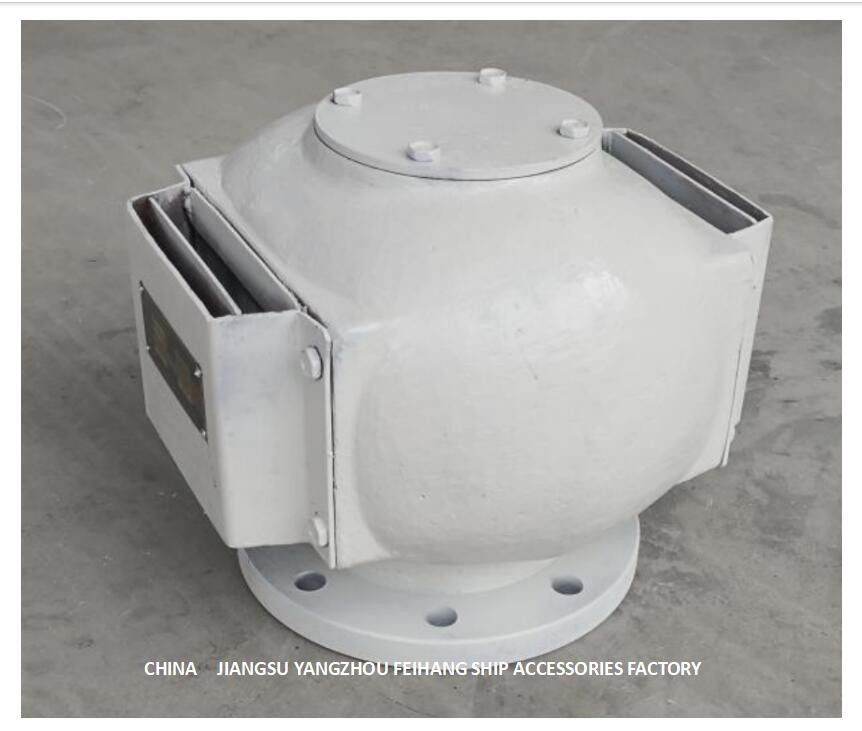

Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 1Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 2

Marine air pipe head (with insect net) comes in two types: cylindrical and buoy type.

The cylindrical type consists of a marine water tank air pipe head (with insect net) and a marine water tank breathable cap (with insect net), which are both designed with an insect net.

The buoy type air pipe head (with insect proof net) consists of a marine water tank buoy type air pipe head (with insect proof net) and a marine water tank buoy type breathable cap (with insect proof net). Both of these items are designed with an insect proof net.

Additionally, a marine water tank air cap (with insect net) provides additional protection from insects.



Features For Air Vent Head / Air Pipe Head:

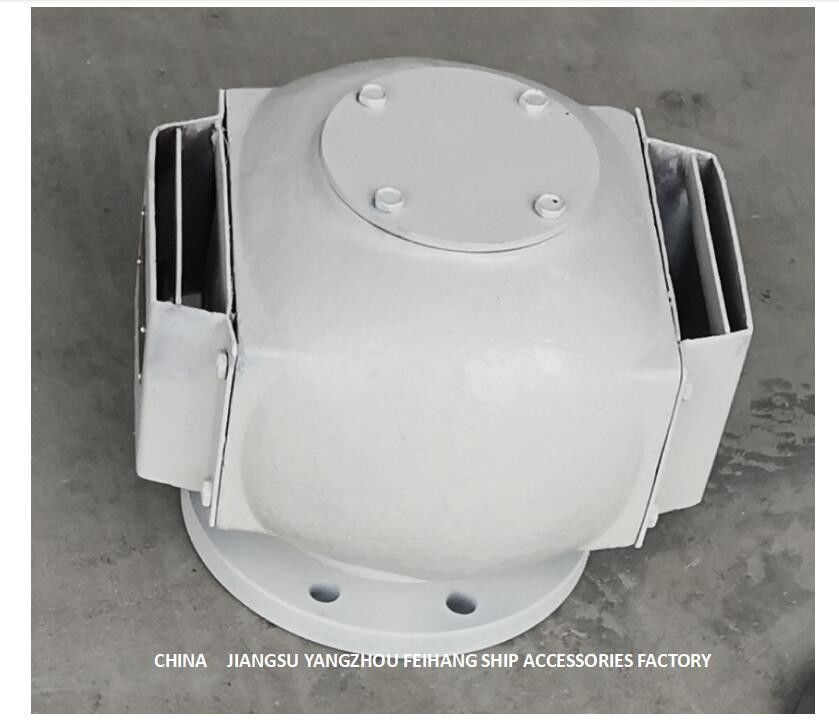

Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 3Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 4

The Benefits of CB/T3594-1994 Marine Float Type Oil Tank Air Pipe Head

The CB/T3594-1994 Marine Float Type Oil Tank Air Pipe Head/Float Type Oil Tank Breathable Cap is very beneficial. It helps to maintain air pressure inside the tank close to atmospheric pressure through inhalation and respiration, keeping it within its design pressure. Not only that, it also helps to keep seawater, rainwater, and sparks from entering the tank. As well as the waves and debris from entering the breathable pipe into the tank.

Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 5

The main components of this marine float type oil tank air pipehead are stainless steel floats and stainless steel floating discs, which contribute to its efficacy.



Technical Parameters For Air Vent Head / Air Pipe Head:

Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 6Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 7



Technical Parameters For Air Vent Head / Air Pipe Head:





DESIGN STANDARDS

CB/T3594-1994

TYPE

FLOAT- TYPE

NOMINAL DIAMETER

3“-DN80

NOMINAL PRESSURE

0.3MPA

BODY MATERIAL

CAST IRON

FLOATER MATERIAL

SUS304/SUS316L

SIDE COVER MATERIAL

SUS304/SUS316L

TOP COVER MATERIAL

SUS304/SUS316L

CONNECTION TYPE

FLANGE TYPE







Marine Air Vent Head/Marine Air Pipe Head

This product meets the design standards: CB/T3594-1994. It is a float-type with nominal diameter ranging from 50A to 500A, and nominal pressure of 0.3MPA. The body material of this vent head is available in cast iron, ductile iron, SUS304 and SUS316L. In addition, its floater, side cover, and top cover are made of SUS304 and SUS316L respectively. Connection type is flange type and the flange standard could be GB/JIS/DIN/ANSI. Lastly, it is treated with epoxy paint as surface treatment.

This Marine Air Vent Head/Marine Air Pipe Head is applicable to various cabins of the ship with small water volume.



Applications For Air Vent Head / Air Pipe Head:

Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 8

The DS80QT CB/T3594-94 is a kind of oil tank ventilation cap. It is equipped with a fire screen and is suitable for both engine oil tank and diesel cabin marine float type. In addition, this float type air pipe head can be used for fuel daily use cabinet, fuel settling tank and fuel overflow tank. It is made of stainless steel and is also equipped with a fireproof mesh.

Therefore, the ES80QT CB/T3594-94 is a versatile ventilation cap that is applicable to situations where the self-closing is needed. This special air pipe head also has a unique advantage in that it come with a float type breathable hat, providing fire prevention and specific venting.



Customization For Air Vent Head / Air Pipe Head:

Marine Air Vent Head

  • Brand Name: FEIHANG
  • Model Number: FH
  • Place of Origin: Yangzhou, Jiangsu, China
  • Certification: Factory certificate, test report, material report
  • Minimum Order Quantity: 1pcs
  • Price: Discuss personally
  • Packaging Details: Export packaging
  • Delivery Time: 1-2days
  • Payment Terms: 100% prepaid
  • Supply Ability: 100pcs/days
  • Pressure: 0.3Mpa
  • Product Name: Marine Air Vent Head
  • Type: FLOAT TYPE OR FLOATBALL TYPE
  • Application: Marine
  • Working Temperature: -20℃~+120℃

FEIHANG Marine Air Pipe Head, Marine Breathable cap, AIR PIPE HEAD, is designed for marine use, with high pressure, 0.3Mpa, and temperature resistance, -20℃~+120℃. It has the certification of factory certificate, test report, material report. Minimum order quantity is 1pcs, and the price can be discussed personally. It can be supplied in 100pcs/days, and the export packaging ensures the delivery time of 1-2 days, with 100% prepaid payment terms.



According to different customer requirements, the flange sizes of DN80 air pipe heads can be selected as follows:​

Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 9Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 10









In order to enhance anti-corrosion and reduce the frequency of future maintenance, we can recommend more cost-effective configuration solutions for you:

Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 11

The side covers, top covers, and fasteners of the air pipe head/oil and water tank ventilation cap for this ship can be produced and processed using stainless steel material:



Support and Services For Air Vent Head / Air Pipe Head:

Marine Air Vent Head offers technical support and services for our customers. Our team of experienced technicians is available to help answer any questions you may have about our products. We provide comprehensive and accurate technical information about our products and will work to ensure you are satisfied with your purchase.

We provide on-site installation and maintenance services for our Marine Air Vent Heads. Our technicians are knowledgeable and experienced in working with marine air systems and will provide you with the best possible service. We also provide technical support over the phone, so you can get the answers you need quickly and easily.

In addition to our technical support and service, we also offer a warranty on our Marine Air Vent Heads. We stand behind our products and are committed to providing the highest quality products and services.



Packing and Shipping For Air Vent Head / Air Pipe Head:

Floaitng Disc Air Cap For Fresh Water Tank Model:ES80 CB/T3594-94 Marine Air Pipe Head 12

Packaging and Shipping

The Marine Air Vent Head is securely packaged in a corrugated cardboard box and shipped by a reputable carrier.

To ensure its safe delivery, this product is wrapped with protective bubble wrap and then placed in a box. The box is labeled with the product name and address of the sender.

The box is sealed with a heavy-duty tape to ensure that the product remains secure during transit.
