Place of Origin:
Yangzhou, Jiangsu, China
Brand Name:
FEIHANG
Certification:
Factory certificate, test report, material report
Model Number:
FH
Contact Us
Marine air pipe head (with insect net) comes in two types: cylindrical and buoy type.
The cylindrical type consists of a marine water tank air pipe head (with insect net) and a marine water tank breathable cap (with insect net), which are both designed with an insect net.
The buoy type air pipe head (with insect proof net) consists of a marine water tank buoy type air pipe head (with insect proof net) and a marine water tank buoy type breathable cap (with insect proof net). Both of these items are designed with an insect proof net.
Additionally, a marine water tank air cap (with insect net) provides additional protection from insects.

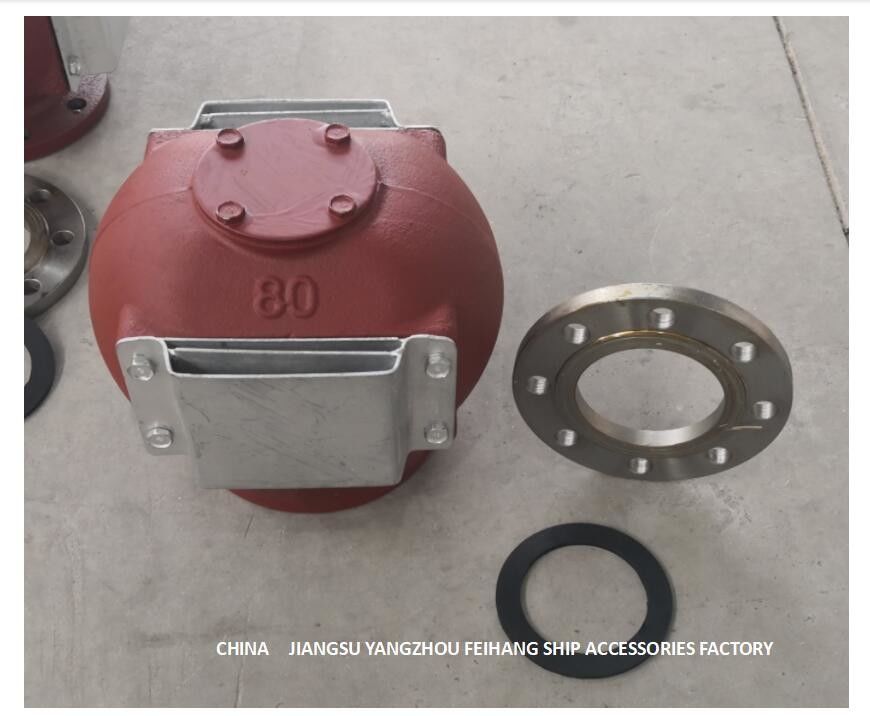

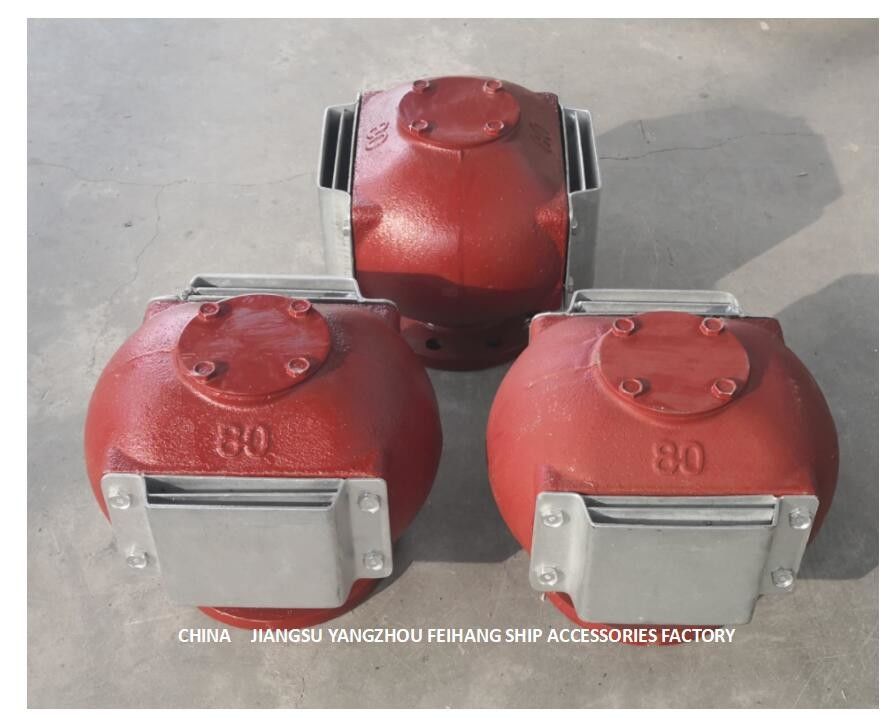

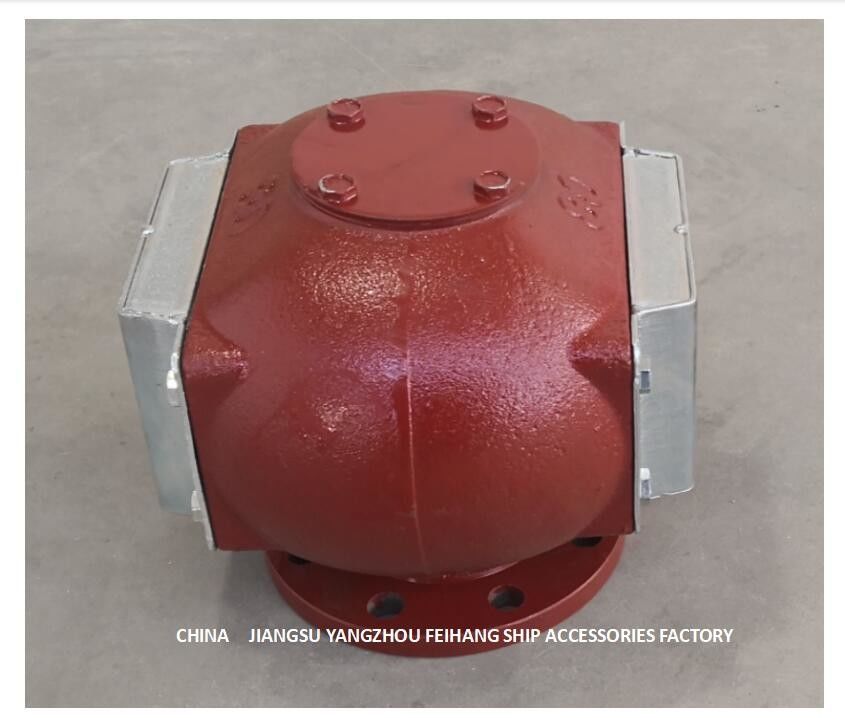

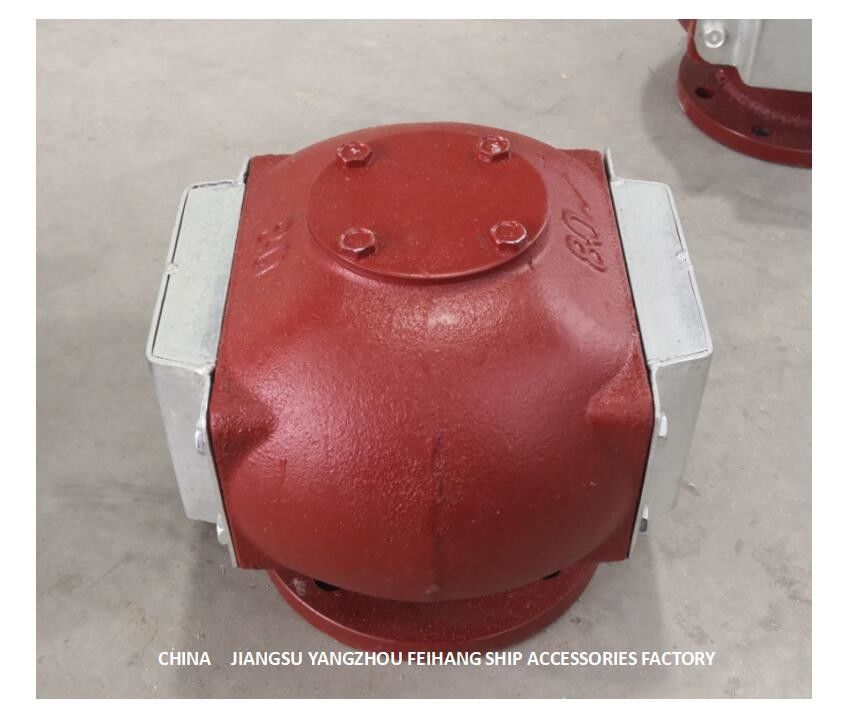

The CB/T3594-1994 Marine Float Type Oil Tank Air Pipe Head/Float Type Oil Tank Breathable Cap is very beneficial. It helps to maintain air pressure inside the tank close to atmospheric pressure through inhalation and respiration, keeping it within its design pressure. Not only that, it also helps to keep seawater, rainwater, and sparks from entering the tank. As well as the waves and debris from entering the breathable pipe into the tank.
The main components of this marine float type oil tank air pipehead are stainless steel floats and stainless steel floating discs, which contribute to its efficacy.
DESIGN STANDARDS |
CB/T3594-1994 |
TYPE |
FLOAT- TYPE |
NOMINAL DIAMETER |
3“-DN80 |
NOMINAL PRESSURE |
0.3MPA |
BODY MATERIAL |
CAST IRON |
FLOATER MATERIAL |
SUS304/SUS316L |
SIDE COVER MATERIAL |
SUS304/SUS316L |
TOP COVER MATERIAL |
SUS304/SUS316L |
CONNECTION TYPE |
FLANGE TYPE |
Marine Air Vent Head/Marine Air Pipe Head
This product meets the design standards: CB/T3594-1994. It is a float-type with nominal diameter ranging from 50A to 500A, and nominal pressure of 0.3MPA. The body material of this vent head is available in cast iron, ductile iron, SUS304 and SUS316L. In addition, its floater, side cover, and top cover are made of SUS304 and SUS316L respectively. Connection type is flange type and the flange standard could be GB/JIS/DIN/ANSI. Lastly, it is treated with epoxy paint as surface treatment.
This Marine Air Vent Head/Marine Air Pipe Head is applicable to various cabins of the ship with small water volume.
The DS80QT CB/T3594-94 is a kind of oil tank ventilation cap. It is equipped with a fire screen and is suitable for both engine oil tank and diesel cabin marine float type. In addition, this float type air pipe head can be used for fuel daily use cabinet, fuel settling tank and fuel overflow tank. It is made of stainless steel and is also equipped with a fireproof mesh.
Therefore, the ES80QT CB/T3594-94 is a versatile ventilation cap that is applicable to situations where the self-closing is needed. This special air pipe head also has a unique advantage in that it come with a float type breathable hat, providing fire prevention and specific venting.
Marine Air Vent Head
FEIHANG Marine Air Pipe Head, Marine Breathable cap, AIR PIPE HEAD, is designed for marine use, with high pressure, 0.3Mpa, and temperature resistance, -20℃~+120℃. It has the certification of factory certificate, test report, material report. Minimum order quantity is 1pcs, and the price can be discussed personally. It can be supplied in 100pcs/days, and the export packaging ensures the delivery time of 1-2 days, with 100% prepaid payment terms.
According to different customer requirements, the flange sizes of DN80 air pipe heads can be selected as follows:
Marine Air Vent Head offers technical support and services for our customers. Our team of experienced technicians is available to help answer any questions you may have about our products. We provide comprehensive and accurate technical information about our products and will work to ensure you are satisfied with your purchase.
We provide on-site installation and maintenance services for our Marine Air Vent Heads. Our technicians are knowledgeable and experienced in working with marine air systems and will provide you with the best possible service. We also provide technical support over the phone, so you can get the answers you need quickly and easily.
In addition to our technical support and service, we also offer a warranty on our Marine Air Vent Heads. We stand behind our products and are committed to providing the highest quality products and services.
The Marine Air Vent Head is securely packaged in a corrugated cardboard box and shipped by a reputable carrier.
To ensure its safe delivery, this product is wrapped with protective bubble wrap and then placed in a box. The box is labeled with the product name and address of the sender.
The box is sealed with a heavy-duty tape to ensure that the product remains secure during transit.
CHINA JIANGSU YANGZHOU FEIHANG SHIP ACCESSORIES FACTORY
COMPETITIVE ADVANTAGE
1. Factory direct sale, competitive price.
2. Customized Service: We can customize, to customers drawings for processing. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: Our Product are strictly complied with China Compulsory Certification. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Delivery Time: after receiving the payment within 24-72 hours to Timely arrange raw materials, processing, production, and timely delivery.
Advantages:
1. Excellent and high quality control
2. Fast delivery
3. Competitive price
4. Small order accepted
5. Customers' drawing or samples accepted
6.Assembly line production process, assembly line depth sounding equipment
Delivery time is approx:
1. We will test them strictly before shipping.
2. We will ship it in 1-3 working days after your paying.as to the shipping time,it usually will be 6- 12 days,which will be different for different countries.
3.You can choose DHL, UPS, TNT and other international express for delivery. At the same time, it can also be sent to the freight forwarder designated by the customer (anywhere in China)
