Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657-

Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657-

International Shore Connection DN150

wastewater International Shore Connection

Place of Origin:

Yangzhou, Jiangsu, China

Brand Name:

FEIHANG

Certification:

Factory certificate, test report, material report

Model Number:

A,AS,B,BS-type

Contact Us

Request A Quote
Product Details
Product Name:
International Shore Connection
Design Standards:
CB/T3572-2011
Type1:
A,AS-Oily Wastewater
Type2:
Domestic Sewage
NOMINAL DIAMETER:
DN20-DN150
Pressure Range:
3.0MPa
Working Medium:
Sea Water
Application:
Oil Sewage, Domestic Sewage, Fire Protection
Working Pressure:
3.0MPa
SURFACE TREATMENT:
HOT-DIP GALVANIZED, EPOXY PAINT,NATURAL COLOR OF STAINLESS STEEL
Material:
Carbon Steel, Stainless Steel
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Discuss personally
Packaging Details
Export packaging
Delivery Time
1-2days
Payment Terms
100% prepaid
Supply Ability
100pcs/days
Product Description

73/78 Marpol Convention-Rules For The Prevention Of Ship Oil And Sewage International Shore Connection CB/T3657-2011

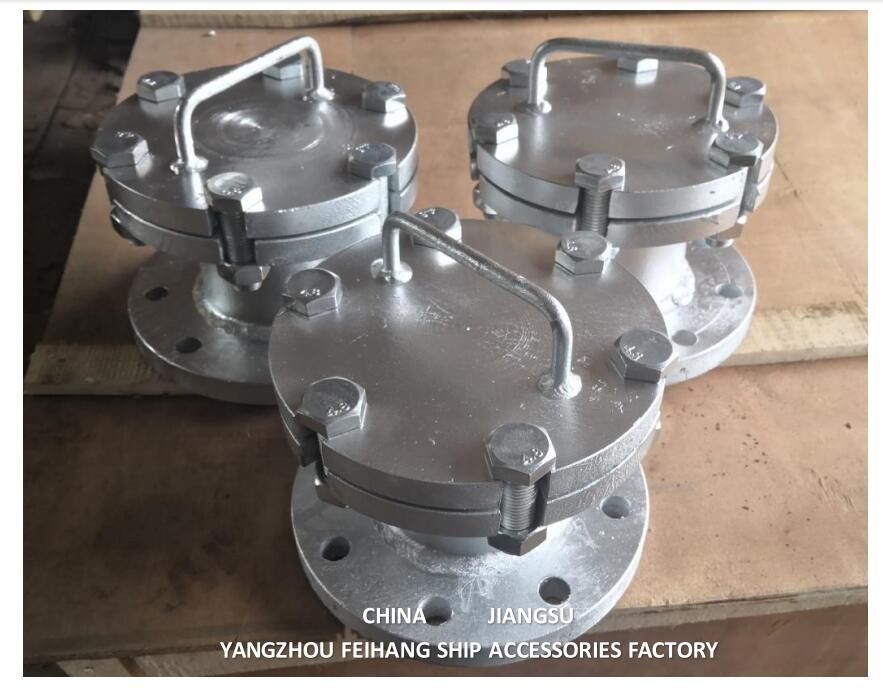

Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657- 0

Product Description For  International Shore Connection:

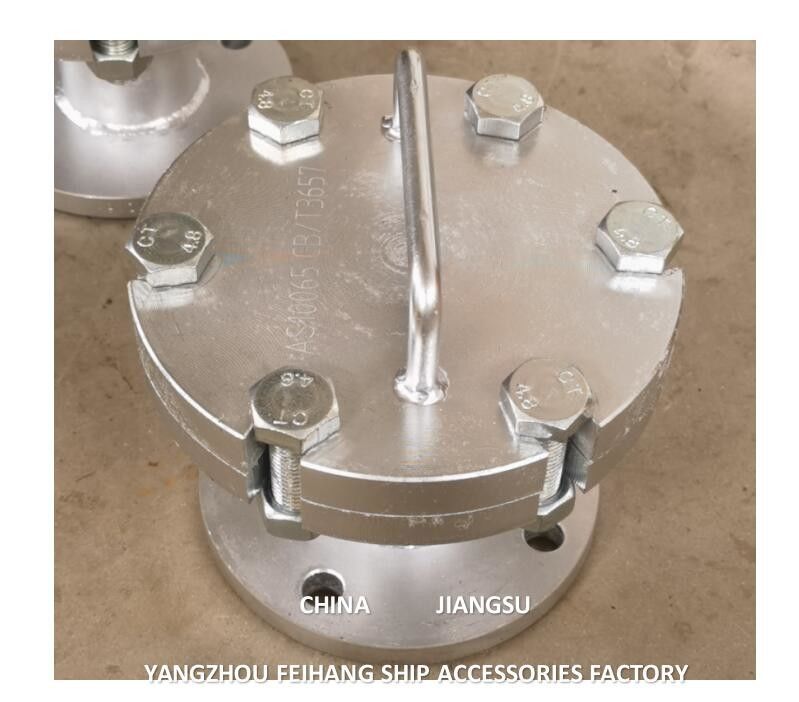

Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657- 1

MARPOL is an international treaty designed to prevent pollution of the oceans from ships. It lays out a set of rules and regulations governing the discharge of sewage, wastewater, and oily sewage from ships into international waters.

In order to maximise the prevention of pollution, ships need to be equipped with specific connections to enable them to connect to shore connections for the discharge of sewage and wastewater. To this end, CB/T3657-2011 specifies the requirements for such connections.



Features For International Shore Connection:

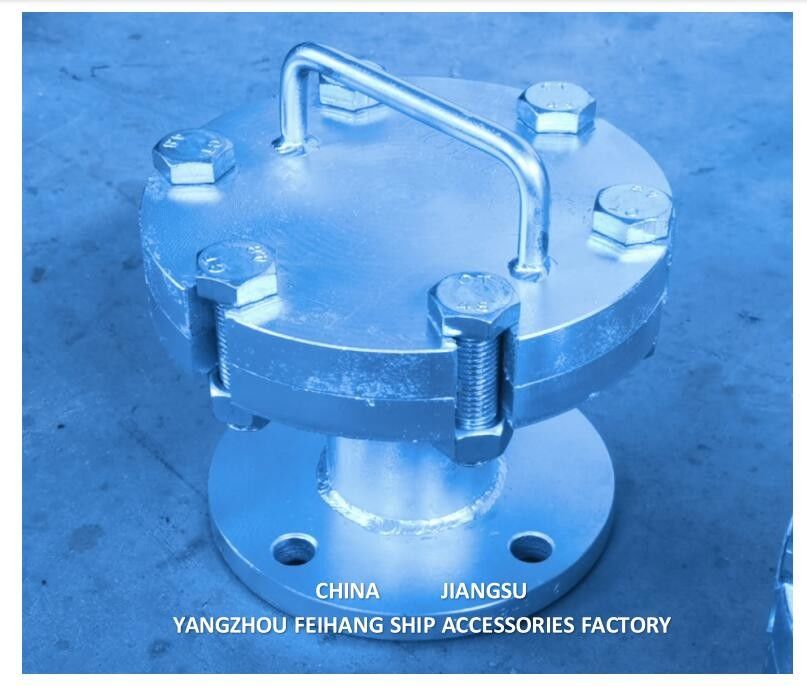

Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657- 2

  • Product Name: International Shore Connection
  • Application: Oil Sewage, Domestic Sewage, Fire Protection
  • NOMINAL DIAMETER: 20-150A
  • Connection Mode: Flange
  • Material: Carbon Steel, Stainless Steel
  • Domestic sewage discharge joint
  • Oil and sewage shore connection
  • Fire Protection Connection
  • Flange connection


Technical Parameters For International Shore Connection:

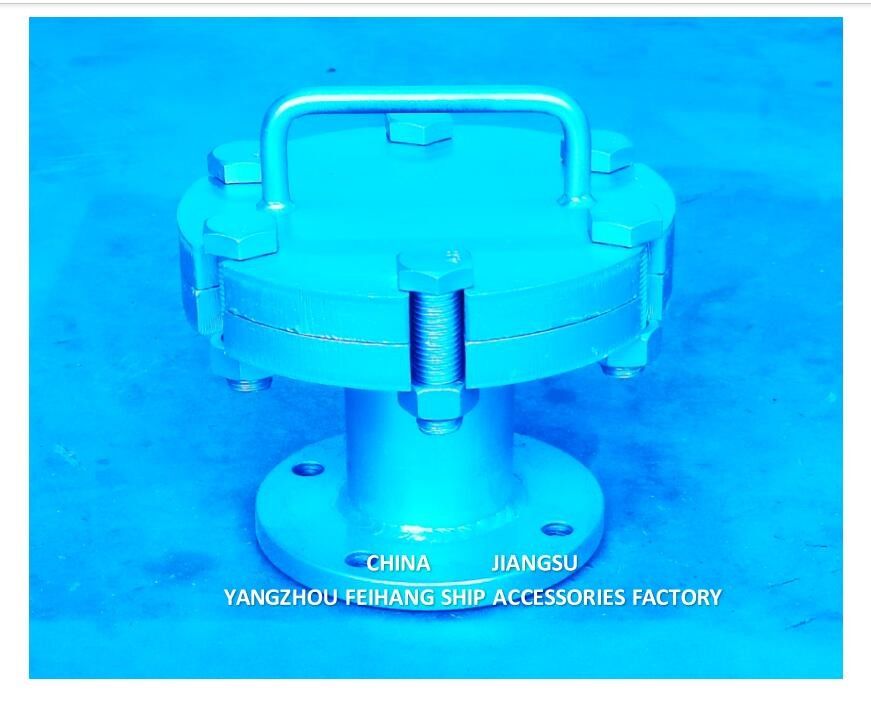

Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657- 3Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657- 4

Parameter Value
Product Name International Shore Connection
Pressure Range 3.0MPa
Design Standards CB/T3572-2011
Application Oil Sewage, Domestic Sewage, Fire Protection
Connection Mode Flange
Nominal Diameter 20-150A
Surface Treatment HOT-DIP GALVANIZED, EPOXY PAINT, NATURAL COLOR OF STAINLESS STEEL
Material Carbon Steel, Stainless Steel
Working Medium Sea Water
Working Pressure 3.0MPa


Applications For International Shore Connection:

International Shore Connection is a brand name of FEIHANG, which is a professional manufacturer of sewage shore connection equipment. With model number A, AS, B and BS-type, this product is made of carbon steel and stainless steel material with hot-dip galvanized and epoxy paint surface treatment. It is certified by factory certificate, test report and material report. It is suitable for sea water with working pressure of 3.0MPa. The minimum order quantity is 1pcs, and the price is discussed personally. The delivery time is 1-2 days, and 100 pcs can be supplied in one day. It is mainly used for oil sewage, domestic sewage and fire protection. The packaging is export packaging, and the payment term is 100% prepaid.



Ship oil sewage discharge joint, A/AS/AJ type oil sewage shore connection, international shore connection



A,AS Type INTERNATIONAL SHORE CONNECTION

Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657- 5



OUTER DIAMETER

215MM

INNER DIAMETER

ACCORDING TO THE OUTER DIAMETER OF THE PIPE

DIAMETER OF THE BOLT JOINT GARDEN

183MM

FLANGE NOTCHES

6 HOLES WITH A DIAMETER OF 22MM ARE EQUALLY SPACED ON THE DIAMETER OF THE BOLT RING, FROM THE NOTCH TO THE OUTER EDGE OF THE FLANGE, AND THE NOTCH IS 22MM WIDE

FLANGE THICKNESS

20MM

BOLTS AND NUTS

M20*6, THE LENGTH IS APPROPRIATE

Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657- 6
According to Article 13 of Annex I of the International Convention for the Prevention of Pollution (MARPOL), this international shore connection is used to discharge residues from the ship's engine room bilge and residual oil (sludge) tanks to the shore.
The pipeline system for entering and exiting the residual oil (sludge) tank should not have any direct overboard discharge joints except for the standard discharge joints mentioned above





Ship domestic sewage discharge connection, B, BS, BJ type domestic sewage shore connection, international shore connection:

B,BS Type INTERNATIONAL SHORE CONNECTION

Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657- 7



OUTER DIAMETER 210MM
INNER DIAMETER ACCORDING TO THE OUTER DIAMETER OF THE PIPE
DIAMETER OF THE BOLT JOINT GARDEN 170MM
FLANGE NOTCHES 4 HOLES WITH A DIAMETER OF 22MM ARE EQUALLY SPACED ON THE DIAMETER OF THE BOLT RING, FROM THE NOTCH TO THE OUTER EDGE OF THE FLANGE, AND THE NOTCH IS 18MM WIDE
FLANGE THICKNESS 16MM
BOLTS AND NUTS M16*4, THE LENGTH IS APPROPRIATE

Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657- 8

According to Article 10 of Annex IV of the International Convention for the Prevention of Pollution (MARPOL), it is usually required that the discharge pipelines on both sides have such international shore connection joints. For ships operating specifically, such as passenger ferries, the discharge pipelines of ships can choose to be equipped with a discharge joint accepted by the competent authority, such as a fast connection joint



CBM1114-1982 Marine Fire International Shore Connection, Bronze Fire International Shore Connection

C Type FIRE FIGHTING CONNECTION

Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657- 9

OUTER DIAMETER 178MM
INNER DIAMETER 64MM
DIAMETER OF THE BOLT JOINT GARDEN 132MM
FLANGE NOTCHES

4 HOLES WITH A DIAMETER OF 19MM ARE EQUALLY SPACED ON THE DIAMETER OF THE BOLT RING, FROM THE NOTCH TO THE OUTER EDGE OF THE FLANGE

FLANGE THICKNESS

AT LEAST 14.5MM

BOLTS AND NUTS

M16*50MM*4 PAIRS



According to the requirements of fire safety system rules, in consideration of corrosion resistance, copper material is used as the interface of Fire hydrant or fire hose on board

Customization For International Shore Connection:



International Shore Connection

Brand Name: FEIHANG

Model Number: A,AS,B,BS-type

Place of Origin: Yangzhou, Jiangsu, China

Certification: Factory certificate, test report, material report

Minimum Order Quantity: 1pcs

Price: Discuss personally

Packaging Details: Export packaging

Delivery Time: 1-2days

Payment Terms: 100% prepaid

Supply Ability: 100pcs/days

Working Pressure: 3.0MPa

Design standards: CB/T3572-2011

Connection Mode: Flange

Application: Domestic Sewage Shore Connection, Oil and Sewage Shore Connection, Fire Protection Shore Connection

Product Name: International Shore Connection



Support and Services For International Shore Connection:

International Shore Connection Technical Support and Service

International Shore Connection provides technical support and service to its customers to ensure that they get the most out of their products. Our support team has expertise in a variety of disciplines, including installation, maintenance, and troubleshooting. We offer phone, email, and online support, as well as on-site service for more complex issues.

We are committed to providing our customers with the highest level of service, and our team is available 24/7 to answer your questions and help with any technical issues. We strive to ensure that the solutions we provide are tailored to your specific needs and that you are completely satisfied with the end result.



Packing and Shipping For International Shore Connection:

Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657- 10Oil Sewage International Shore Connection AS6032 Cb/T3657-94, Oil Sewage International Shore Connection A10032 Cb/T3657- 11

International Shore Connection Packaging and Shipping

At International Shore Connection, we take extra care to ensure your products are securely packaged and shipped promptly. All items are carefully packed with bubble wrap and shipped via a reliable carrier. To ensure your items arrive safely, we use double-walled corrugated cardboard boxes and include a tracking number for every shipment.

We also offer expedited shipping for those in need of their items as soon as possible. We understand the importance of getting your items delivered quickly and safely, and take every measure to ensure that happens.

For any questions about our packaging and shipping policies, please contact us at info@internationalshoreconnection.com.



HOW TO ORDER FOR THE International Shore Connection

INTERNATIONAL SHORE CONNECTION (1).pdf

FAQ For International Shore Connection:

Q1: What is International Shore Connection?
A1: International Shore Connection is a product manufactured by Yangzhou Feihang, China. It comes in A,AS,B,BS-type and is certified with Factory certificate, test report and material report from Yangzhou Feihang. Q2: What is the minimum order quantity?
A2: The minimum order quantity for International Shore Connection is 1pcs. Q3: What is the price of International Shore Connection?
A3: The price of International Shore Connection will be discussed personally. Q4: How will International Shore Connection be packaged?
A4: International Shore Connection will be packaged in export packaging. Q5: How long will it take for International Shore Connection to be delivered?
A5: International Shore Connection will be delivered in 1-2 days.
