Basket Type Marine Can Water Filter Element Sea Chest Ftiler / Filter Element Fot Marine Can Filter

Basket Type Marine Can Water Filter Element Sea Chest Ftiler / Filter Element Fot Marine Can Filter

Marine sea chest filter

Basket sea chest filter

Place of Origin:

Yangzhou, Jiangsu, China

Brand Name:

FEIHANG

Certification:

Factory certificate, test report, material report

Model Number:

FH

Contact Us

Request A Quote
Product Details
Material Thickness:
2-6mm
Body Material:
Stainless Steel
Size:
Processing With Supplied Drawings
Connection:
Bolt, Clamp
Screen Material:
Stainless Steel
Eyehole Diameter:
1-15mm
Application:
Sea Water Strainers
Body Style:
Basket Type
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Discuss personally
Packaging Details
Export packaging
Delivery Time
3-5days
Payment Terms
100% prepaid
Supply Ability
100pcs/days
Product Description

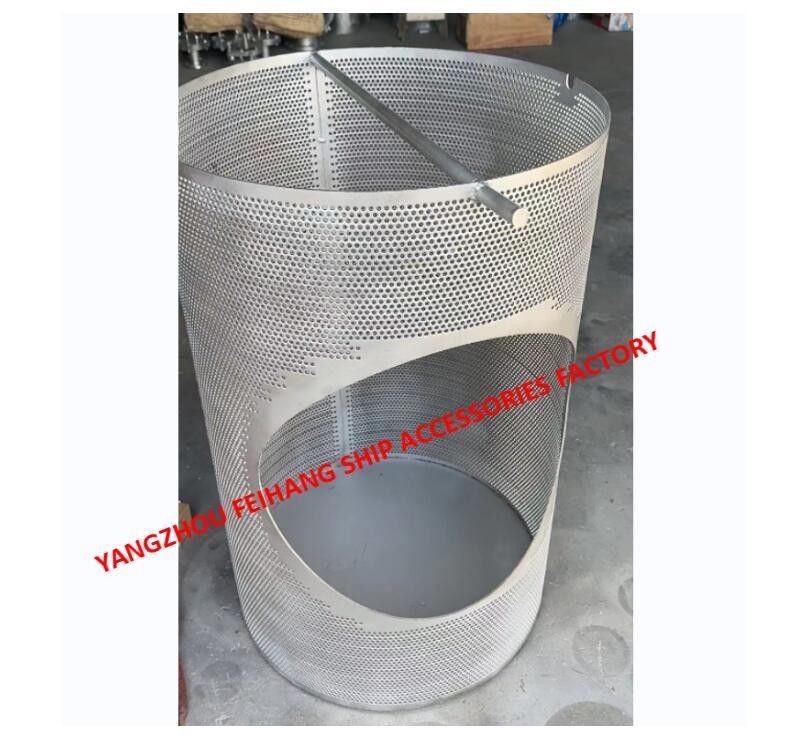

Basket Type Marine Can Water Filter Element Sea Chest Ftiler / Filter Element Fot Marine Can Filter 0

Product Description For Sea Chest Filters:

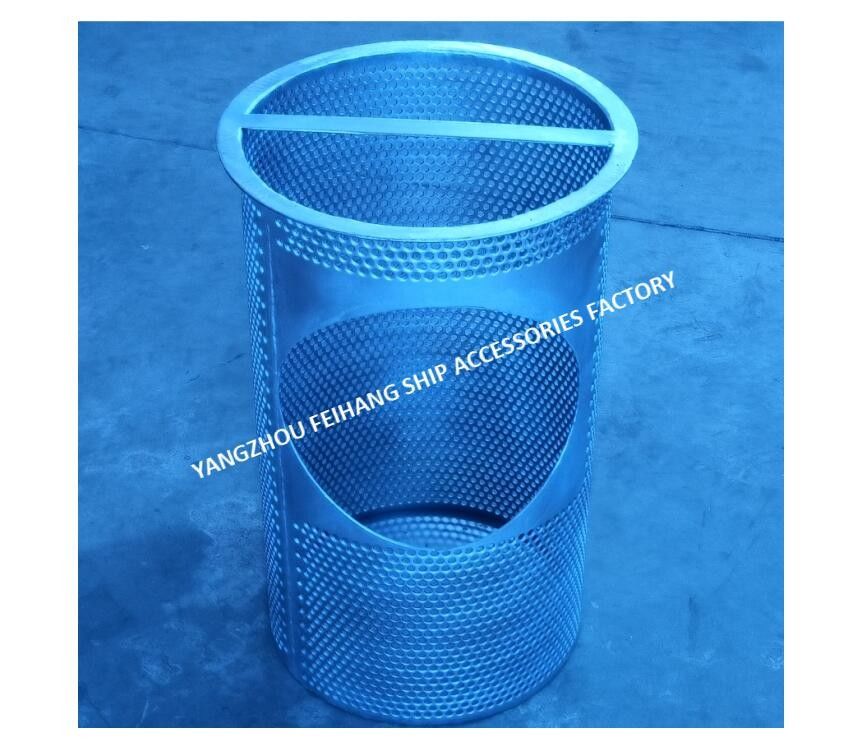

Basket Type Marine Can Water Filter Element Sea Chest Ftiler / Filter Element Fot Marine Can Filter 1

The Sea Chest Element is primarily used in seawater filters to prevent impurities from entering the pump. Its role is to separate solid particles and sludge from the liquid, or to separate water from sand layers. This helps to protect the filter equipment's normal operation. When fluid passes through the filter element's filter screen with a specific size, the impurities are blocked, and only clean fluid is allowed to pass. This allows the liquid to reach a certain level of cleanliness.

The Sea Chest Element consists of a filter plate (filter screen). The size of the filter screen in relation to the pipeline's flow area should be 1.5 to 2 times the flow cross-sectional area.



Features Sea Chest Strainers:

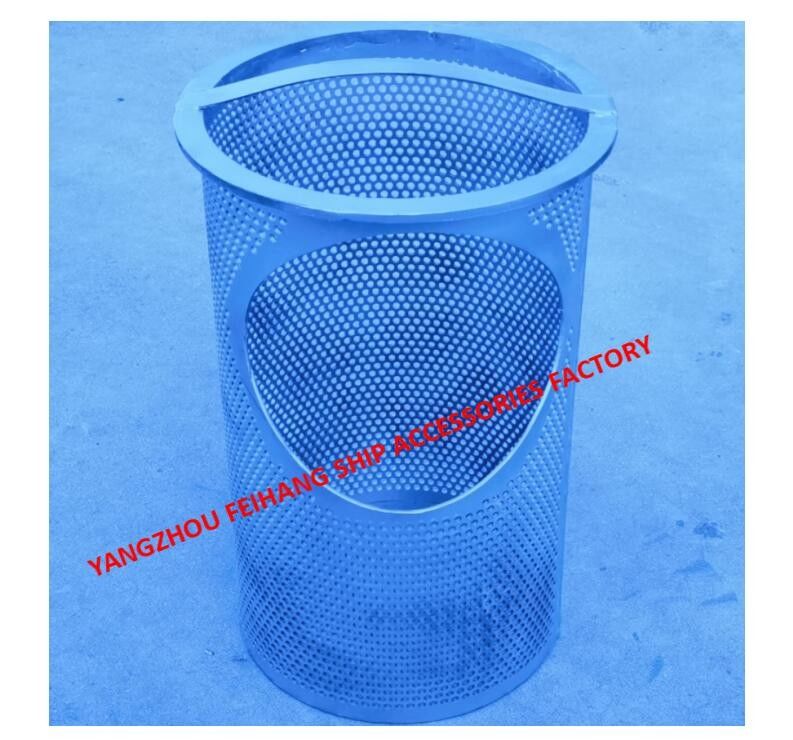

Basket Type Marine Can Water Filter Element Sea Chest Ftiler / Filter Element Fot Marine Can Filter 2

  • Product Name: Sea Chest Strainers
  • Body Style: Basket Type
  • Eyehole diameter: 1-15mm
  • Connection: Bolt, Clamp
  • Screen Material: Stainless Steel
  • Application: Sea Water Strainers
  • Filter Element for Marine Can Water Filter
  • Bottom door filter element
  • Bottom door filter element for marine

Technical Parameters For Sea Chest Filters:

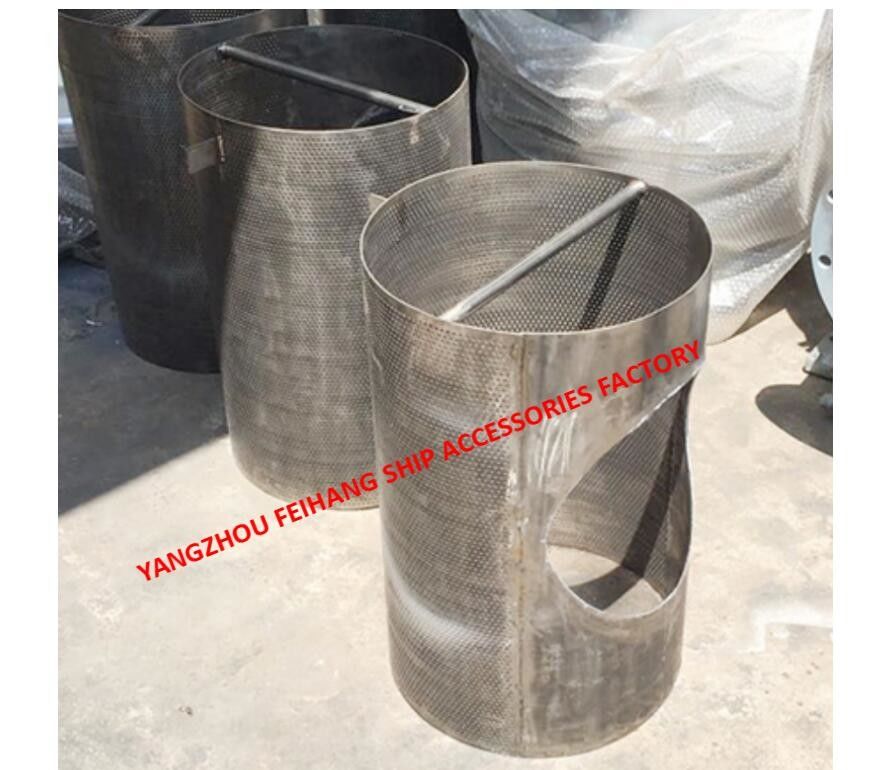

Basket Type Marine Can Water Filter Element Sea Chest Ftiler / Filter Element Fot Marine Can Filter 3

Product Attribute Specification
Body Material Stainless Steel
Application Sea Water Strainers
Connection Bolt, Clamp
Eyehole diameter 1-15mm
Body Style Basket Type
Material Thickness 2-6mm
Size Processing With Supplied Drawings
Screen Material Stainless Steel
Sea Chest Element Yes
Filter basket Yes
Bottom door filter element Yes

Applications For Sea Chest Filters:

Basket Type Marine Can Water Filter Element Sea Chest Ftiler / Filter Element Fot Marine Can Filter 4

The Sea Chest Strainers from FEIHANG are designed for filtration of sea water and other applications. The filter basket is made from stainless steel to ensure durability and maximum filtration efficiency. It features a unique bolt and clamp design for easy installation, and an eyehole diameter of 1-15mm. The Sea Chest Strainers are available in a variety of sizes and come with a Factory certificate, test report, material report. It is best suited for applications such as sea water strainers, sea chest element filter and other filtration applications. It is available in minimum order quantity of 1pcs and comes in export packaging. Delivery time is 3-5 days and payment terms are 100% prepaid. FEIHANG guarantees 100pcs/days supply ability.

Customization:

Customize Service for Sea Chest Strainers

Brand Name: FEIHANG

Model Number: FH

Place of Origin: Yangzhou, Jiangsu, China

Certification: Factory certificate, test report, material report

Minimum Order Quantity: 1pcs

Price: Discuss personally

Packaging Details: Export packaging

Delivery Time: 3-5days

Payment Terms: 100% prepaid

Supply Ability: 100pcs/days

Application: Sea Chest Strainers/Sea Chest Filter/Sea Chest Filter Strainer

Body Style: Basket Type

Eyehole diameter: 1-15mm

Body Material: Stainless Steel

Material Thickness: 2-6mm





HOW TO ORDER FOR THE SEA CHEST STRAINER/FILTER ELEMENT

Measurement method for dimensions:


1. According to the old physical measurement method: select an appropriate time, or during the aviation repair phase, open the top bolt of the seawater filter, and then take out the filter barrel inside the seawater filter. Accurately measure according to the following reference drawings:

Basket Type Marine Can Water Filter Element Sea Chest Ftiler / Filter Element Fot Marine Can Filter 5
2. You can choose according to the specification table of the IMPA material catalog:
Selection of material wall thickness:


In order to reduce the corrosion of the internal filtration components of the seawater filter and reduce our maintenance frequency in the future, we can choose thicker materials to customize this filtration component:
Selection of filtering accuracy:
According to the differences in the usage of each part on the ship, the filtration accuracy of the seawater filter bucket is also different, usually including MESH-2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm:

Basket Type Marine Can Water Filter Element Sea Chest Ftiler / Filter Element Fot Marine Can Filter 6Basket Type Marine Can Water Filter Element Sea Chest Ftiler / Filter Element Fot Marine Can Filter 7Basket Type Marine Can Water Filter Element Sea Chest Ftiler / Filter Element Fot Marine Can Filter 8

Support and Services:

Sea Chest Strainers Technical Support and Service

We offer comprehensive technical support and service for our Sea Chest Strainers. Our technical team is highly experienced and qualified to provide you with the best advice and support possible. We offer installation and maintenance services, as well as troubleshooting and diagnosis.

We provide our customers with detailed user manuals and installation instructions to help them get the most out of their Sea Chest Strainers. We are also available for on-site visits to diagnose potential issues and provide advice on any technical questions you may have.

Our team is available 24/7 to answer any questions or concerns you may have. We are dedicated to providing the best customer service and technical support possible. If you have any questions or would like to schedule a service visit, please do not hesitate to contact us.

Packing and Shipping For Main Sea Chest Filter:

Basket Type Marine Can Water Filter Element Sea Chest Ftiler / Filter Element Fot Marine Can Filter 9

Packaging and Shipping for Sea Chest Strainers

Sea chest strainers are carefully packaged in sealed boxes to ensure they reach their destination in perfect condition. The boxes are shock-resistant and designed to protect the strainers from any damage that may be caused during shipping.

We offer both domestic and international shipping. We are able to ship our strainers to most countries around the world. For international orders, customers should allow an additional 5-10 days for delivery. We also offer expedited shipping for customers who need their order quickly.

We take great care in ensuring that our strainers are securely packaged and shipped in a timely manner. If you have any questions about our packaging and shipping policies, please don't hesitate to contact us.

FAQ:

Q1: What is the brand name of the Sea Chest Strainers?
A1: The brand name of the Sea Chest Strainers is FEIHANG.
Q2: What is the model number of the Sea Chest Strainers?
A2: The model number of the Sea Chest Strainers is FH.
Q3: Where is the Sea Chest Strainers made?
A3: The Sea Chest Strainers are made in Yangzhou, Jiangsu, China.
Q4: What certifications does the Sea Chest Strainers have?
A4: The Sea Chest Strainers have Factory certificate, test report, material report.
Q5: How many Sea Chest Strainers can you supply per day?
A5: We can supply 100pcs of Sea Chest Strainers per day.
