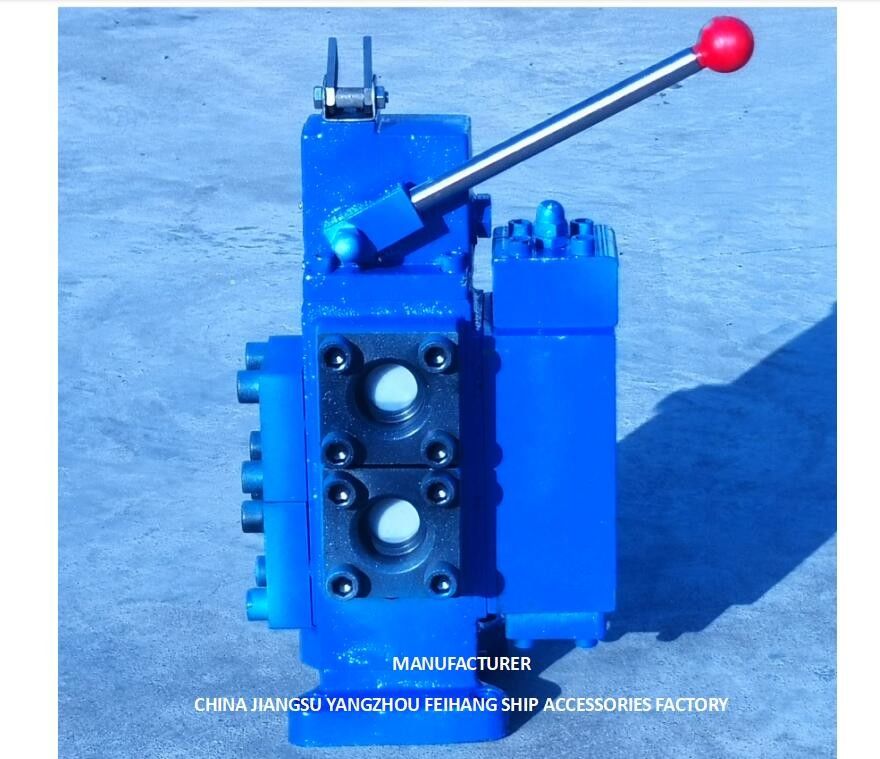

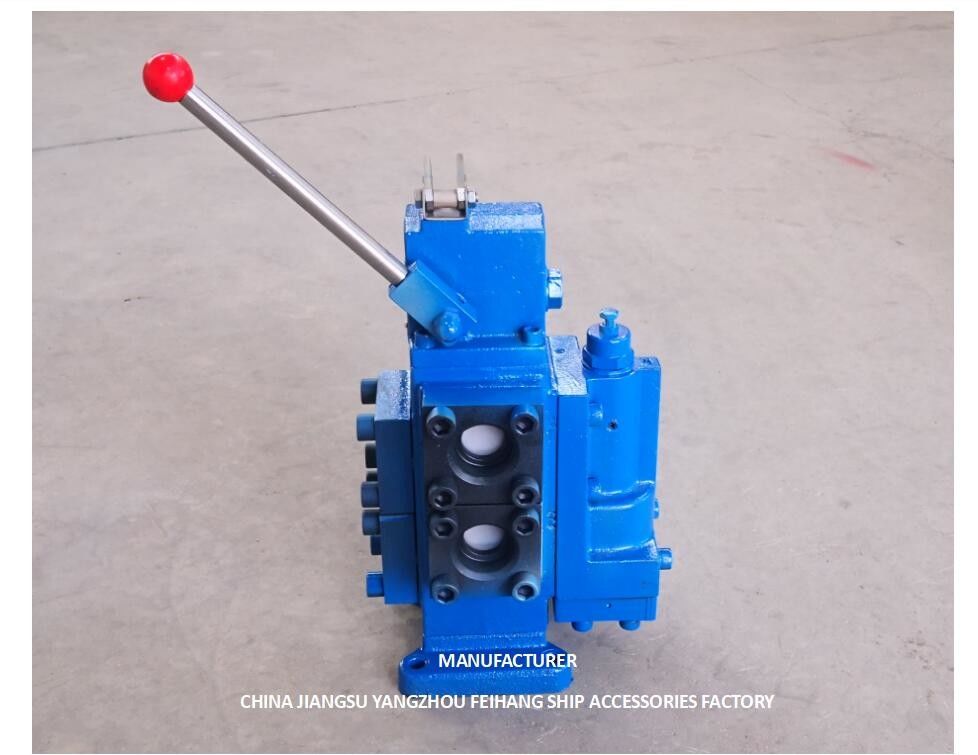

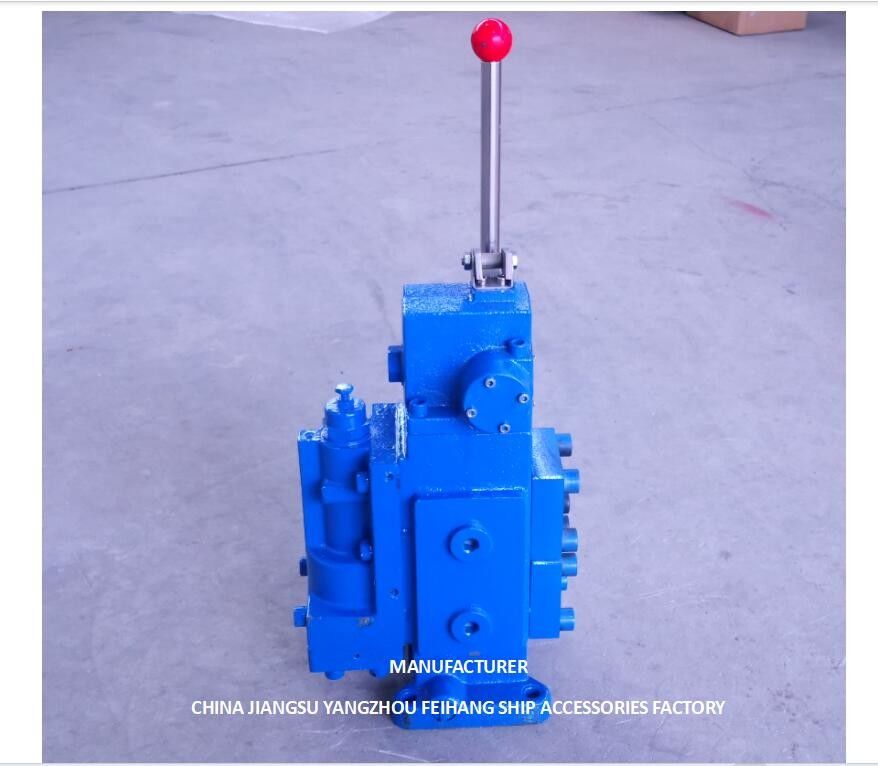

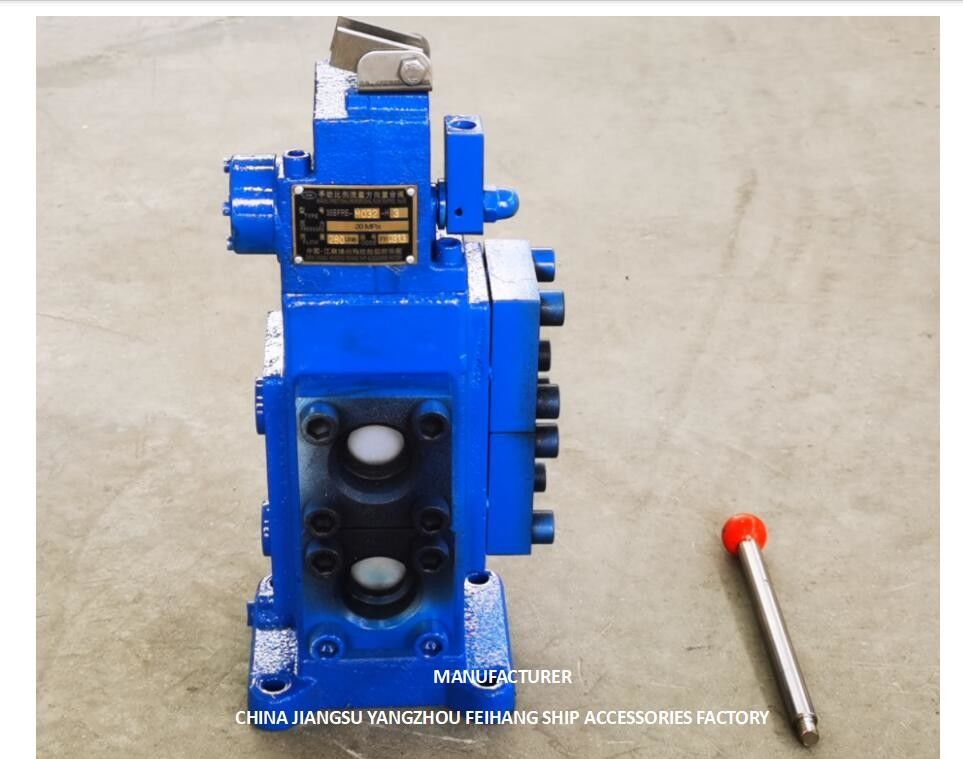

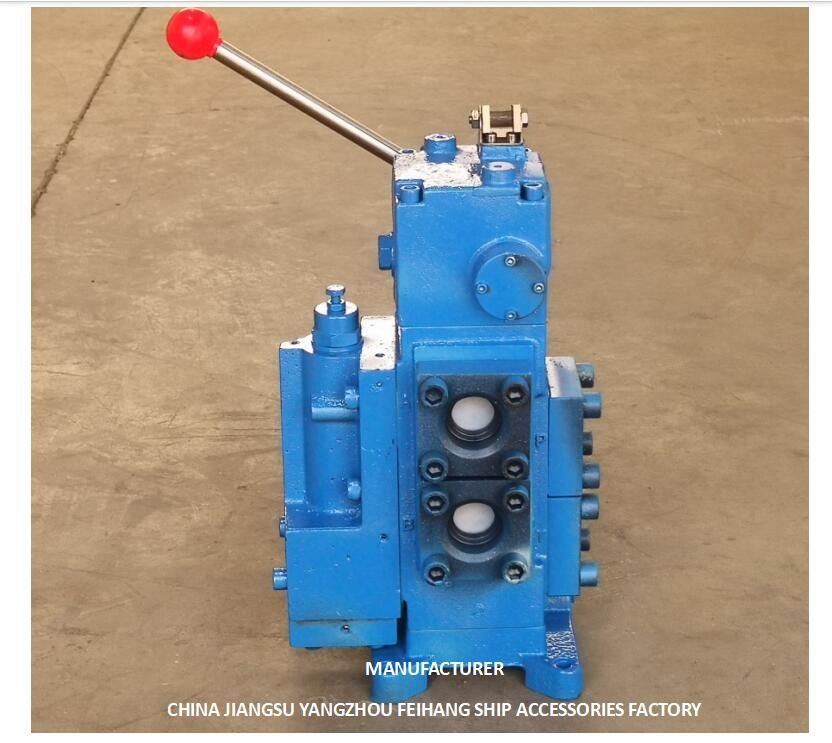

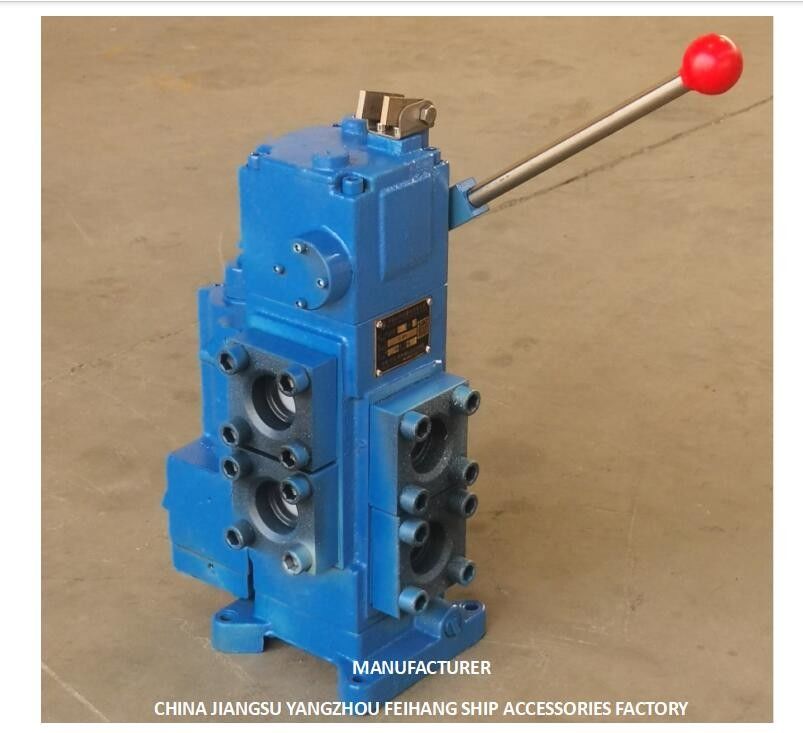

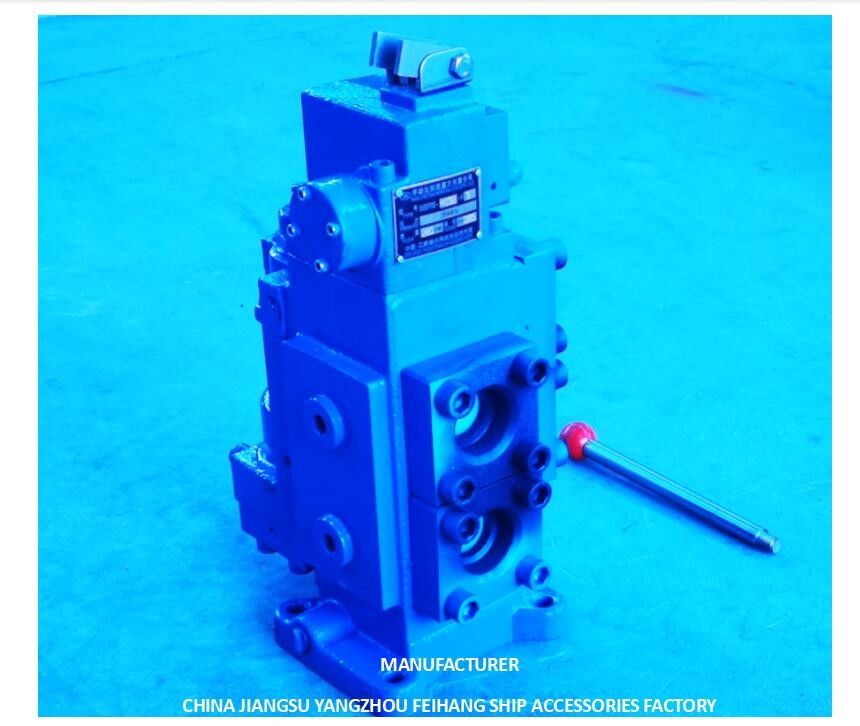

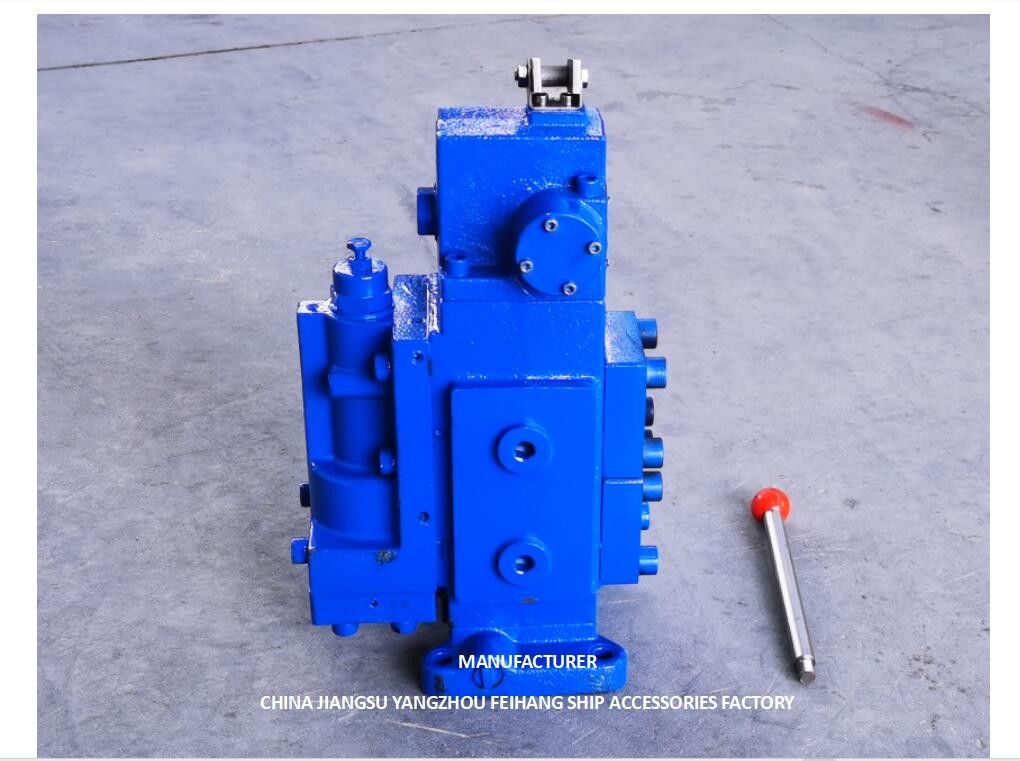

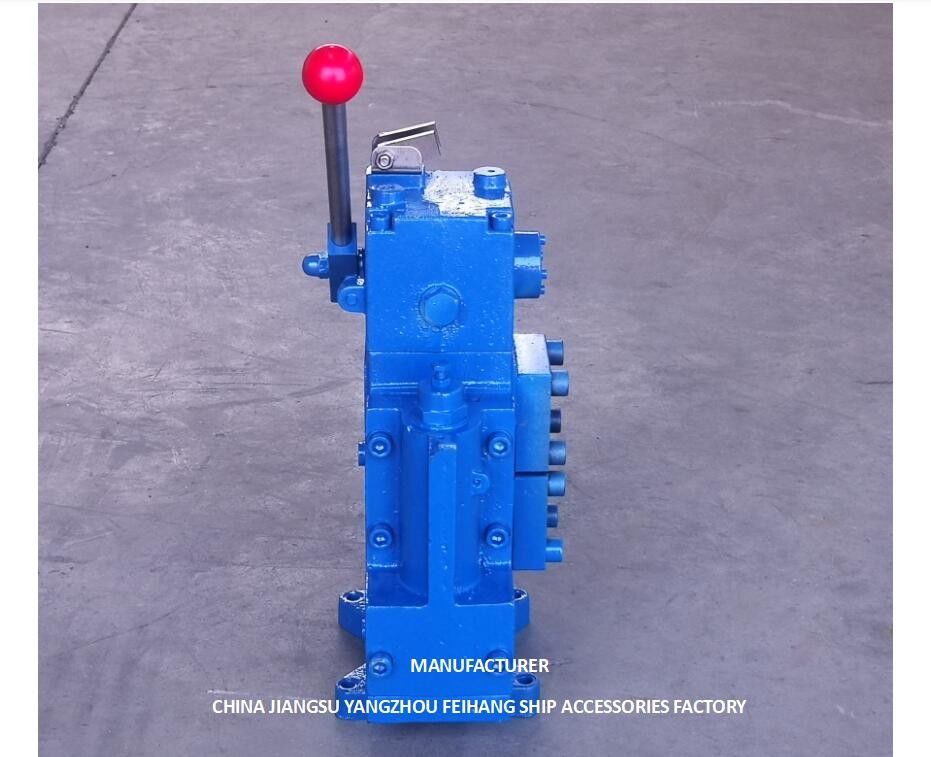

35sfre-My32-H3 PC Control Valves For Series Hydraulic Circuits

35sfre-My32-H3 PC Control Valves For Series Hydraulic Circuits

DN32 hydraulic valve block

PC Control hydraulic valve block

21MPA hydraulic control block

Place of Origin:

Yangzhou, Jiangsu, China

Brand Name:

FeiHang

Certification:

Factory certificate,Pressure test report

Model Number:

35SFRE-MO32-H3

Contact Us

Request A Quote
Product Details
DESIGN STANDARDS:
CB
MODEL:
35SFRE-MO32-H3
MATERIAL:
CAST IRON
NOMINAL DIAMETER:
1 1/4"-DN32
NOMINAL PRESSURE:
21MPA
FLOW:
280L/MIN
MEDIAN FUNCTION:
MO,MY,OY
CONTROL METHOD:
MANUAL,REMOTE
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
USD1000-1300/PCS
Packaging Details
Export Wooden Box
Delivery Time
1-2days
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
100 pcs day
Product Description

CONTROL VALVE WINDLASS WINCH CONTROL VALVE MANUAL PROPORTIONAL FLOW CONTROL BLOCK FOR SHIPS 35SFRE-MO32-H3



<35SFRE-MO32-H3>TECHNICAL PARAMETER TABLE



35sfre-My32-H3 PC Control Valves For Series Hydraulic Circuits 035sfre-My32-H3 PC Control Valves For Series Hydraulic Circuits 1



Model

Nominal diameter

(mm)

Flow

(L/min)

Pressure

(MPA)

Safety valve pressure regulation

(MPA)

Handle control force(N) Mid-position spool valve function
35SFRE-MO32-H3 32 280

21

5~25

≤40



MO-type









<35SFRE-OY32B-H3>TECHNICAL PARAMETER TABLE

35sfre-My32-H3 PC Control Valves For Series Hydraulic Circuits 2

35sfre-My32-H3 PC Control Valves For Series Hydraulic Circuits 3

Model

Nominal diameter

(mm)

Flow

(L/min)

Pressure

(MPA)

Safety valve pressure regulation

(MPA)

Handle control force(N) Mid-position spool valve function
35SFRE-OY32B-H3 32 280 21 5~25 ≤40



OY-type









The performance characteristics of the 35SFRE manual proportional flow directional valve mainly include the following:

35sfre-My32-H3 PC Control Valves For Series Hydraulic Circuits 435sfre-My32-H3 PC Control Valves For Series Hydraulic Circuits 5


1. It has multifunctional features such as commutation, stepless speed regulation, unloading, and overload protection, with a simple structure and reliable operation.
2. Its manual regulation is smooth and sensitive, with synchronous commutation and stepless speed change.
3. This manual proportional flow composite valve Mo-type center function always matches the load power of the motor (or oil cylinder), which has a more prominent energy-saving effect and is suitable for single valve or multi valve series connection.









At the same time, we can also customize other mid range functions according to the customer's requirements:



35sfre-My32-H3 PC Control Valves For Series Hydraulic Circuits 6


Like the principle of a general overflow valve, when the oil motor is running and the load pressure is low, the cone valve is in a closed state due to the action of spring force, and the oil motor operates normally. When the load pressure increases and exceeds the spring force pressed on the cone valve, the cone valve opens, and high-pressure oil flows into port O from port P to protect the oil motor.



Regarding packaging: We all use standard international export packaging

35sfre-My32-H3 PC Control Valves For Series Hydraulic Circuits 7

35sfre-My32-H3 PC Control Valves For Series Hydraulic Circuits 8





Use and maintenance of 35SFRE TYPE manual proportional flow composite valve:


When we need to replace this 35SRRE manual proportional valve, we encounter that the product identification nameplate has corroded. We can accurately and quickly determine through the following schematic diagram:

35sfre-My32-H3 PC Control Valves For Series Hydraulic Circuits 9





If you are a new shipbuilding company and are installing a manual proportional flow composite valve for the anchor or steering gear, you can choose the corresponding model based on the designed flow rate (the selection table is as follows)

WINCH CONTROL BLOCK CONTROL VALVE WINDLASS.pdf
