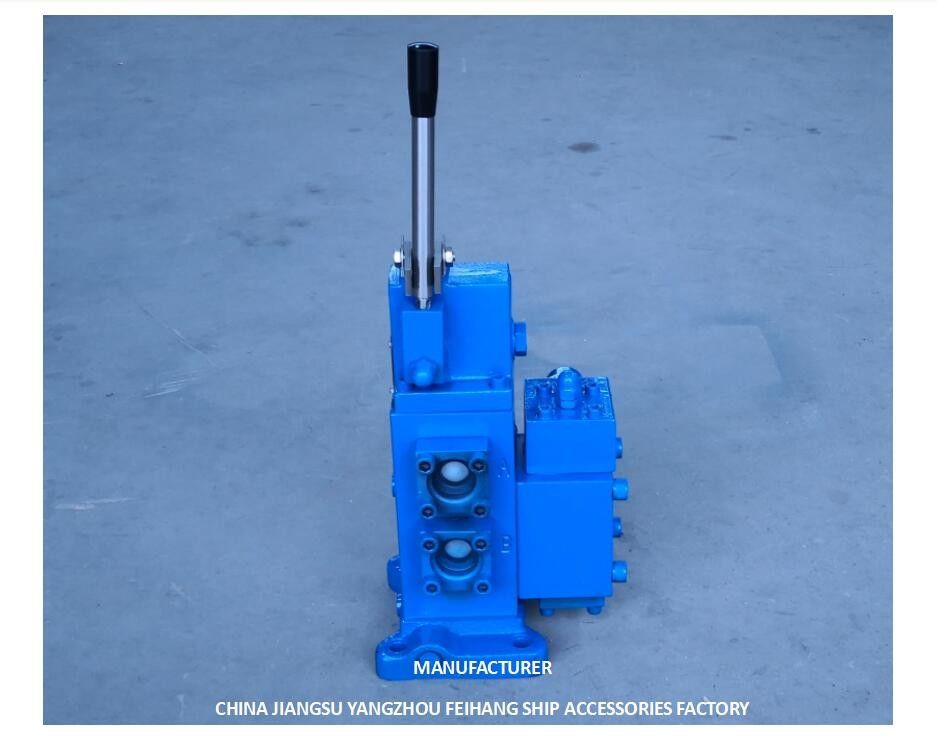

35sfre-Mo20-H3 Winch Control Valve Manual Proportional Flow Control Valves For Ships Winch Control Block

35sfre-Mo20-H3 Winch Control Valve Manual Proportional Flow Control Valves For Ships Winch Control Block

Winch Control Valve Manual

100L/MIN Winch Control Valve

21MPA hydraulic proportional flow control valve

Place of Origin:

Yangzhou, Jiangsu, China

Brand Name:

FeiHang

Certification:

Factory certificate,Pressure test report

Model Number:

35SFRE-MO20-H3

Contact Us

Request A Quote
Product Details
DESIGN STANDARDS:
CB
MODEL:
35SFRE-MO20-H3
MATERIAL:
CAST IRON
NOMINAL DIAMETER:
3/4"-DN20
NOMINAL PRESSURE:
21MPA
FLOW:
100L/MIN
MEDIAN FUNCTION:
MO,MY,OY
CONTROL METHOD:
MANUAL,REMOTE
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
USD1000-1300/PCS
Packaging Details
Export Wooden Box
Delivery Time
1-2days
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
100 pcs day
Product Description

35SFRE-MO20-H3 WINCH CONTROL VALVE MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS WINCH CONTROL BLOCK



<35SFRE-MO20-H3>TECHNICAL PARAMETER TABLE



35sfre-Mo20-H3 Winch Control Valve Manual Proportional Flow Control Valves For Ships Winch Control Block 035sfre-Mo20-H3 Winch Control Valve Manual Proportional Flow Control Valves For Ships Winch Control Block 1



Model

Nominal diameter

(mm)

Flow

(L/min)

Pressure

(MPA)

Safety valve pressure regulation

(MPA)

Handle control force(N) Mid-position spool valve function
35SFRE-MO20-H3 20 100

21

5~25

≤40



MO-type









The performance characteristics of the 35SFRE manual proportional flow directional valve mainly include the following:



  35sfre-Mo20-H3 Winch Control Valve Manual Proportional Flow Control Valves For Ships Winch Control Block 235sfre-Mo20-H3 Winch Control Valve Manual Proportional Flow Control Valves For Ships Winch Control Block 3
1. It has multifunctional features such as commutation, stepless speed regulation, unloading, and overload protection, with a simple structure and reliable operation.
2. Its manual regulation is smooth and sensitive, with synchronous commutation and stepless speed change.
3. This manual proportional flow composite valve M-type center function always matches the load power of the motor (or oil cylinder), which has a more prominent energy-saving effect and is suitable for single valve or multi valve series connection.









At the same time, we can also customize other mid range functions according to the customer's requirements:



35sfre-Mo20-H3 Winch Control Valve Manual Proportional Flow Control Valves For Ships Winch Control Block 4


Like the principle of a general overflow valve, when the oil motor is running and the load pressure is low, the cone valve is in a closed state due to the action of spring force, and the oil motor operates normally. When the load pressure increases and exceeds the spring force pressed on the cone valve, the cone valve opens, and high-pressure oil flows into port O from port P to protect the oil motor.



Regarding packaging: We all use standard international export packaging

35sfre-Mo20-H3 Winch Control Valve Manual Proportional Flow Control Valves For Ships Winch Control Block 5





Use and maintenance of 35SFRE TYPE manual proportional flow composite valve:


When we need to replace this 35SRRE manual proportional valve, we encounter that the product identification nameplate has corroded. We can accurately and quickly determine through the following schematic diagram:

35sfre-Mo20-H3 Winch Control Valve Manual Proportional Flow Control Valves For Ships Winch Control Block 6





If you are a new shipbuilding company and are installing a manual proportional flow composite valve for the anchor or steering gear, you can choose the corresponding model based on the designed flow rate (the selection table is as follows)

WINCH CONTROL BLOCK CONTROL VALVE WINDLASS.pdf





CHINA JIANGSU YANGZHOU FEIHANG SHIP ACCESSORIES FACTORY

COMPETITIVE ADVANTAGE



1. Factory direct sale, competitive price.



2. Customized Service: We can customize, to customers drawings for processing. We are flexible and capable Supplier.



3. Genuine Product with Excellent Quality: Our Product are strictly complied with China Compulsory Certification. 100% guarantee test before delivery.



4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.



5. Delivery Time: after receiving the payment within 24-72 hours to Timely arrange raw materials, processing, production, and timely delivery.
