CSBF-H-G40 MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS

CSBF-H-G40 MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS

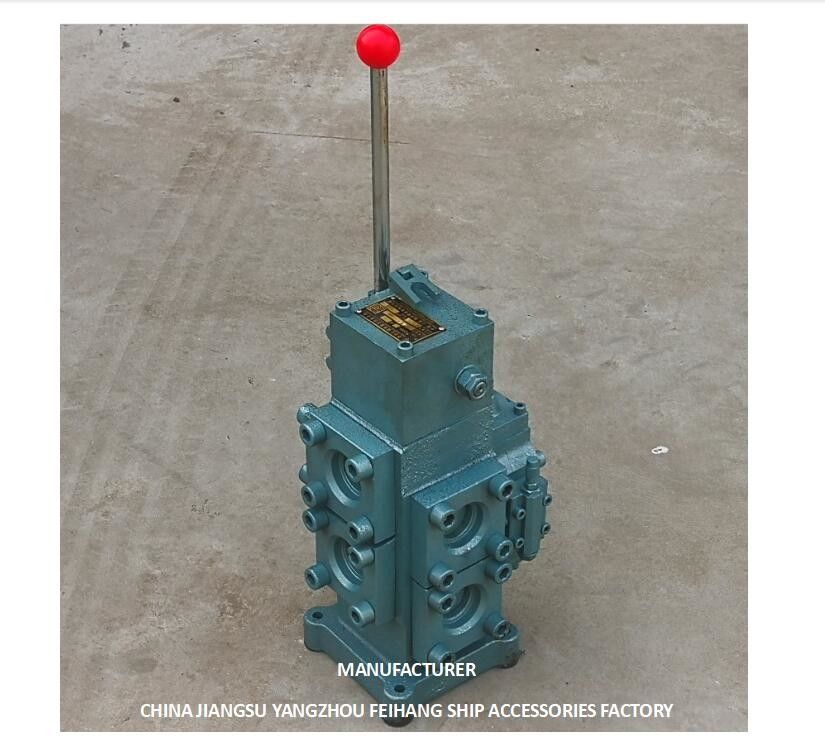

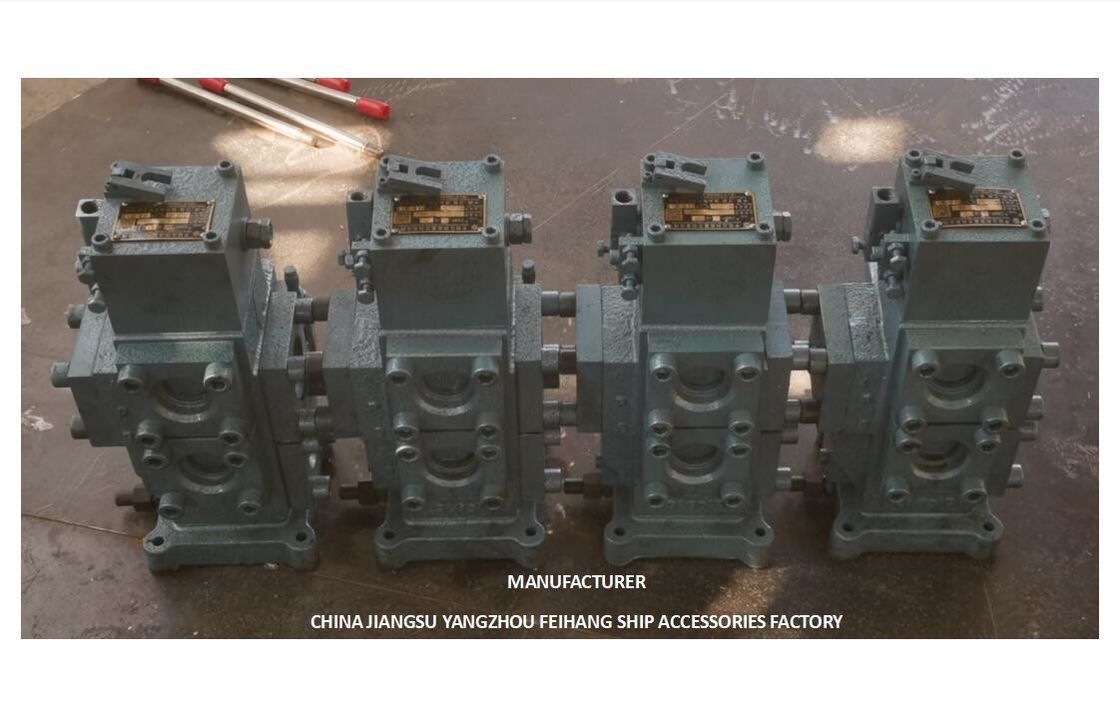

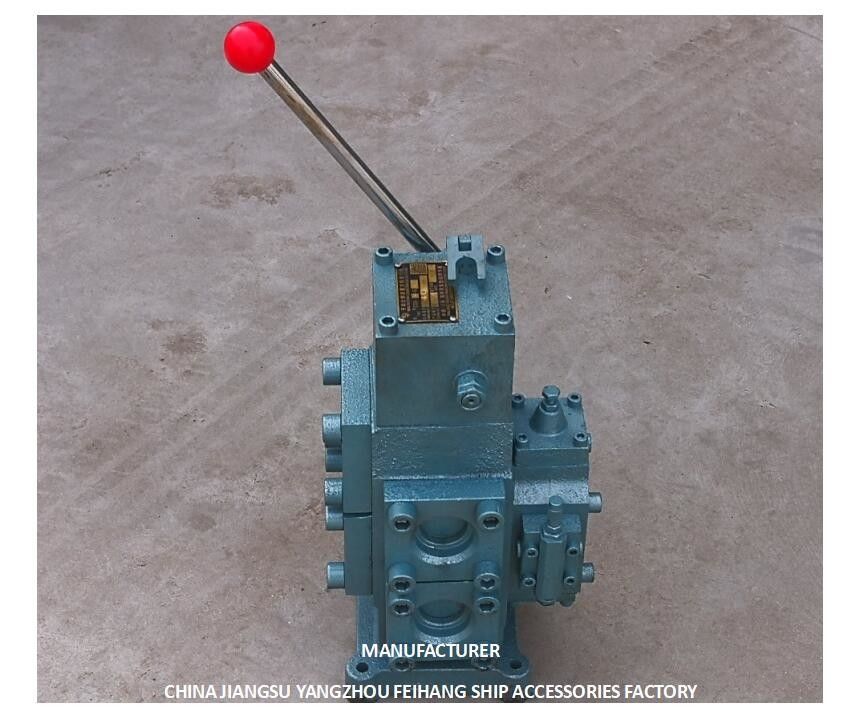

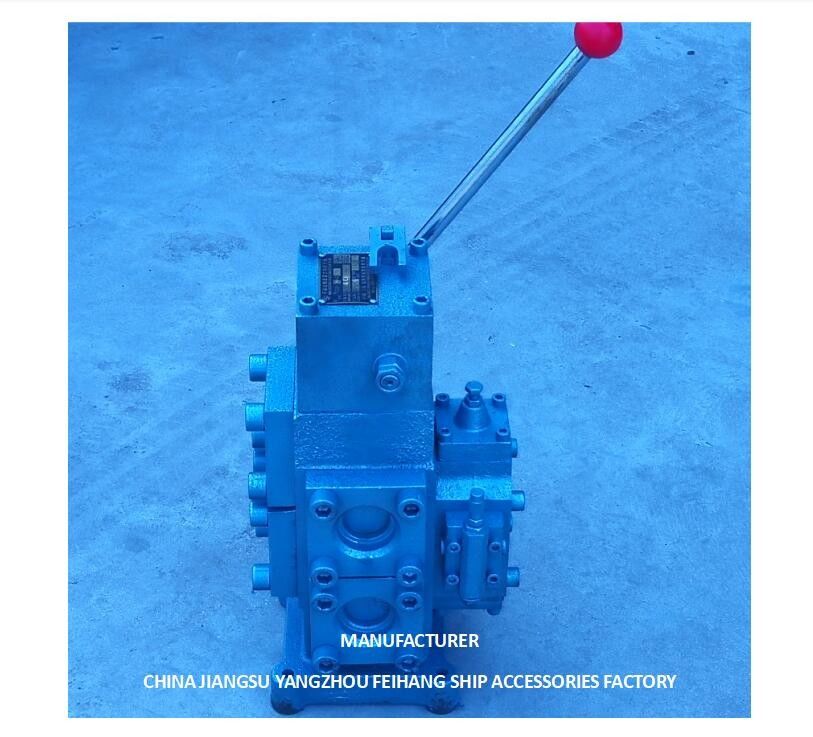

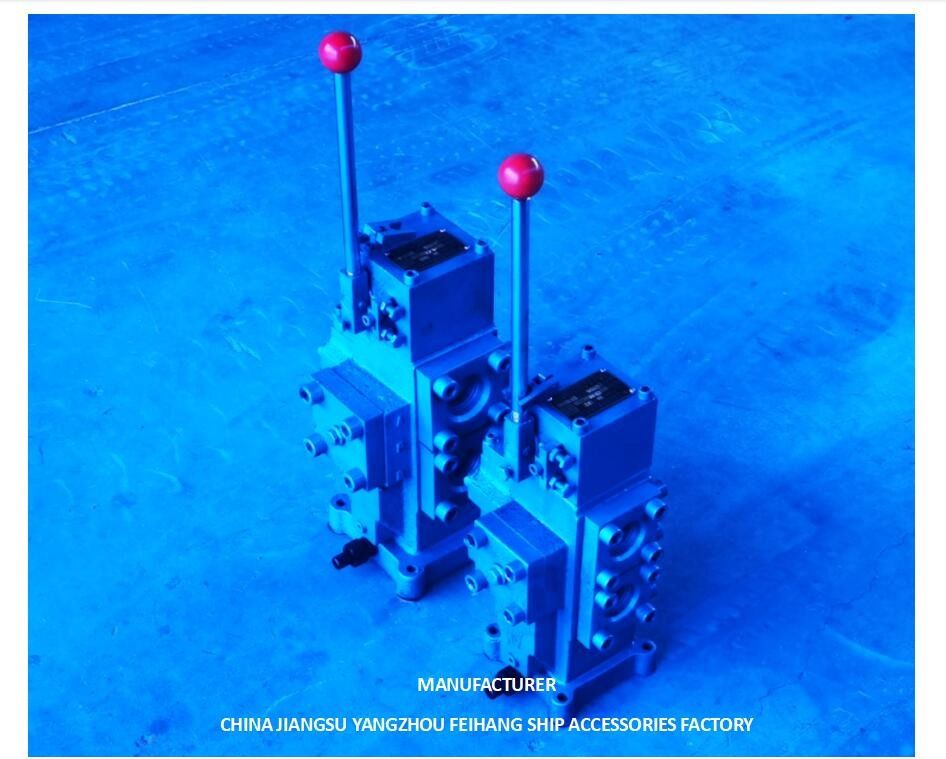

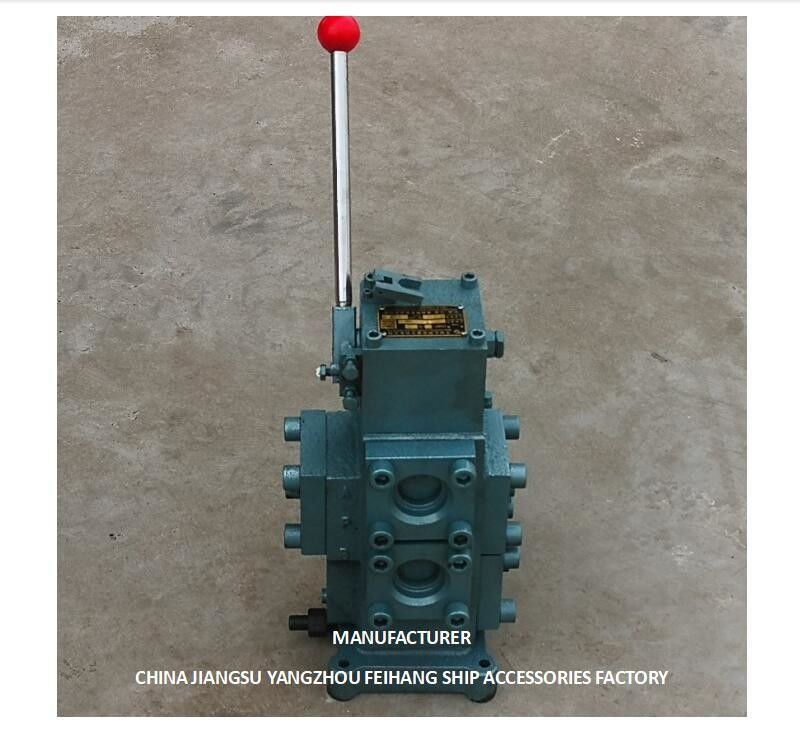

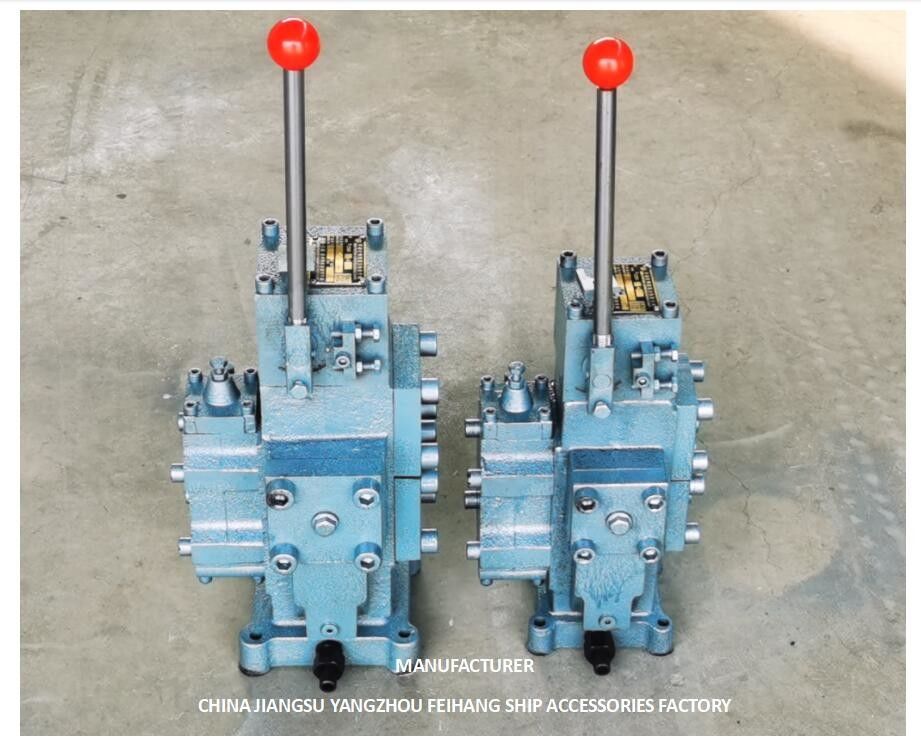

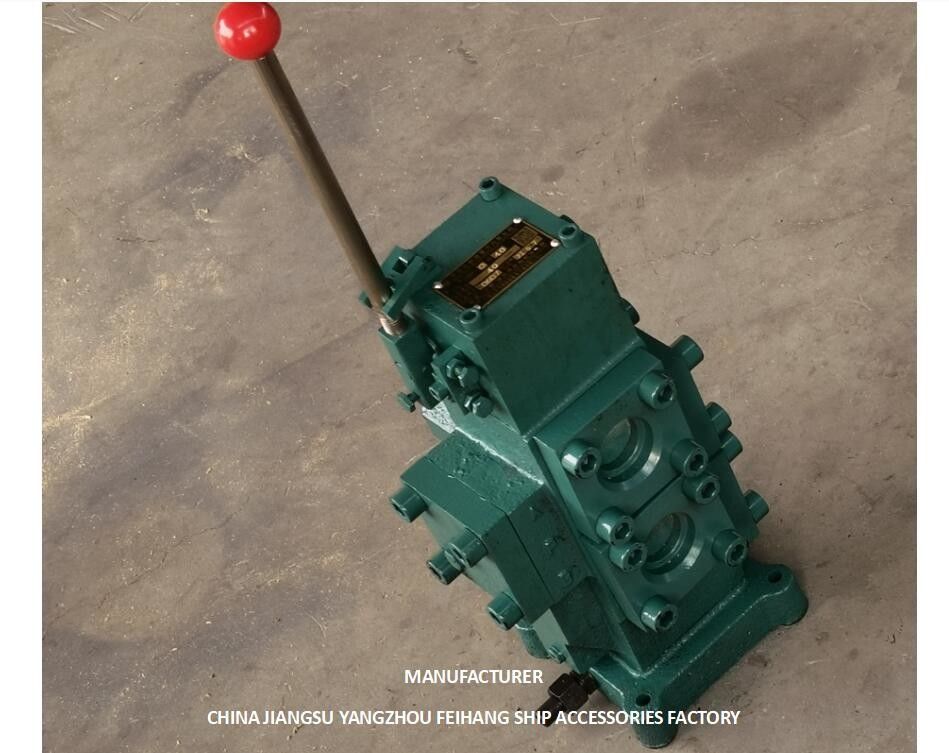

Csbf-H-G40 Hydraulic Control Valve Block

450L/MIN Hydraulic Control Valve Block

Ships manual hydraulic control valve

Place of Origin:

Yangzhou, Jiangsu, China

Brand Name:

FeiHang

Certification:

Factory certificate,Pressure test report

Model Number:

CSBF-G40

Contact Us

Request A Quote
Product Details
DESIGN STANDARDS:
CB
MODEL:
CSBF-G40
MATERIAL:
CAST IRON
NOMINAL DIAMETER:
1 1/2"-DN40
NOMINAL PRESSURE:
25MPA
FLOW:
450L/MIN
MEDIAN FUNCTION:
M,H,O,Y-TYPE
CONTROL METHOD:
MANUAL,REMOTE
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
USD2000-2500/PCS
Packaging Details
Export Wooden Box
Delivery Time
1-2days
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
100 pcs day
Product Description

CSBF-H-G40 MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS



<CSBF-M--G40>TECHNICAL PARAMETER TABLE

CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 0



CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 1





Model

Nominal diameter

(mm)

Flow

(L/min)

Pressure

(MPA)

Safety valve pressure regulation

(MPA)

Handle control force(N) Mid-position spool valve function
CSBF-G40 40 450

25

5~25

≤40



M-type







<CSBF-Y-G40>TECHNICAL PARAMETER TABLE

CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 2CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 3





Model

Nominal diameter

(mm)

Flow

(L/min)

Pressure

(MPA)

Safety valve pressure regulation

(MPA)

Handle control force(N) Mid-position spool valve function
CSBF-G40 40 450 25 5~25 ≤40



Y-type











<CSBF-O-G40>TECHNICAL PARAMETER TABLE



CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 4CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 5



Model

Nominal diameter

(mm)

Flow

(L/min)

Pressure

(MPA)

Safety valve pressure regulation

(MPA)

Handle control force(N) Mid-position spool valve function
CSBF-G40 40 450 25 5~25 ≤40



O-type







The principle of pressure compensation mechanism for marine manual proportional flow composite valve CSBF-G32:

CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 6CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 7
The oil in the motor pipeline flows from the inlet port (P port) of the manual proportional valve to the load (A or B port) through the throttle port of the main valve core. At the same time, the lower part of the diverter valve core also receives a force that pushes the valve core upwards. The magnitude of this force is P1A (A is the cross-sectional area of the valve core). The pressure P1 decreases to P2 due to passing through the throttle port, and P2 acts on the upper part of the valve core to push the valve core downwards, In addition, the action of the spring causes the valve core to receive a downward pushing force, so the downward pushing force is P2A+F (F is the spring force). If P2A+F>P1A is established, the valve core is pushed downwards, causing the throttle surface of the diverter valve to be closed, and all incoming flow is directed to the load through the throttle port of the main valve core. When the flow into the P port increases, P2A+F is less than P1A. At this time, the valve core moves upwards and the throttle surface opens, causing a large amount of flow to flow out of the O port, reducing the flow through the throttle port until F/A=P1 P2, and the valve core is in a stable state. If the load pressure increases, and F/A>P1 P2, the valve core is pushed downwards, reducing the opening of the flow surface, and P1 also increases accordingly. Until F/A=P1 P2, the valve core is in a stable state again. If the load pressure decreases, and F/A is less than P1 P2, the valve core is pushed upwards, increasing the opening of the throttle surface, and P1 decreases accordingly until F/A=P1 P2, and the valve core is in a stable state again. Therefore, regardless of how the inlet and outlet oil pressure changes, the pressure difference P1-P2 remains constant, which means that the flow rate when passing through the throttle is also constant. Therefore, the flow rate is determined by its flow area and is not related to the change in load pressure.



The direction switching and throttling principle of the main valve core of the CSBF-G32manual proportional flow direction composite valve (taking the M-type as an example):

CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 8
When the handle is in the middle position, each oil port (A, B ports) is closed, and the oil discharged from the oil pump returns from port P to port O, causing the oil motor to stop.
The handle is on the right side, and the main valve core moves upwards. The oil flowing in from port P flows through the throttle port to port A, and then flows out from port A to drive the oil motor to rotate. The return oil of the oil motor returns from port B to port O. At this time, the handle is used to adjust the opening of the throttle port by adjusting the tilt angle of the main valve core to different positions, in order to achieve the speed regulation of the oil motor. On the contrary, when the handle is on the left and the oil flows from P-B to A-O, the results are completely similar, but the oil motor turns in the opposite direction.



At the same time, we can also customize other mid range functions according to the customer's requirements:

CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 9CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 10CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 11

The overflow principle of the manual proportional flow composite valve CSBF-G40for the anchor machine (safety valve part):

CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 12CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 13
Like the principle of a general overflow valve, when the oil motor is running and the load pressure is low, the cone valve is in a closed state due to the action of spring force, and the oil motor operates normally. When the load pressure increases and exceeds the spring force pressed on the cone valve, the cone valve opens, and high-pressure oil flows into port O from port P to protect the oil motor.



Regarding packaging: We all use standard international export packaging

CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 14





Use and maintenance of CSBF TYPE manual proportional flow composite valve:

CSBF-H-G40  MANUAL PROPORTIONAL FLOW CONTROL VALVES FOR SHIPS CONTROL VALVE WINDLASS 15
When we need to replace this CSBF manual proportional valve, we encounter that the product identification nameplate has corroded. We can accurately and quickly determine through the following schematic diagram:
