MARINE CAN WATER FILTERS JIS F7121-CAN WATER STRAINERS BODY CAST IRON FILTER CARTRIDGE STAINLESS STEEL

MARINE CAN WATER FILTERS JIS F7121 5K-50-450A
CAN WATER STRAINERS JIS F7121 5K-50-450A

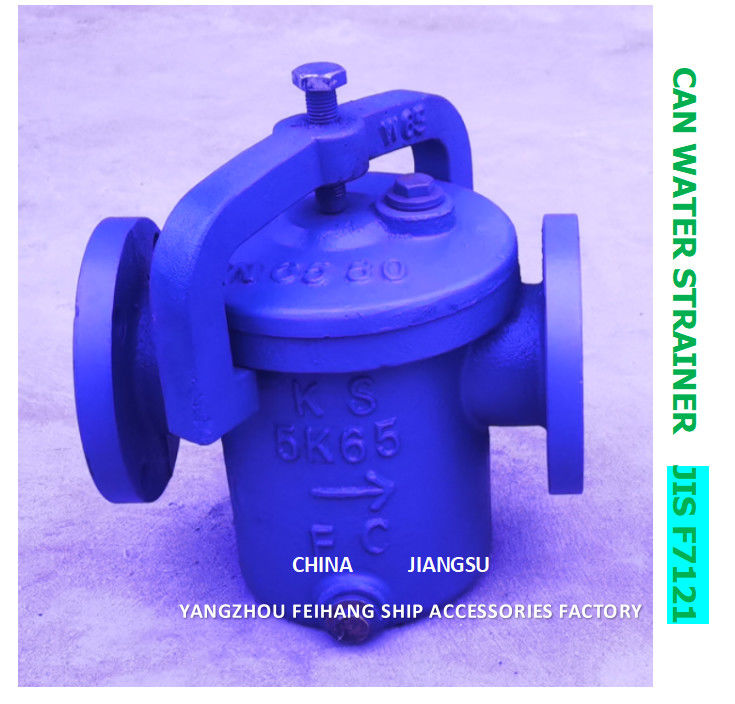

HERE, WE GENERALLY INTRODUCE A MARINE CYLINDRICAL SEAWATER FILTER (CAN WATER STRAINERS) DESIGNED ACCORDING TO THE JIS F7121 STANDARD:

IT IS DEFINED AS:

MADE OF CASTING STEEL AND USED FOR WATER PIPELINES IN SHIP. COMPLETE WITH INNER STRAINER. CONNECTION FLANGE SIZE ARE CONFORM TO JIS 5KGF/10KGFCM2 STANDARD.

THIS JIS F7121 MARINE CYLINDRICAL SEAWATER FILTER (CAN WATER STRAINERS) IS MADE OF CAST IRON AND IS MAINLY USED FOR MARINE SEAWATER PIPELINES. THIS MARINE CYLINDRICAL WATER FILTER (MARINE CAN WATER FILTERS
) WITH AN INTERNAL FILTER BARREL (SEA CHEST FILTER). THE CONNECTING FLANGE SIZE OF THE INLET AND OUTLET PIPES COMPLIES WITH JIS 5KGF/10KGFCM2 STANDARD.

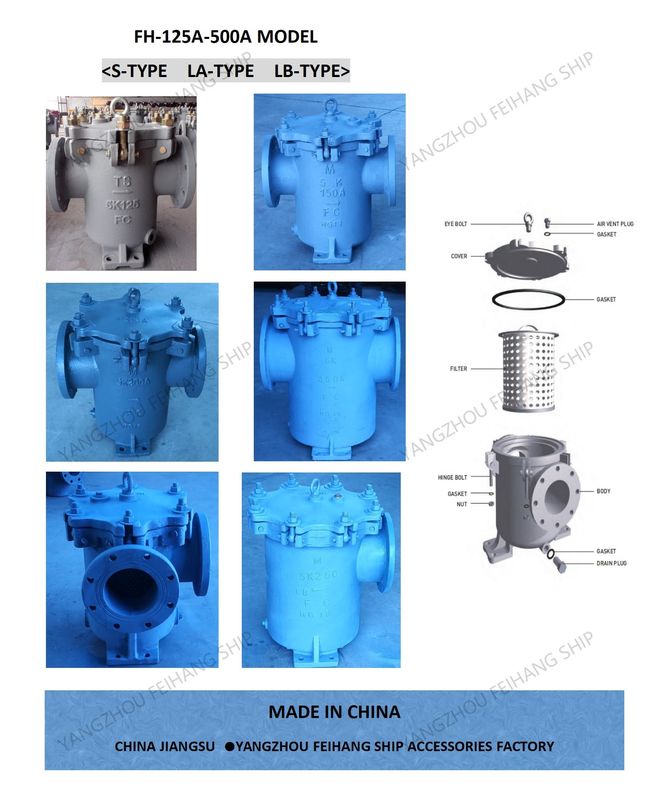

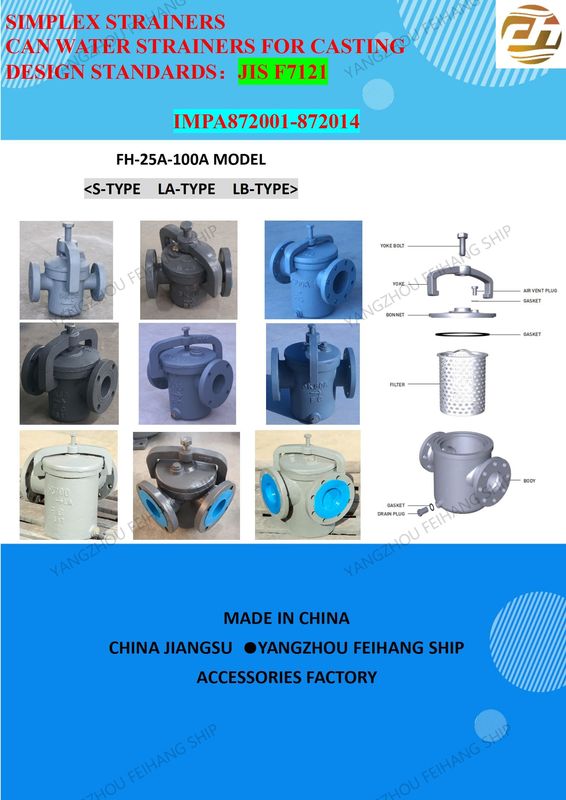

SECONDLY, LET'S TAKE A LOOK AT THE COMPONENTS AND MAIN PARTS MATERIALS OF THIS (MARINE CAN WATER FILTERS/CAN WATER STRAINERS) MARINE CYLINDRICAL SEAWATER FILTER FROM ITS PRODUCTION PROCESS MODEL DIAGRAM:

AS CAN BE SEEN FROM THE ABOVE PICTURE, THE SHELL OF THIS MARINE CYLINDRICAL WATER FILTER IS COMPLETED BY SAND CASTING. THE SHELL MATERIAL IS GRAY CAST IRON (CODE FC200), AND THE FILTER BARREL OF THE PERFORATED PLATE TYPE IS INSTALLED INSIDE TO ACHIEVE FILTRATION. FUNCTION.
